Krytar, 2618

You are here: RF Component » Directional coupler

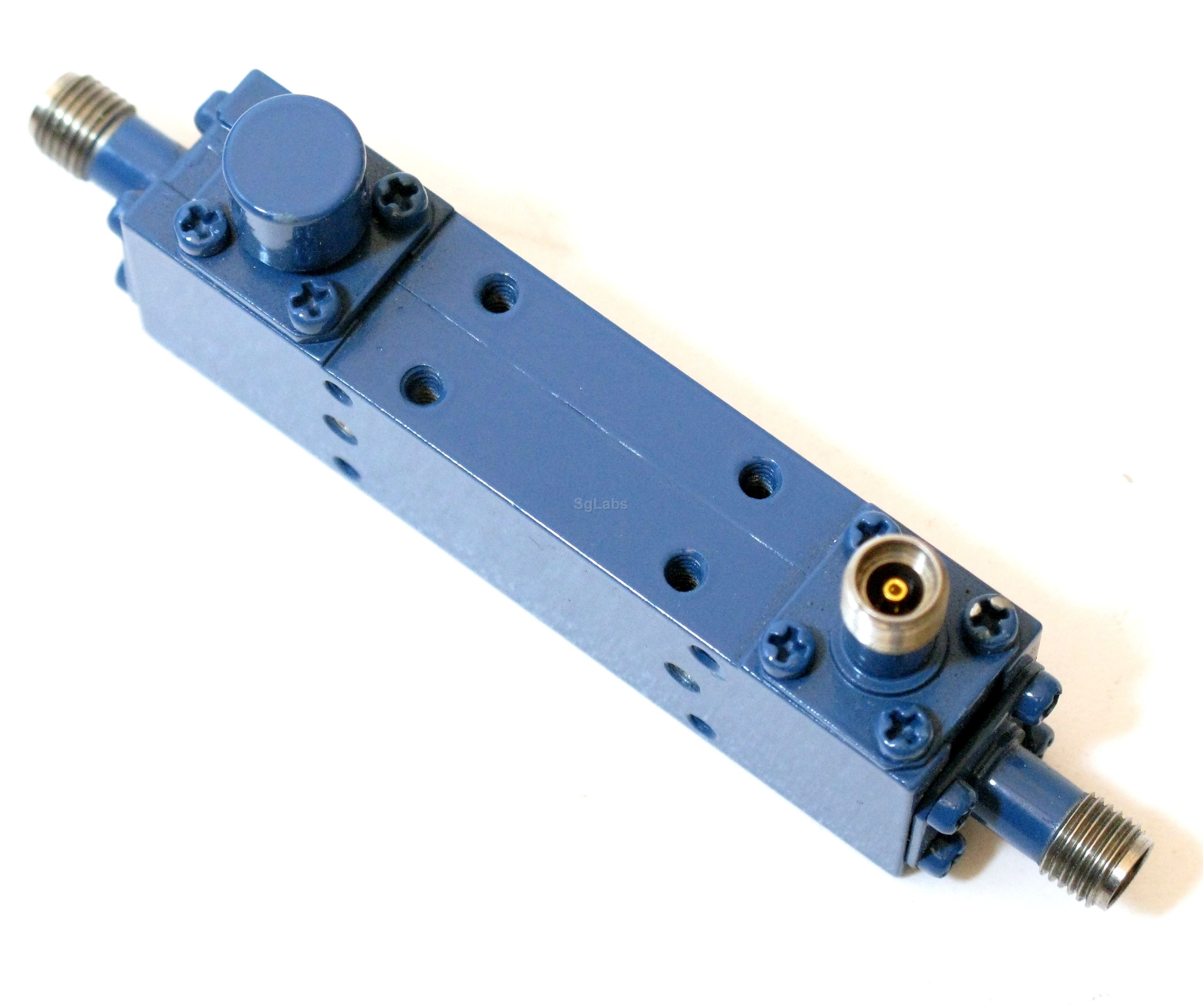

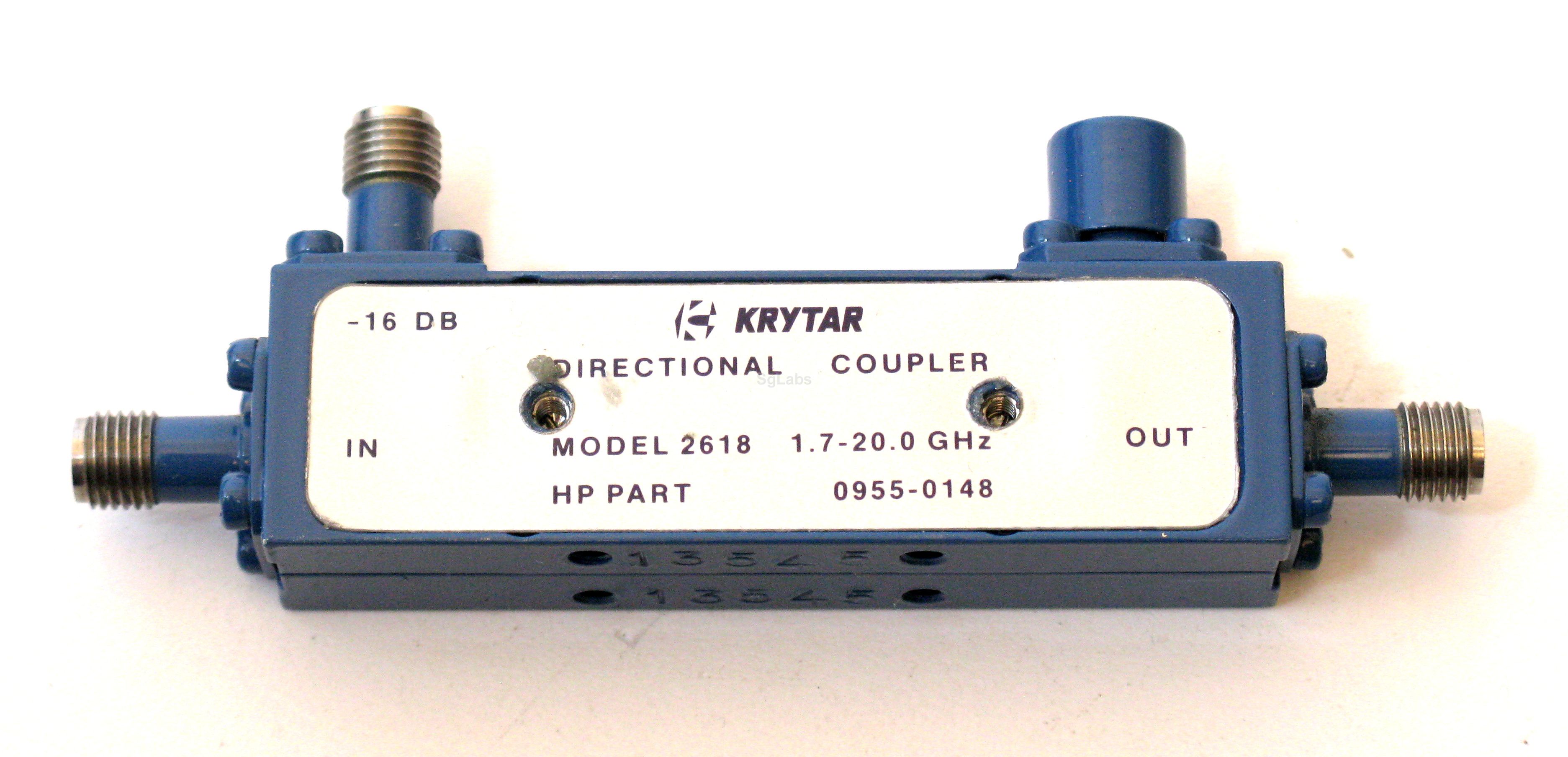

Krytar, 2618
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Coupler like HP 0955-0148 from 8340B
Used in:

  • 8340B
  • 83620A
  • 83621A
  • 83622A
  • 83623A
  • 83623B
  • 83623B-H10
  • 83623L
  • 83624A
  • 83624B
  • 85105A
  • 85105A-K10
  • 85105A-K12
  • 85105A-K50
  • 85106D
  • 85108L
  • 8510C
  • 85110A
  • 85110A-H04
  • 85110A-H05
  • 85110A-H45
  • 85110A-H50
  • 85110A-H51
  • 85110A-H52
  • 85110A-H53
  • 85110A-H56
  • 85110A-H57
  • 85110A-H60
  • 85110A-H61
  • 85110A-H70
  • 85110A-H72
  • 85110A-H74
  • 85110A-H75
  • 85110A-H76
  • 85110A-H77
  • 85110A-H78
  • 85110A-H81
  • 85110A-K04
  • 85110A-K07
  • 85110A-K10
  • 85110A-K12
  • 85110A-K18
  • 85110A-K21
  • 85110A-K56
  • 85110L
  • 85301A-E95
  • 85301A-S57
  • 85301B
  • 85301C
  • E6432A
  • E8241A
  • E8244A
  • E8251A
  • E8254A
  • E8361A
  • E8361C
  • E8362B
  • E8362C
  • E8363B
  • E8363C
  • E8364B
  • E8364C
  • N5260A
  • N5261A
  • N5262A
Features
  • Frequency Range: 1.7 - 20.0 GHz
  • Coupling: 16 dB
  • Directivity: : >15dB up to 18GHz, >13dB up to 20.0GHz
  • Max VSWR: 1.35 up to 18GHz, 1.45 up to 20.0GHz
  • Connectors: SMA female
  • Attenuation: 16dB
  • Connector: SMAf
  • Directivity: >15 18GHz, >13 20GHz
  • Max. Frequency: 20GHz
  • Min. Frequency: 1.7GHz
  • Max. power: 20W
  • VSWR / RL: 1.35 18GHz, 1,45 20GHz
Price
 € 180,00
