KUHNE, LNA BB 0180 C-N

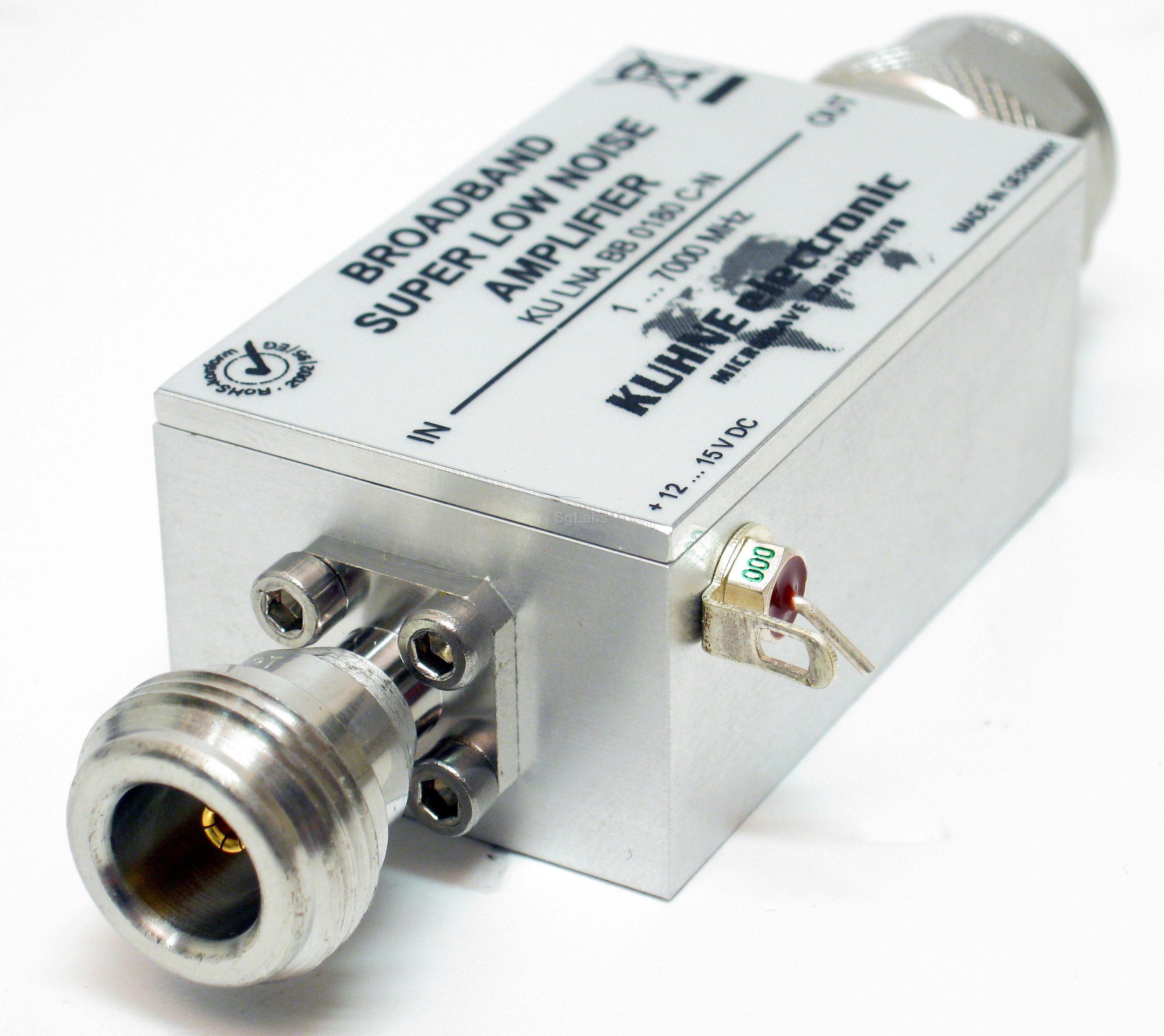

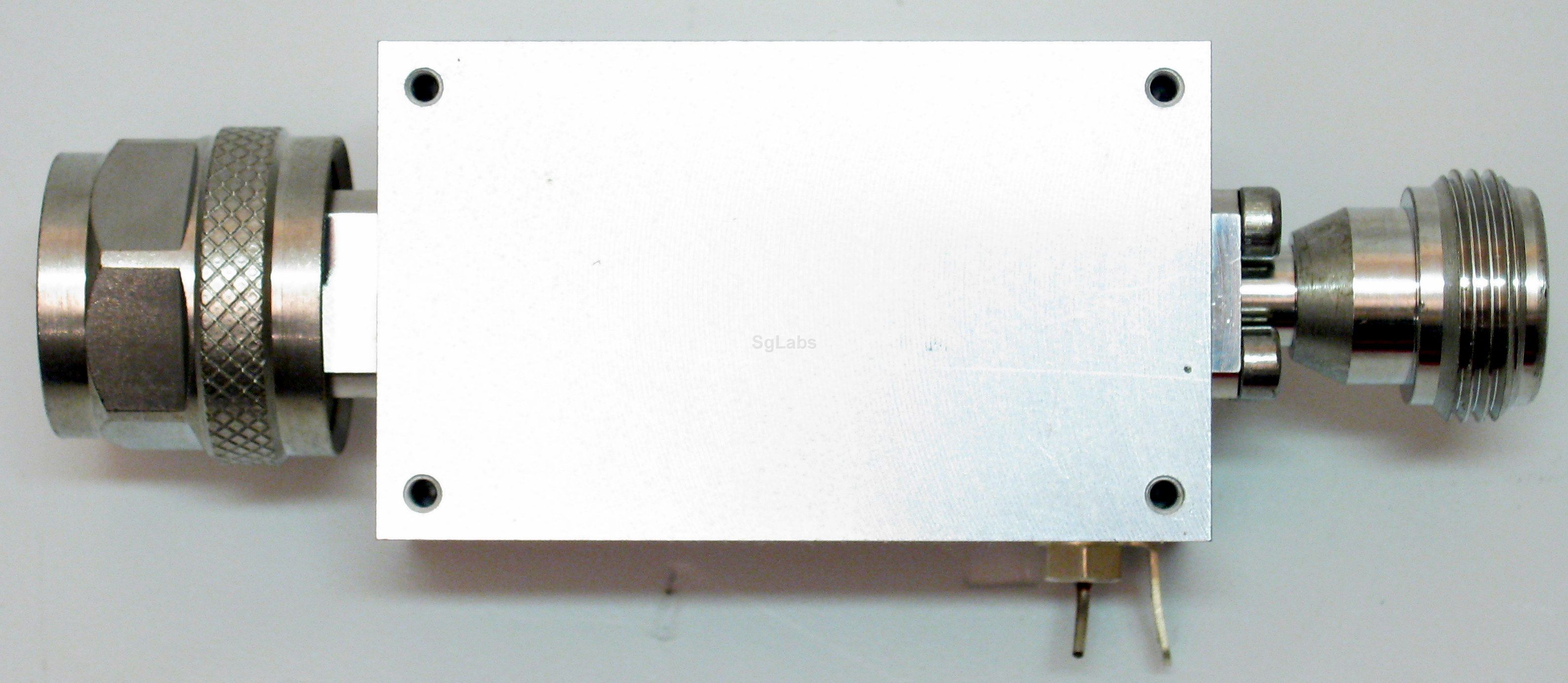

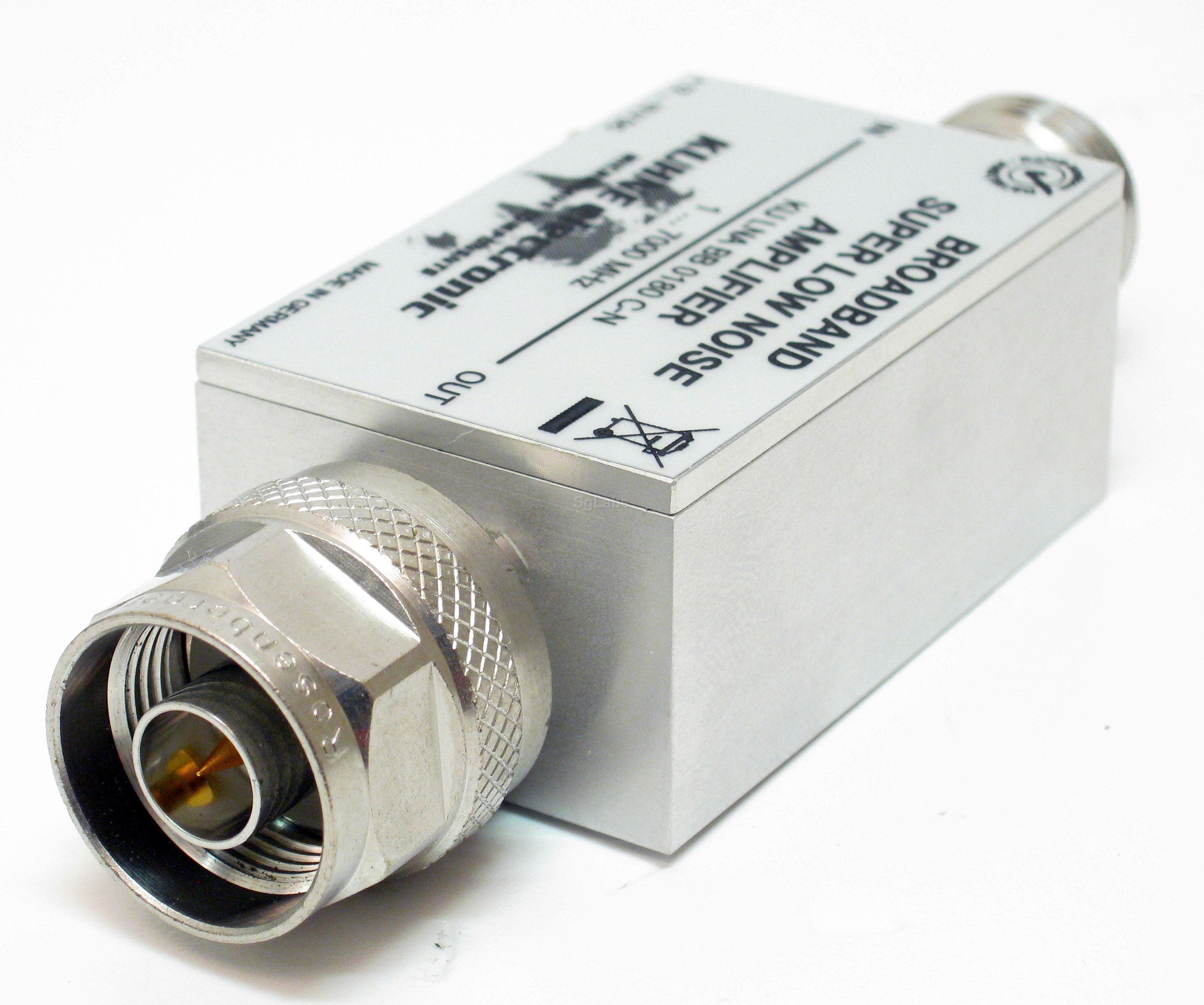

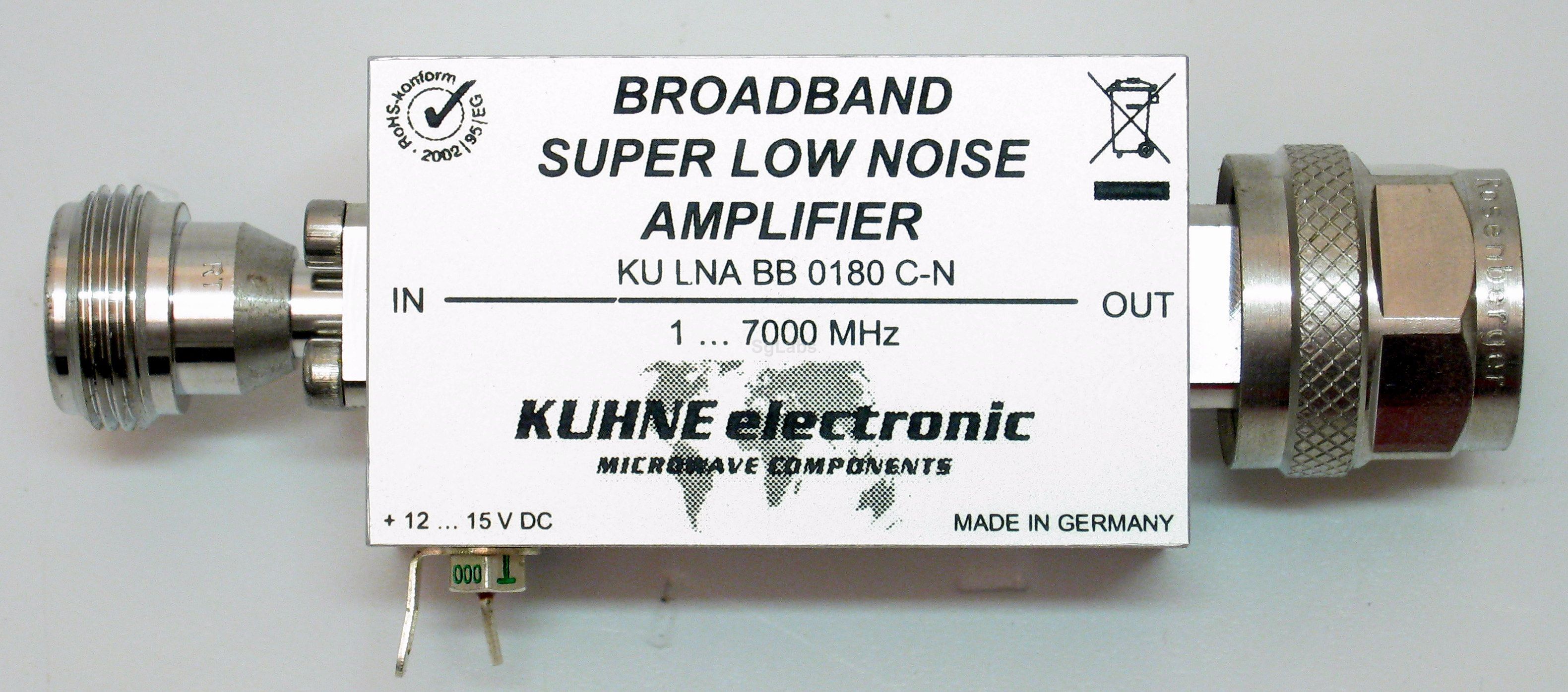

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
  • Large bandwidth
  • Reverse polarity protection
  • Solder pin for direct power supply
  • Small mechanical dimensions
  • Amplifier does not contain a coaxial relay!
  • Maximum input power +0 dBm
Features
  • Frequency range 1 ... 7000 MHz
  • Noise figure @ 18 °C typ. 4.0 dB, max. 5.0 dB
  • Gain 23 dB +/- 3 dB
  • Input power max. +0 dBm
  • Output power P1dB typ. +7 dBm
  • Output IP3 typ. +25 dBm
  • Input return loss (S11) min. 10 dB
  • Supply voltage +12 ... 15 V DC
  • Current consumption typ. 90 mA
  • Input connector / impedance N-female, 50 ohms
  • Output connector / impedance N-male, 50 ohms
  • Case milled aluminium
  • Dimensions (mm) 50 x 30 x 22
  • Weight typ. 100 g
  • Max. Frequency: 7000 MHz
  • Min. Frequency: 1 MHz
  • Gain: 23 dB
  • Max. power: 7 dBm
