RLC ELECTRONICS, D-1814A

You are here: RF Component » Power splitter

RLC ELECTRONICS, D-1814A

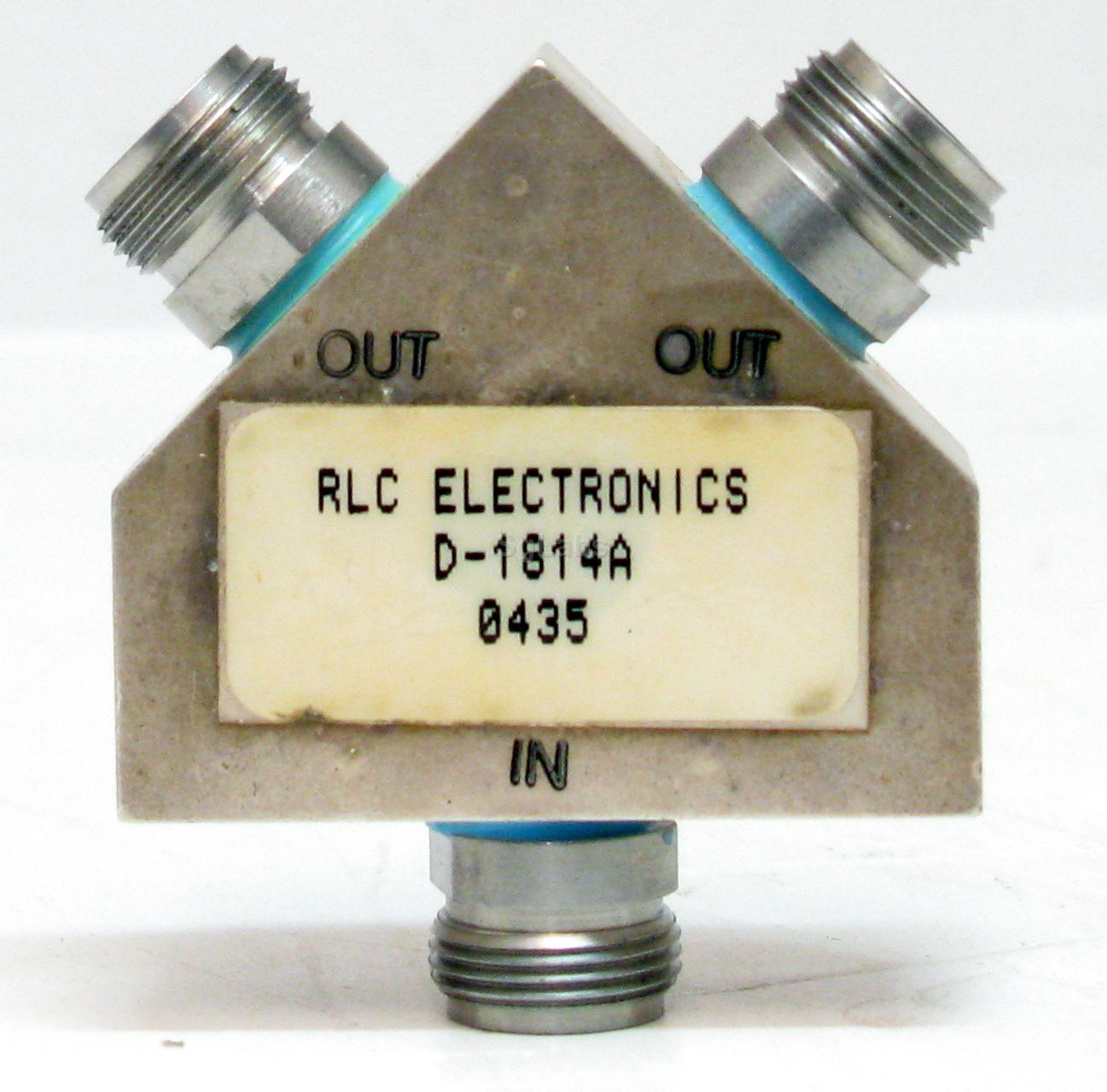

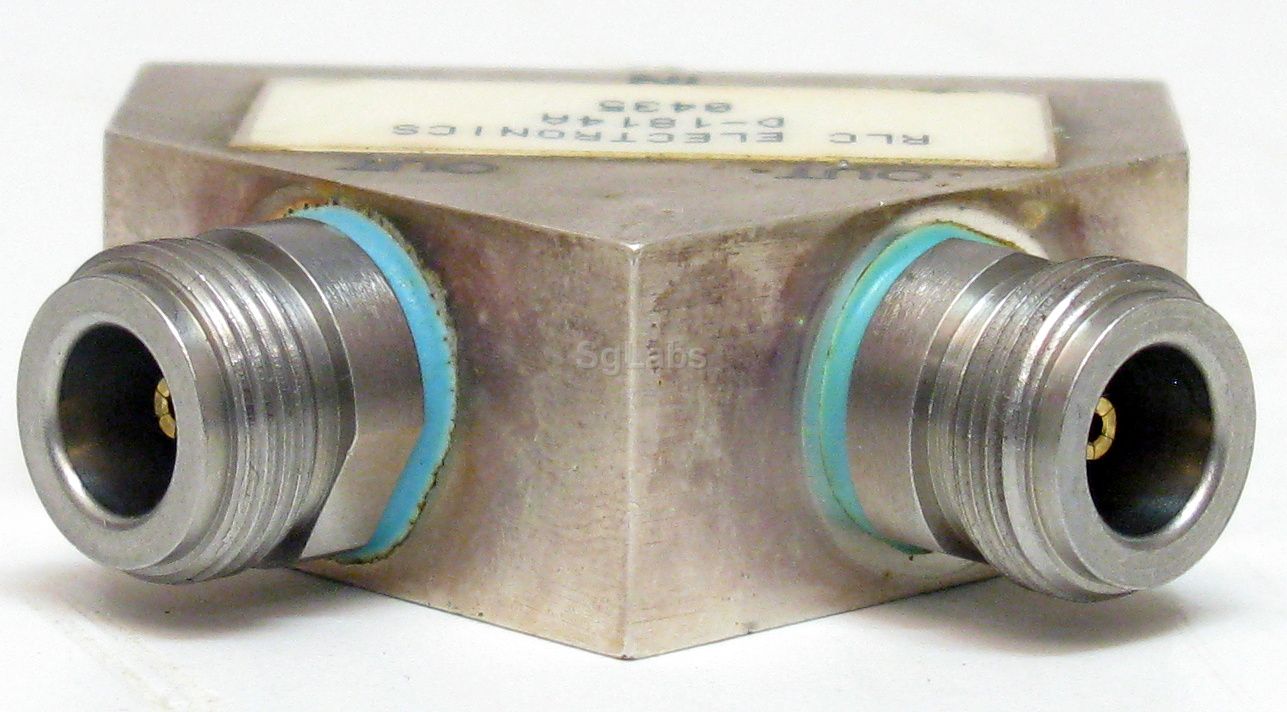

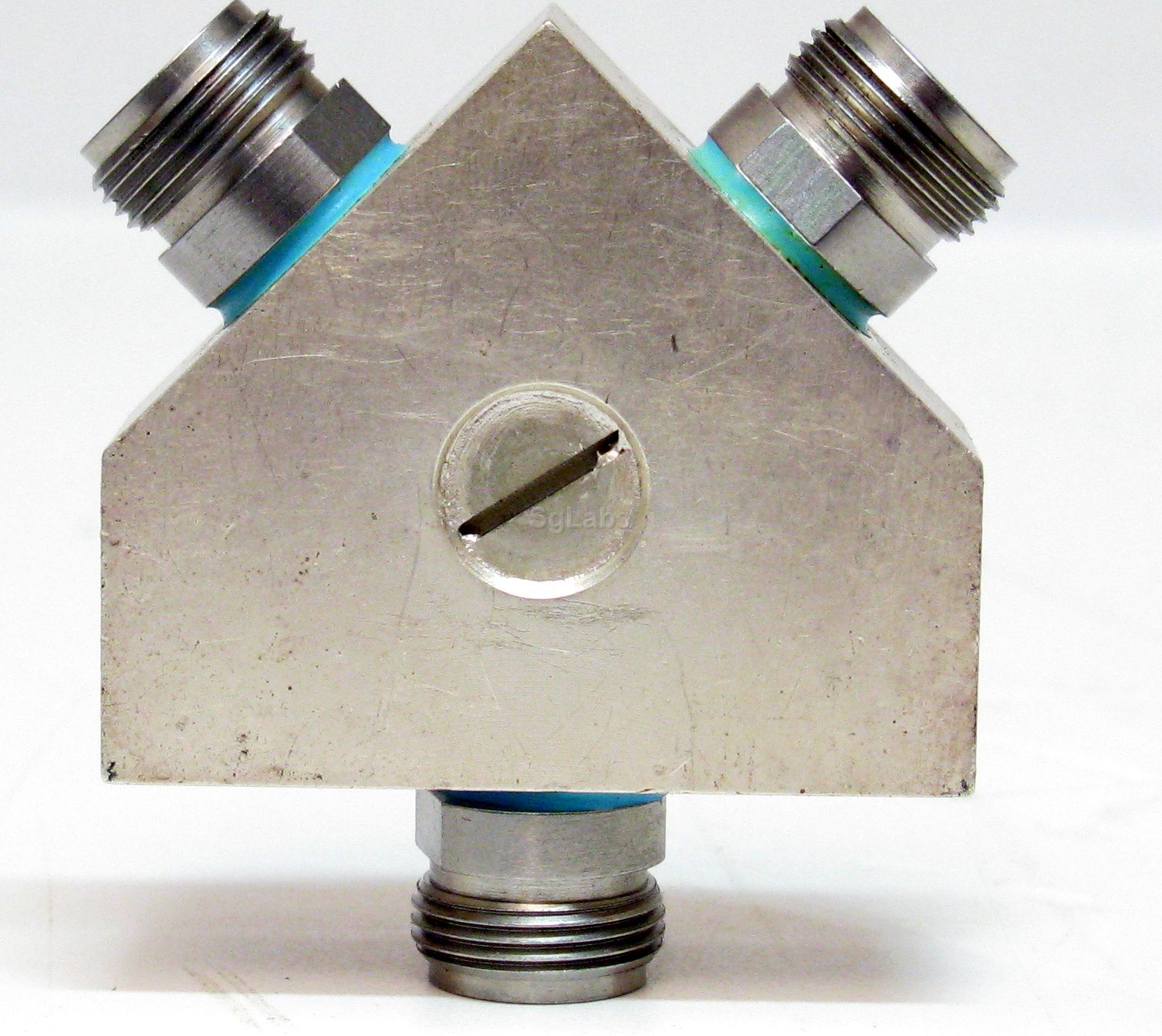

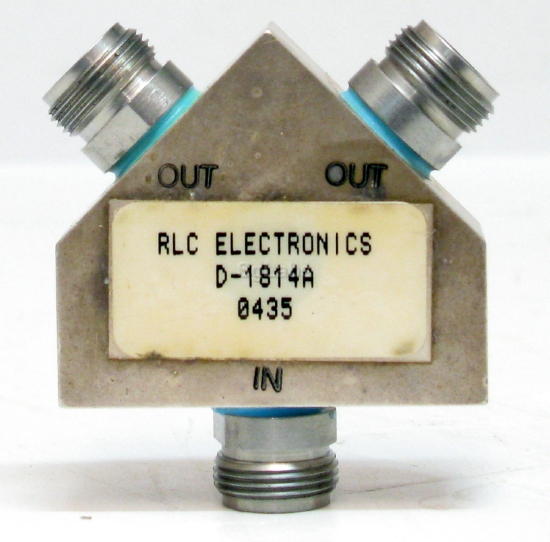

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
RLC Electronics' D—1814A is a broadband DC to 18 GHz resistive power splitter which utilize two resistors, one on each of the output ports, and is a unidirectional device. It provides exceptional amplitude tracking and a very low equivalent output VSWR over the whole frequency range. It can be used in  applications in which  one of the two outputs is included in a leveling loop as a reference in a ration system.
Features
  • Frequency Range: DC - 18 GHz
  • Impedance: 50 Ohms
  • Insertion Loss C: 6 dB
  • Max Imput Power: +27 dBm
  • Connectors: N female
  • Attenuation: 6 dB
  • Connector: Nf
  • Max. Frequency: 18 GHz
  • Min. Frequency: DC
  • Max. power: +27 dBm
  • VSWR / RL: Input: 1.45 max, Output: 1.33 max
Price
 € 350,00
