Rohde & Schwarz , NRV-Z32

You are here: Power Meter / Sensor (RF) » Power sensor

Rohde & Schwarz , NRV-Z32

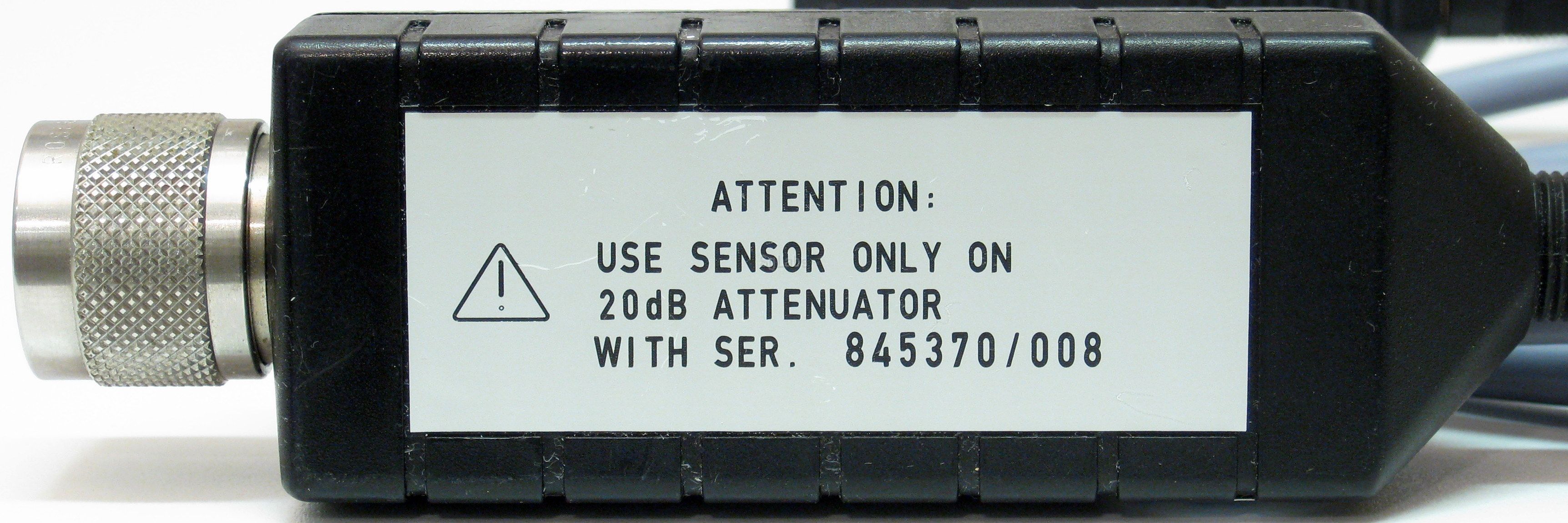

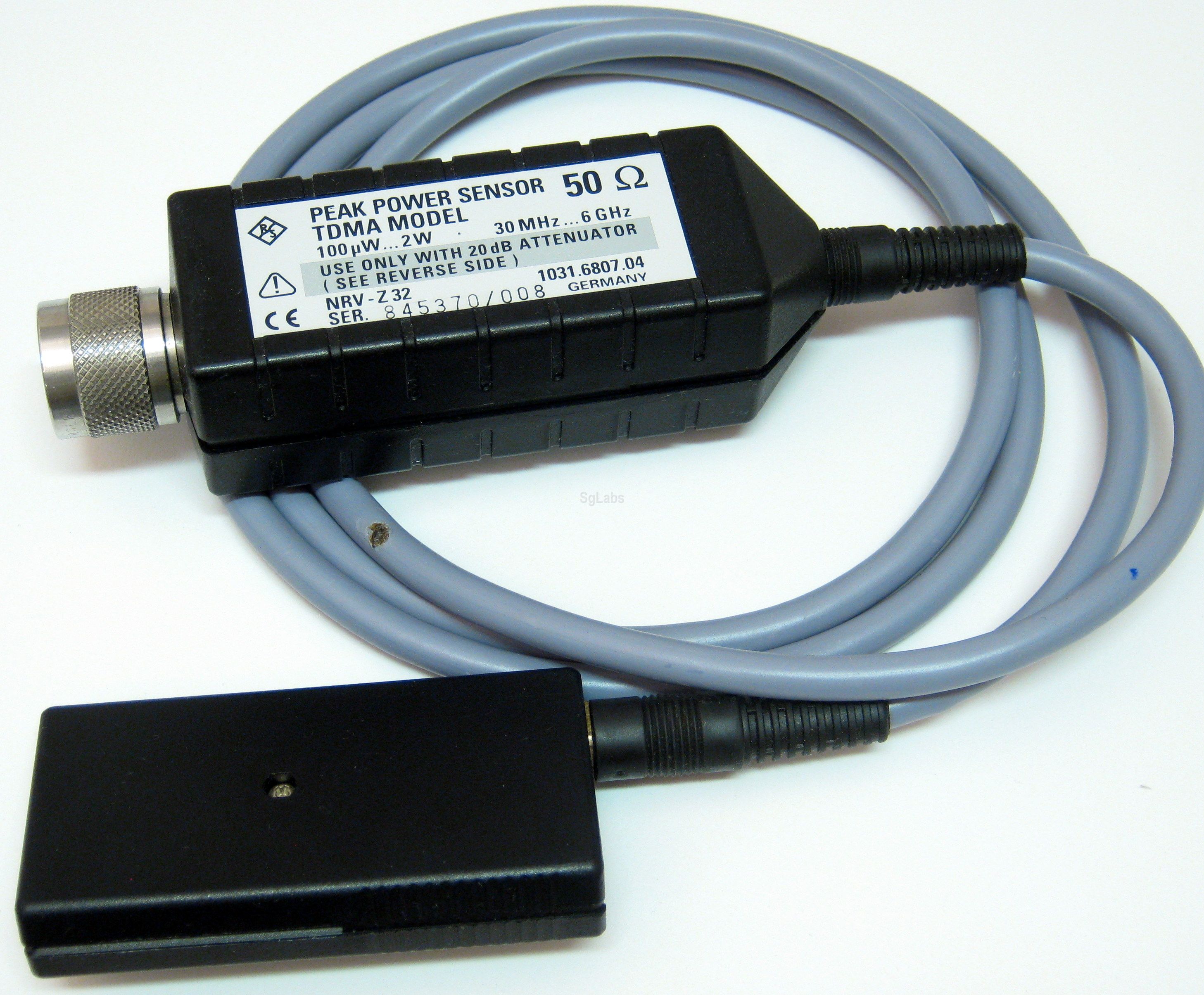

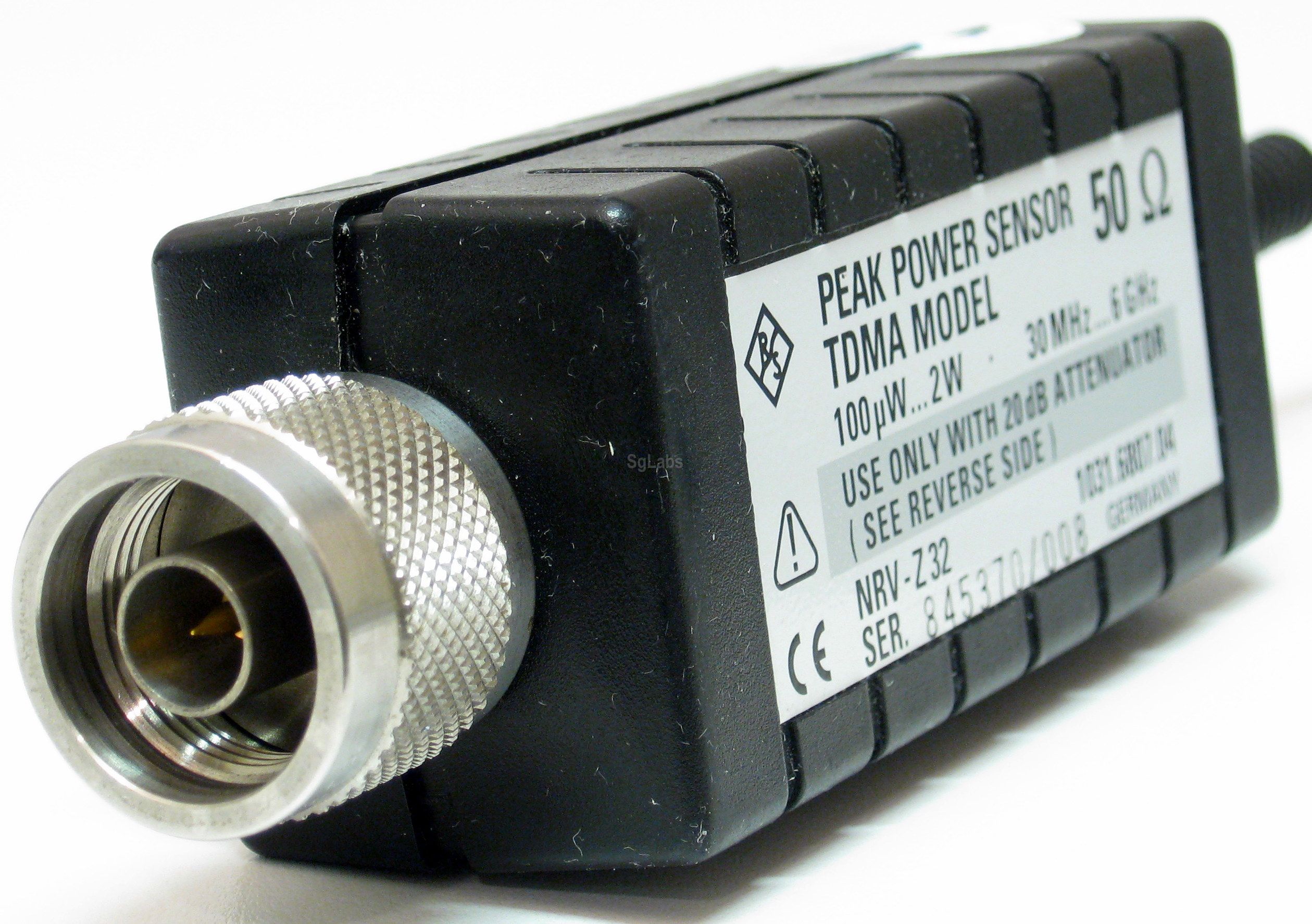

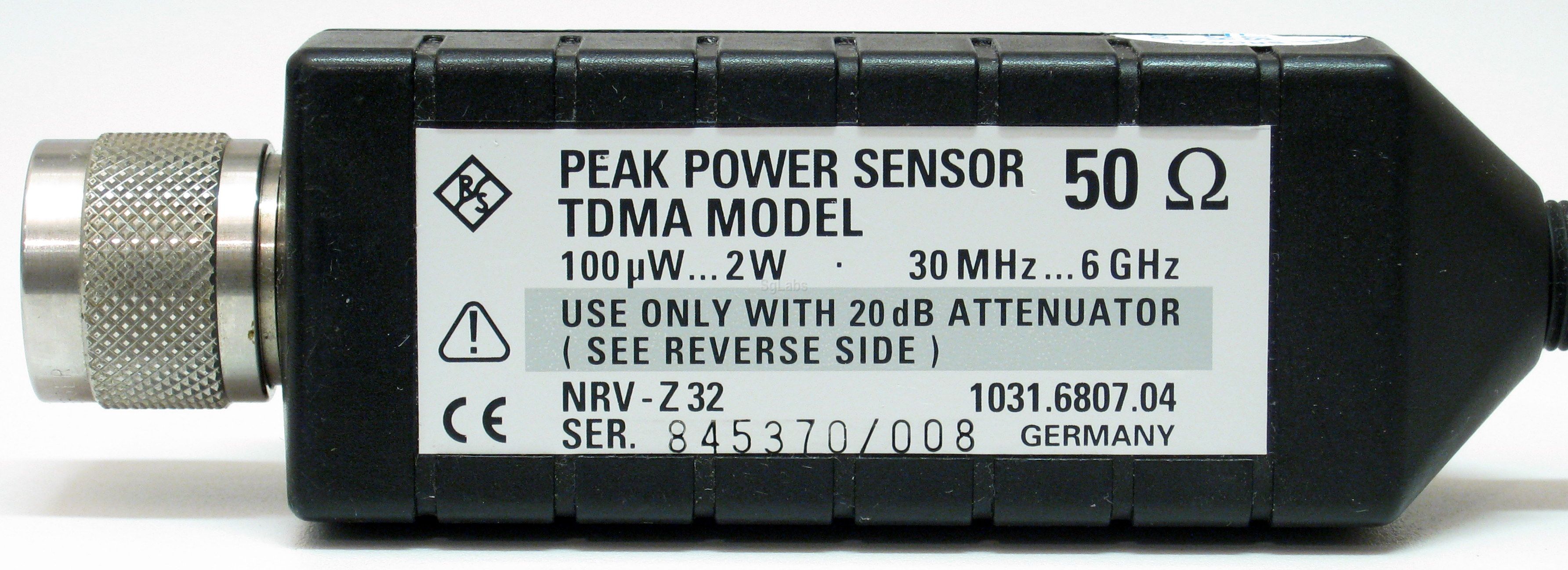

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
With its large variety of power sensors Rohde & Schwarz is able to provide the right tool for power measurements with NRVS, NRVD, URV35 and URV55 base units.15 different types of power sensors in all cover the frequency range from DC to 40 GHz and the power range from 100 pW (-70 dBm) to 30 W (+45 dBm). In addition to thermal sensors, which are ideal as a high-precision reference for any waveform, diode sensors with a dynamic range of more than 80 dB are available.

Peak power sensors
The NRV-Z31/ NRV-Z32/NRV-Z33 peak power sensors take a special place among diode sensors. They enable measurement of the peak envelope power (PEP) of modulated signals during signal peaks of 2 μs to 100 ms duration. They thus open up a large variety of applications, from the measurement of pulsed transmit power of TDMA mobile phones through special measurement tasks in applied physics to the measurement of sync pulse power of terrestrial TV transmitters. Peak power sensors from Rohde & Schwarz are available for the frequency range 30 MHz to 6 GHz in the power classes 20 mW (NRV-Z31), 2 W (NRV-Z32) and 20 W (NRV-Z33), the latter for direct power measurement at output stages.
  • Max. Frequency: 6 GHz
  • Min. Frequency: 30 MHz
  • Max. power: 33 dBm (2W)
  • Min. Power: -10 dBm (100uW)
Price
 € 550,00
