Rohde & Schwarz, SME03

You are here: RF Signal Generator » Digital

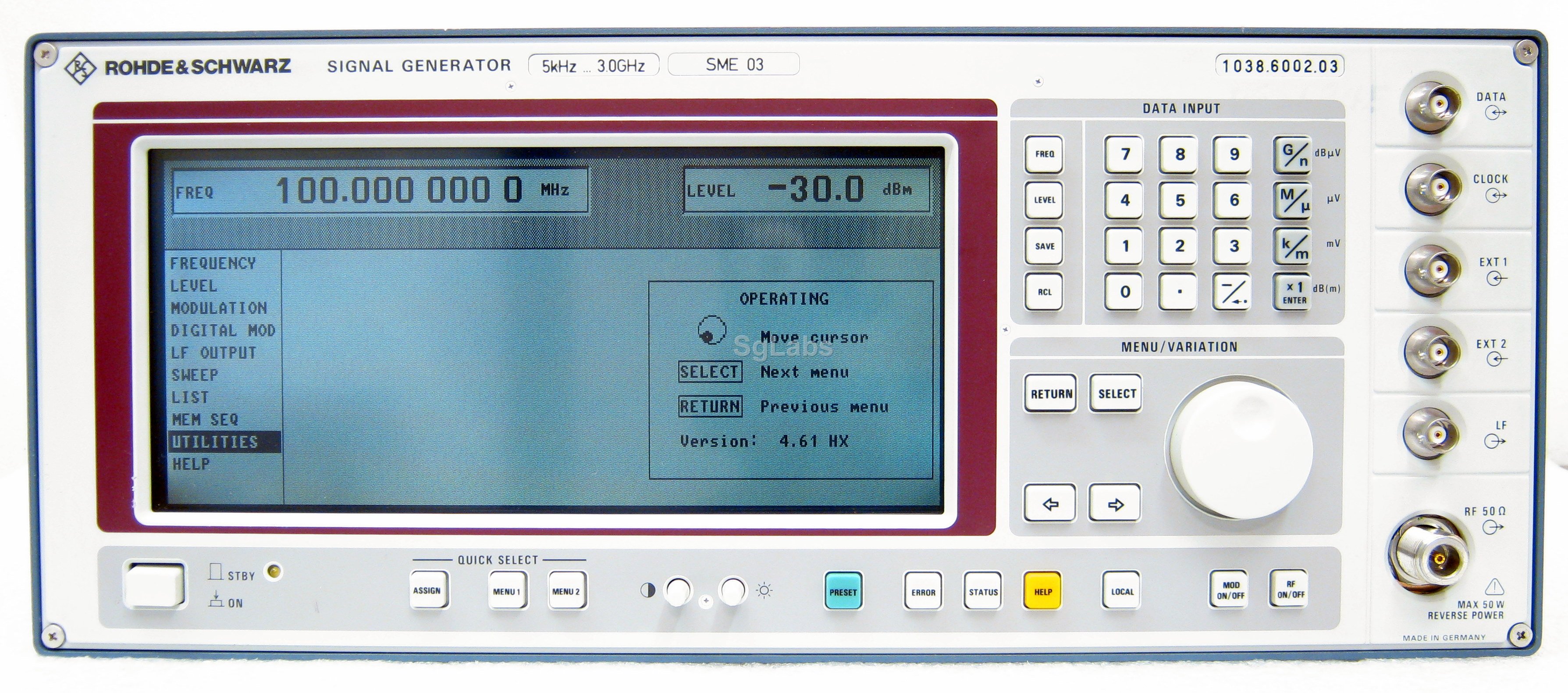

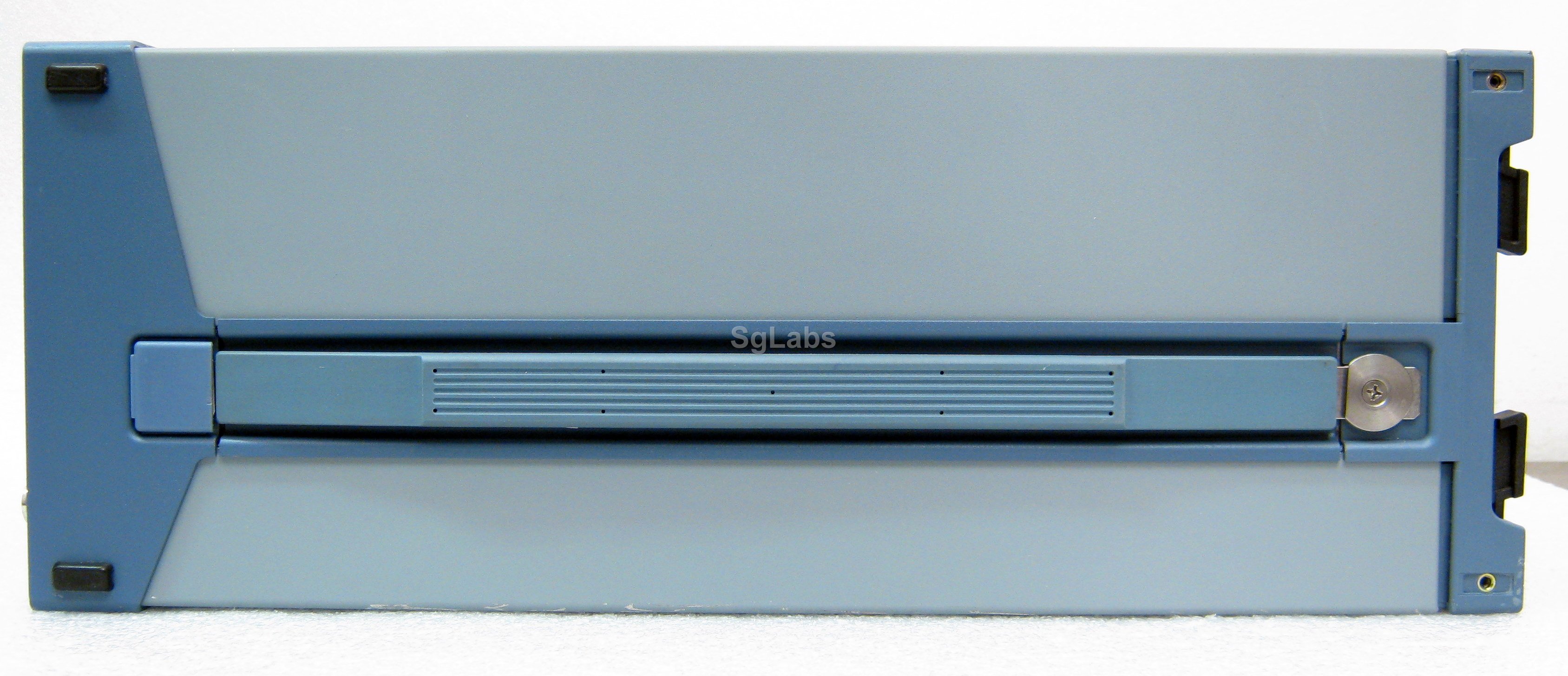

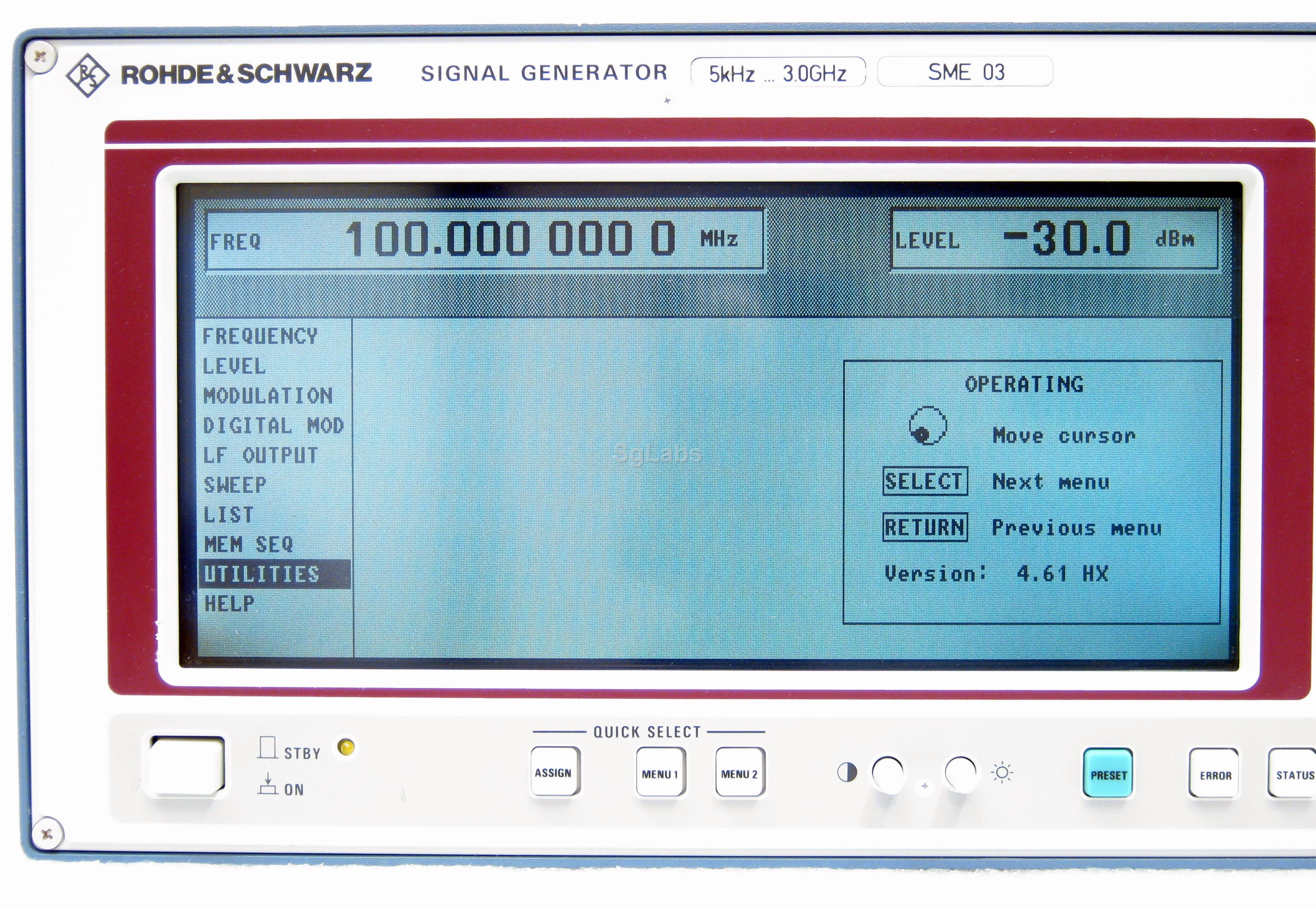

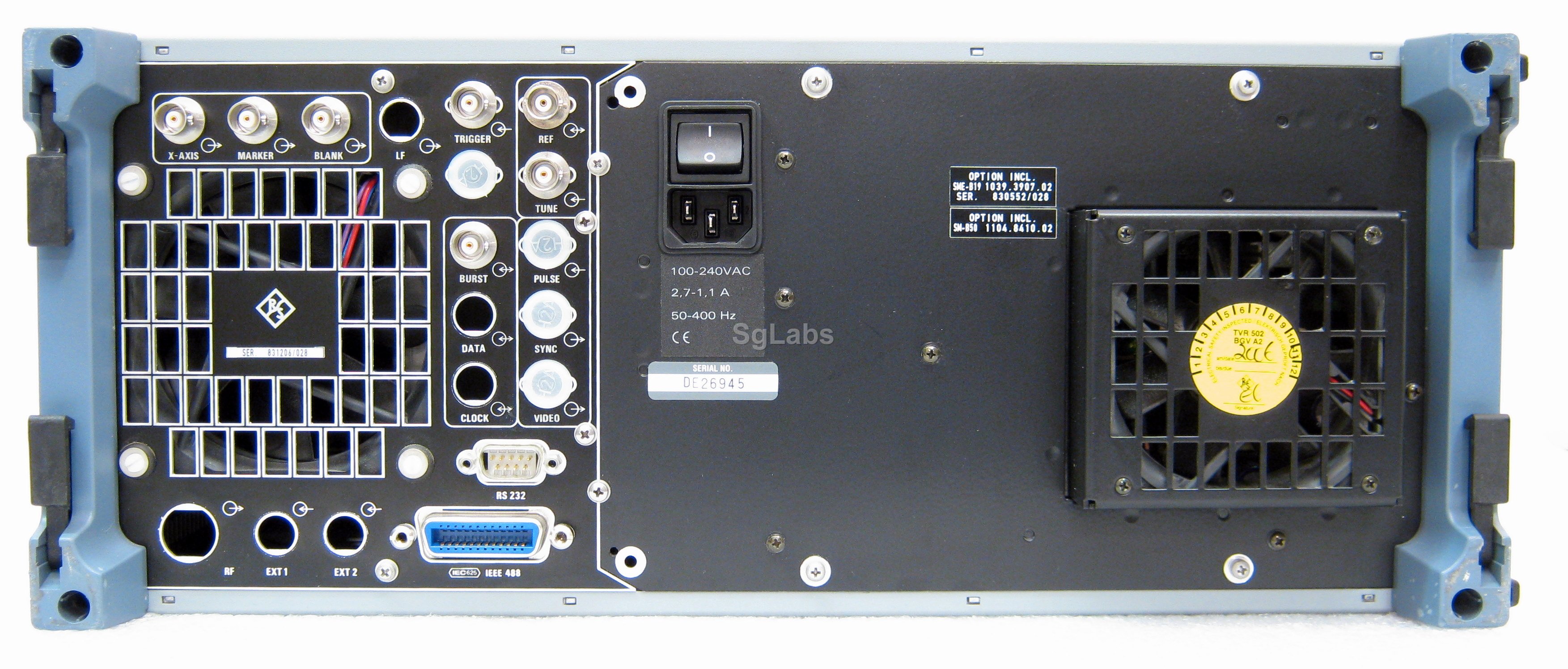

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

The Rohde Schwarz SME03 is a versatile signal generator with a frequency range of 5kHz to 3GHz and an output level of -144 to +13dBm. The SME03 supplies the complex signals required for the development and testing of digital mobile radio receivers. The SME03 is capable of generating all signals used in the main digital radio networks in line with relevant standards regarding the type of modulation, data format, TDMA structure and frequency hop patterns. The SME03 is completely at home also in the analog signal world of conventional signal generators.

5 kHz to 3 GHz
Leveled output -144 to +13 dBm
0.1 Hz resloution
All common digital modulation modes provided in one unit
Great ease of operation thanks to a novel menu concept
No external modulation and data sources required
User-programmable data sequences and TDMA structure
RF, LF and level sweep
Ultra-low RF leakage for measurements on highly sensitive pagers
List mode: programmable measurement sequence for up to 4096 frequency and level combinations, setting time

Option:

B1:Reference Oscillator OCXO
B2:LF Generator
B4:Pulse Generator
B5:FM/PM Modulator
B6:Multifunction Generator
B8:Pulse Modulator
B12:DM Memory Extension 8 Mbit
B11:DM Coder: generates FSK, FFSK, 4FSK, GFSK,
GMSK, QPSK, p/4 QPSK, p/4 DQPSK, O-QPSK
B50: High speed CPU

Max frequency: 3 GHz
Minimum Frequency: 5 kHz
Modulation: AM-FM-PHASE Pulse and digital
Max. Output level: 13 dBm
Min. output level: -144 dBm
Resolution: 0.1 Hz
