Rohde & Schwarz , SME06

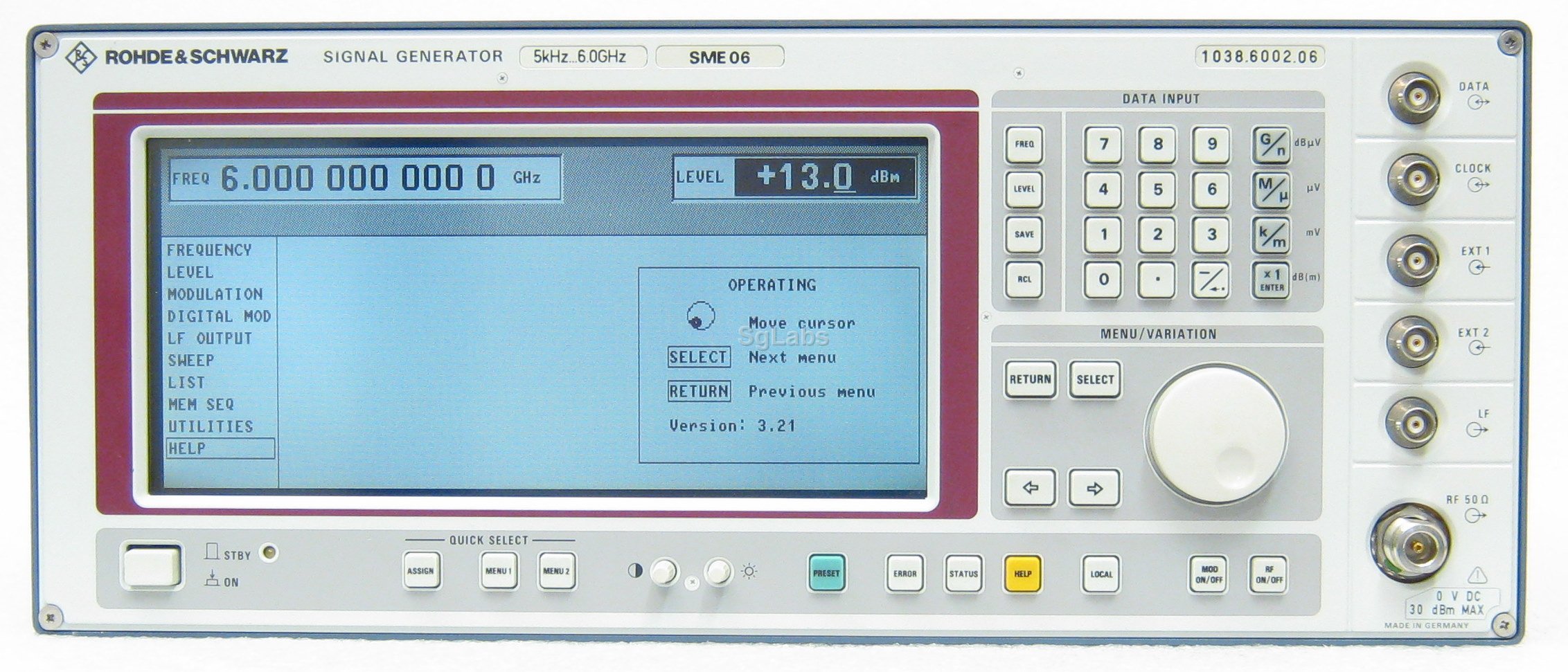

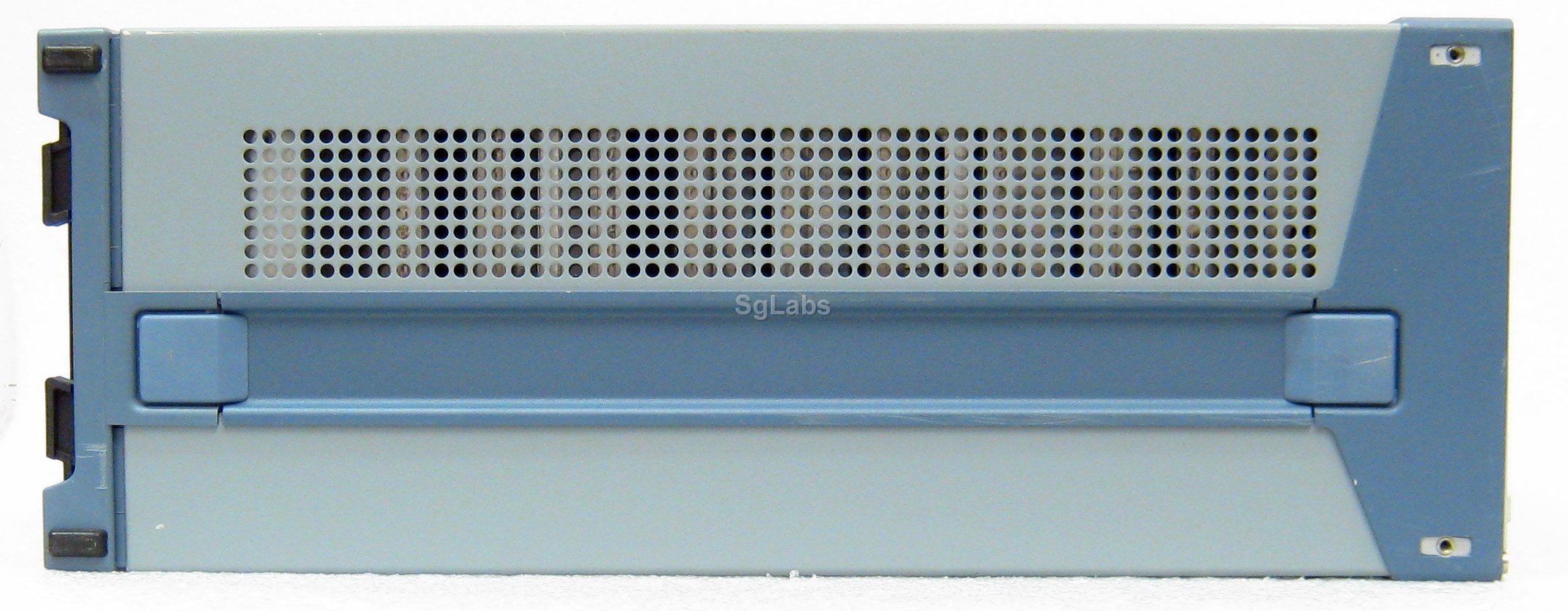

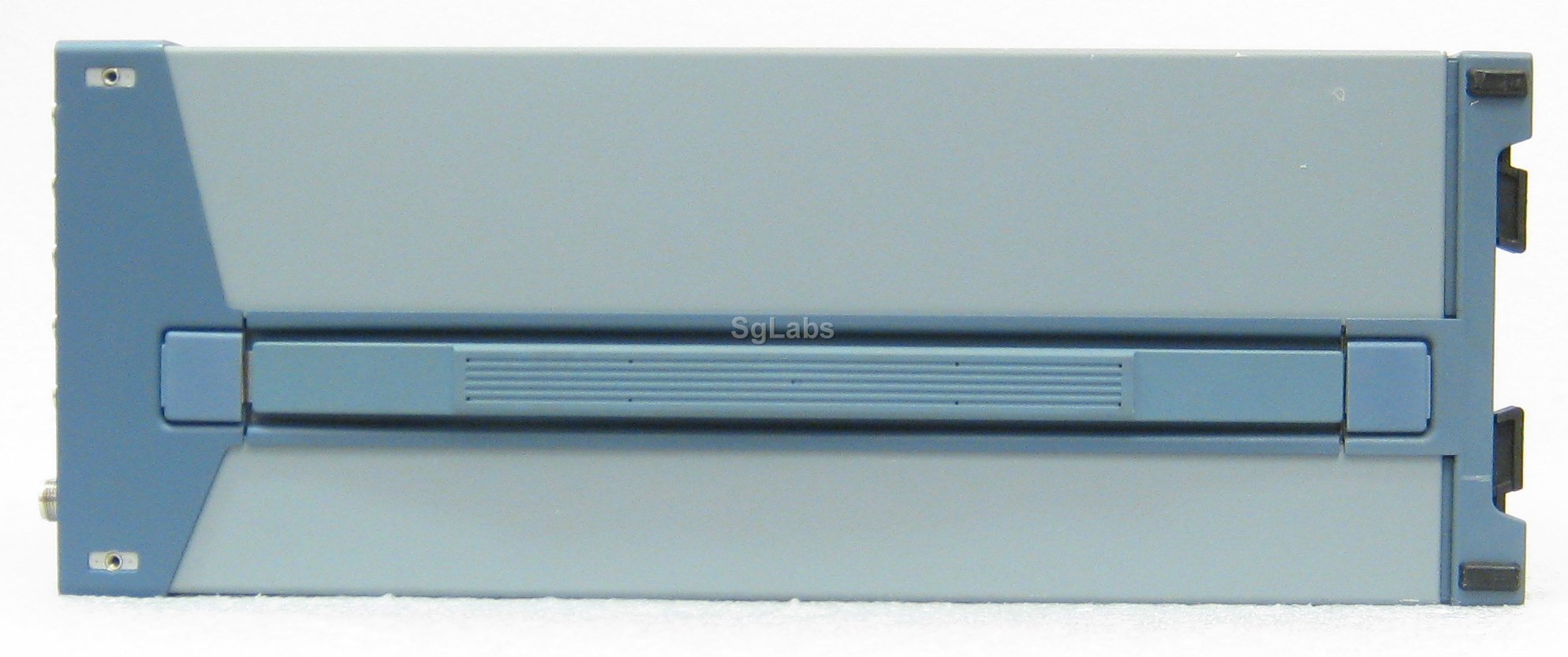

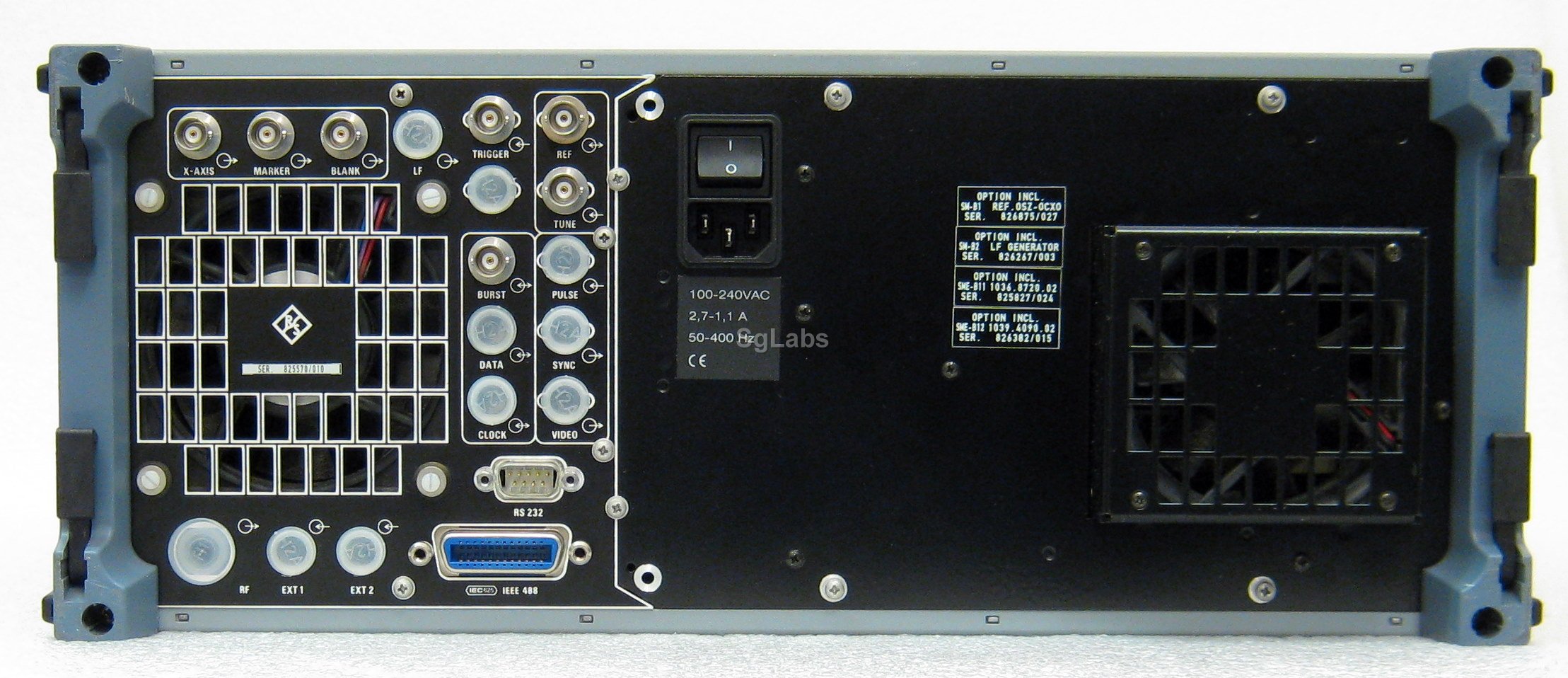

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The R&S® SME supplies the complex signals required for the development and testing of digital mobile radio receivers. It is capable of generating all signals used in the main digital radio networks in line with relevant standards regarding the type of modulation, data format, TDMA structure and frequency hop patterns. The R&S® SME is completely at home also in the analog signal world of conventional signal generators. R&S® SME02, R&S® SME03 and R&S® SME06 are identical except for the frequency range. The large variety of options available allows the SME to be tailored to the specific needs of the user
Features
  • Frequency range 5 kMHz to 6 GHz
  • Max resolution 0.1 Hz
  • RF Output Level: -144 to +13 dBm levelled (+16 dBm unlevelled)
  • Impedance: 50 Ohm
  • Max frequency: 6 GHz
  • Minimum Frequency: 5 kHz
  • Max. Output level: 13 dBm
  • Min. output level: -144 dBm
