R&S Rohde & Schwarz SFE Broadcast Tester Signal Generator 2.7 GHz
You are here: RF Signal Generator » Digital

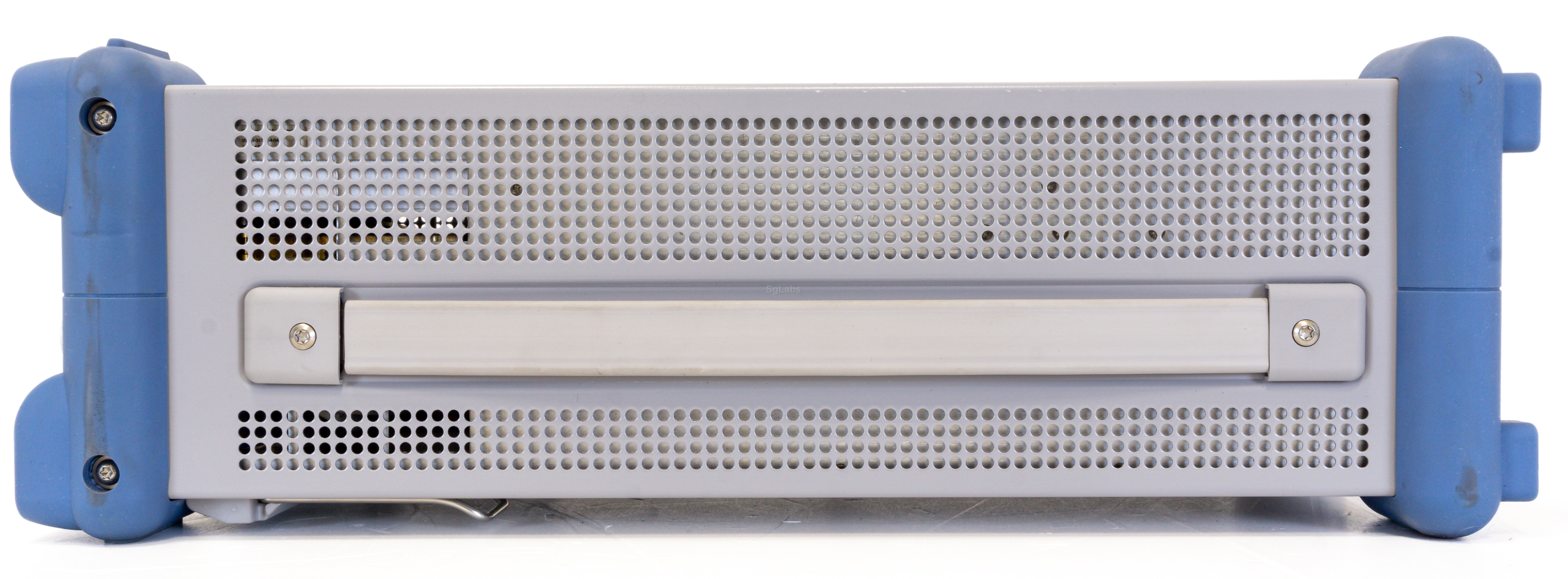

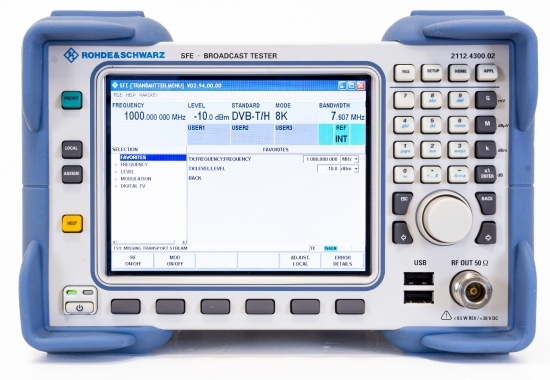

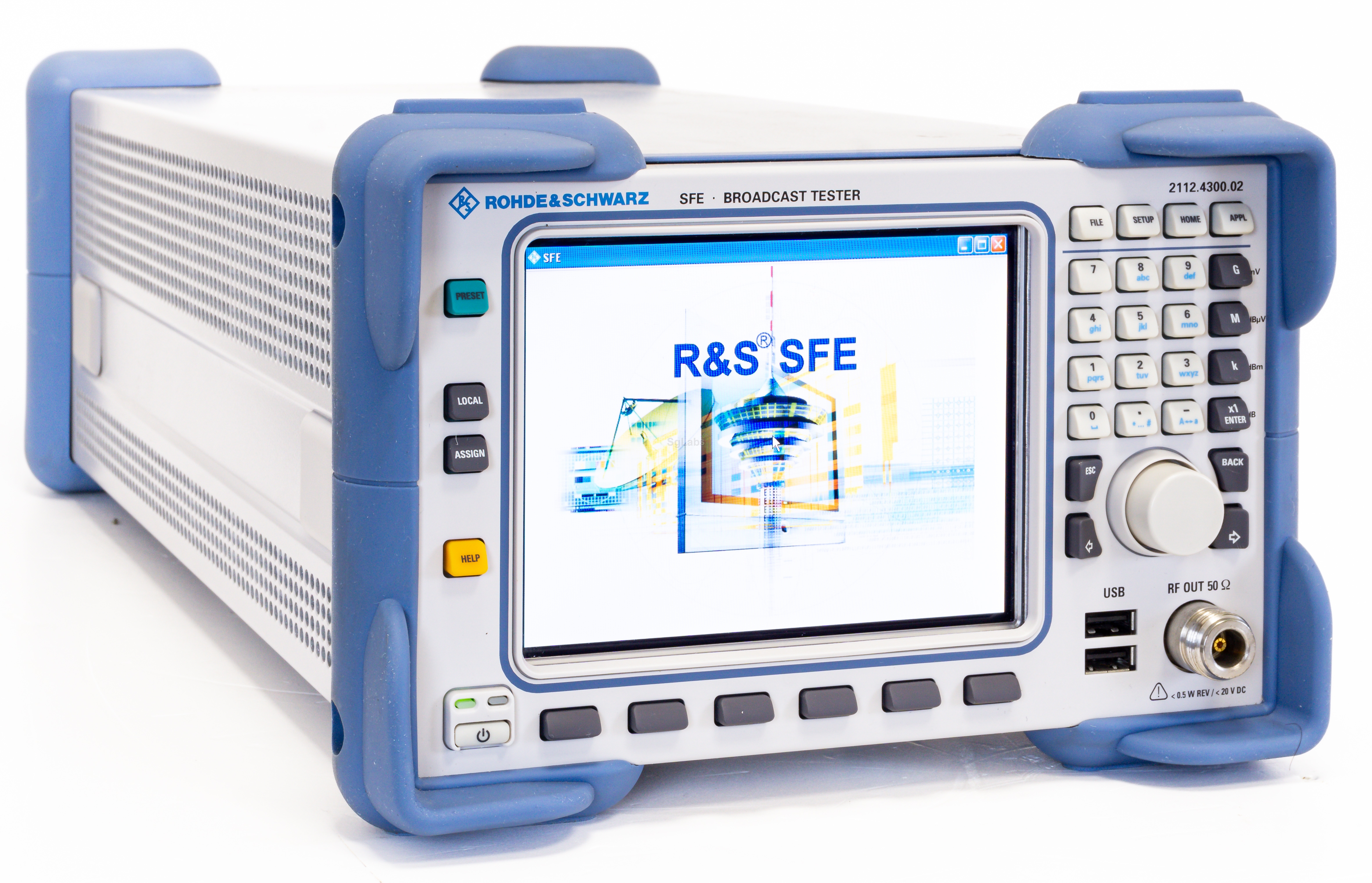

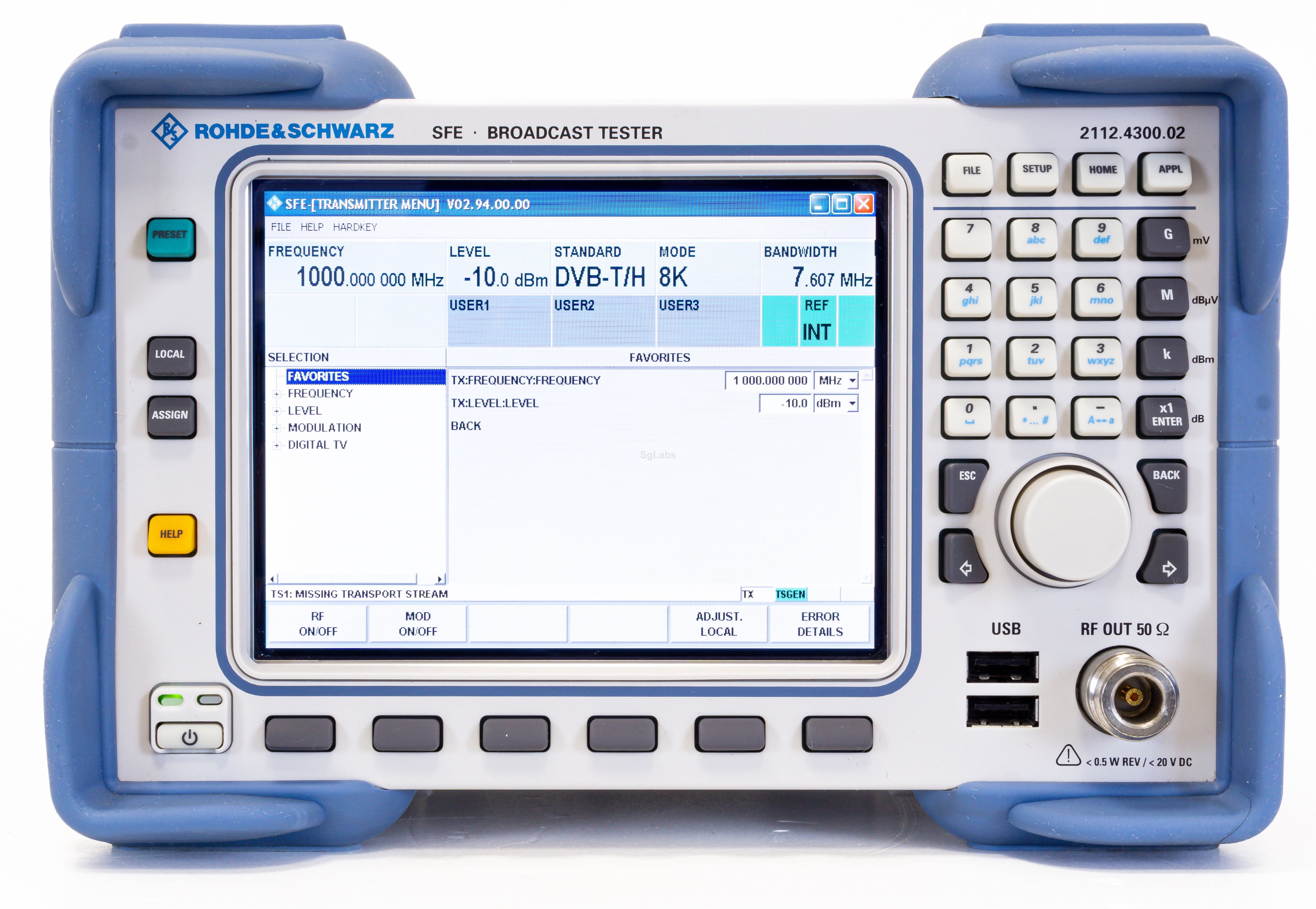

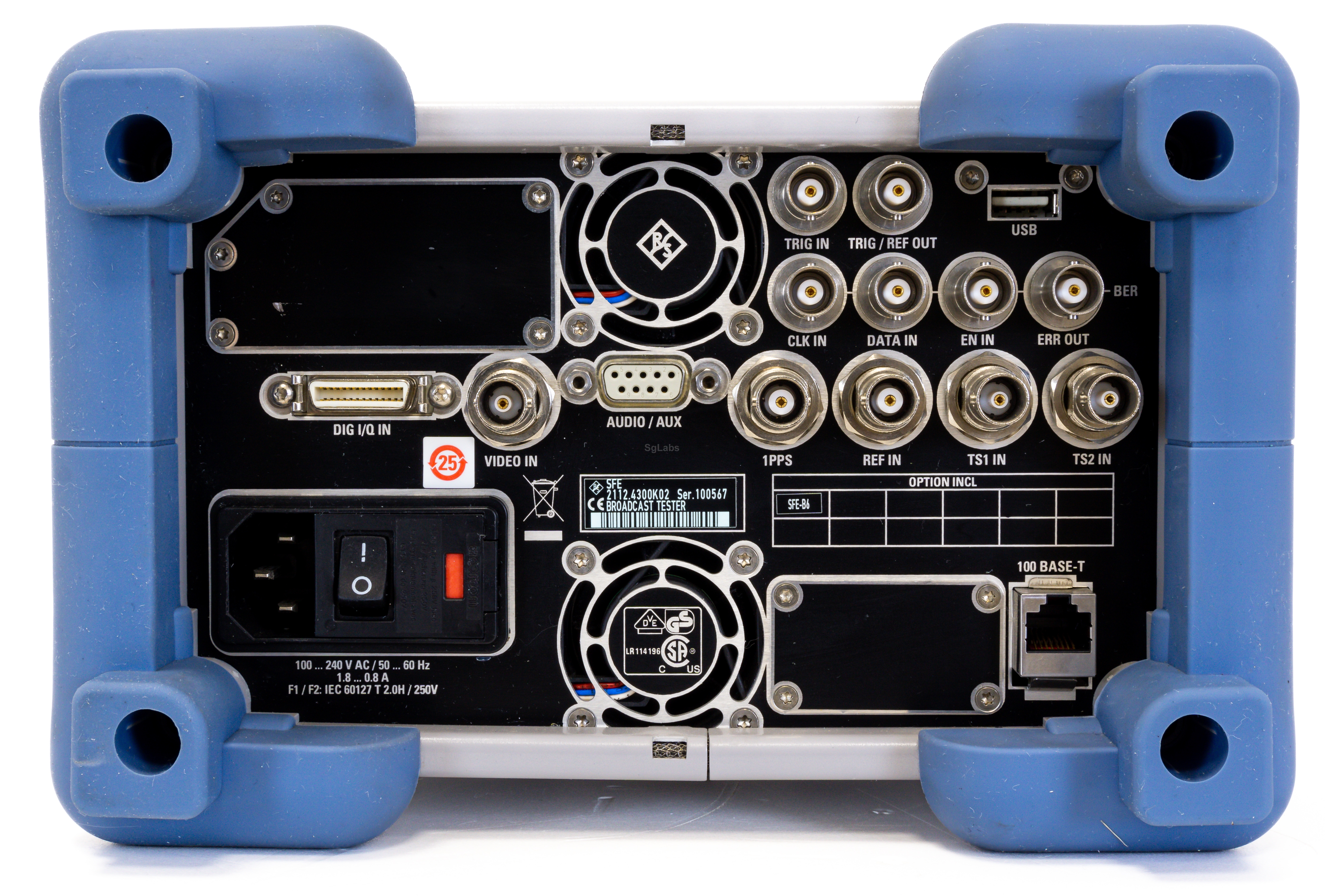

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The R&S SFE is a multistandard signal generator that supports all common TV standards and a number of audio broadcasting standards. Whether analog or digital terrestrial TV, cable, satellite or mobile TV, or sound broadcasting–the R&S SFE modulates all these signals in realtime, combining a high-quality RF modulator, a universal realtime coder and diverse baseband signal sources in a single unit.
Features
- Multistandard signal generator
- Frequency range up to 2700 MHz
- High-precision modulator (MER typ. 43 dB)
- Integrated 12 path fading simulator
- Integrated noise source, BER tester and transport stream generator
- Max frequency: 2.7 GHz
- Minimum Frequency: 100 kHz
- Modulation: Digital TV
- Max. power: 15 dBm
- Min. output level: -110 dB
- Resolution: 1 Hz
