The R&S ZV-Z51 is a calibration unit for R&S ZVA, ZVT and ZVB series analyzers designed for high-speed and error-free system error correction of network analyzers.

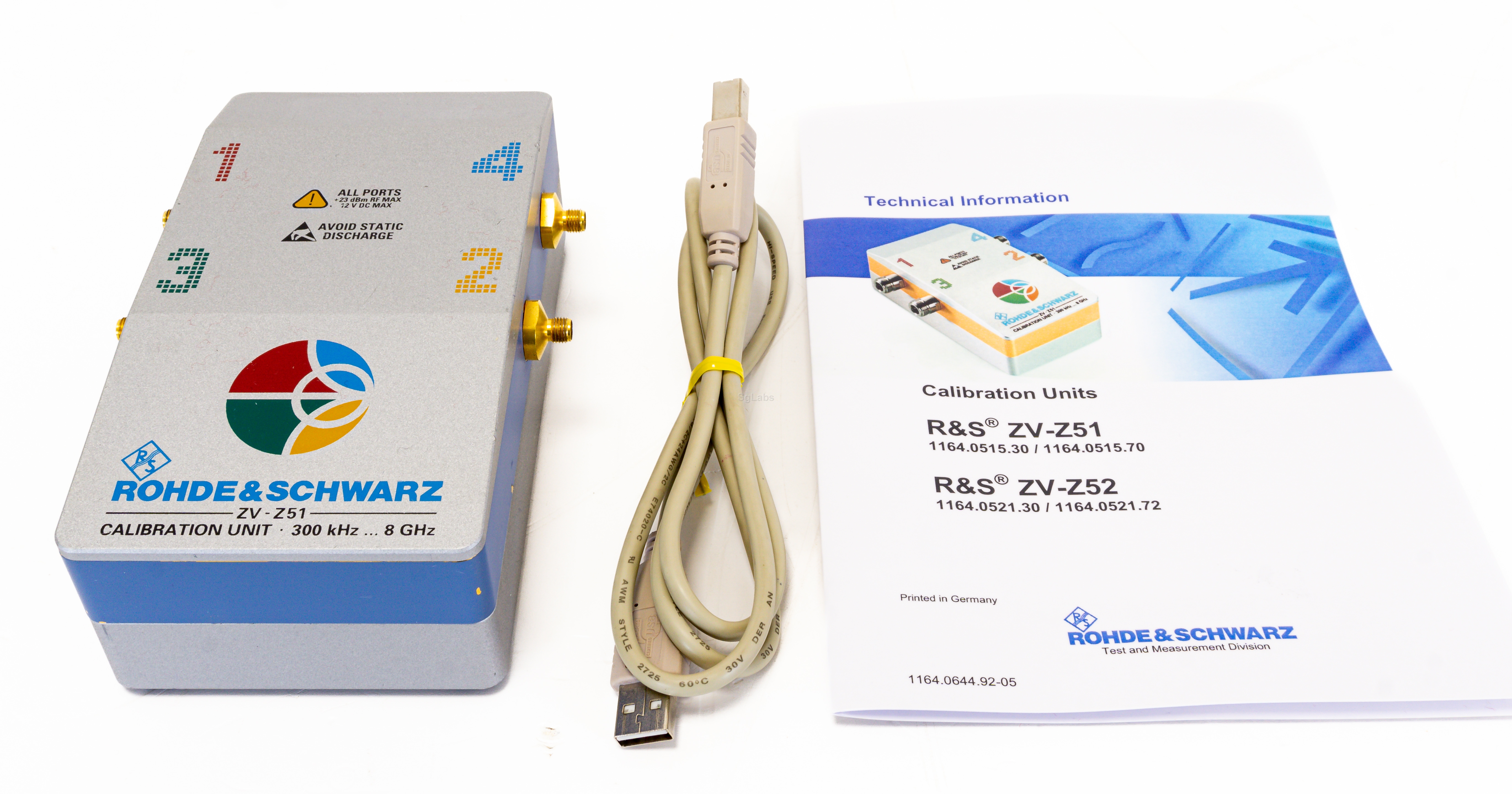

After the USB cable is connected, it is automatically detected and at room temperature immediately ready for operation.

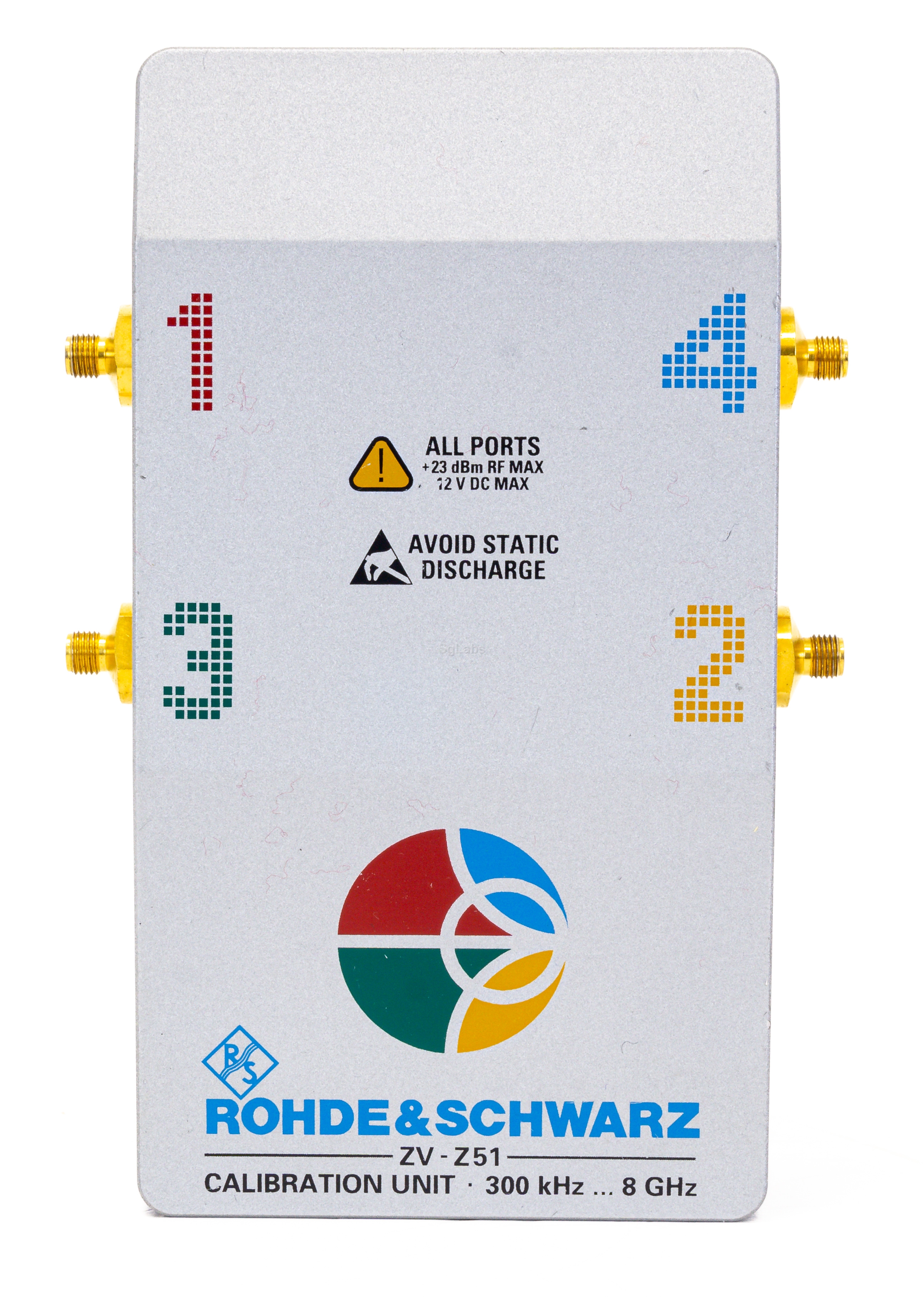

R&S Rohde & Schwarz ZV-Z51 Electronic calibration kit 4 ports 8 GHz
You are here: RF Component » Calibration kit

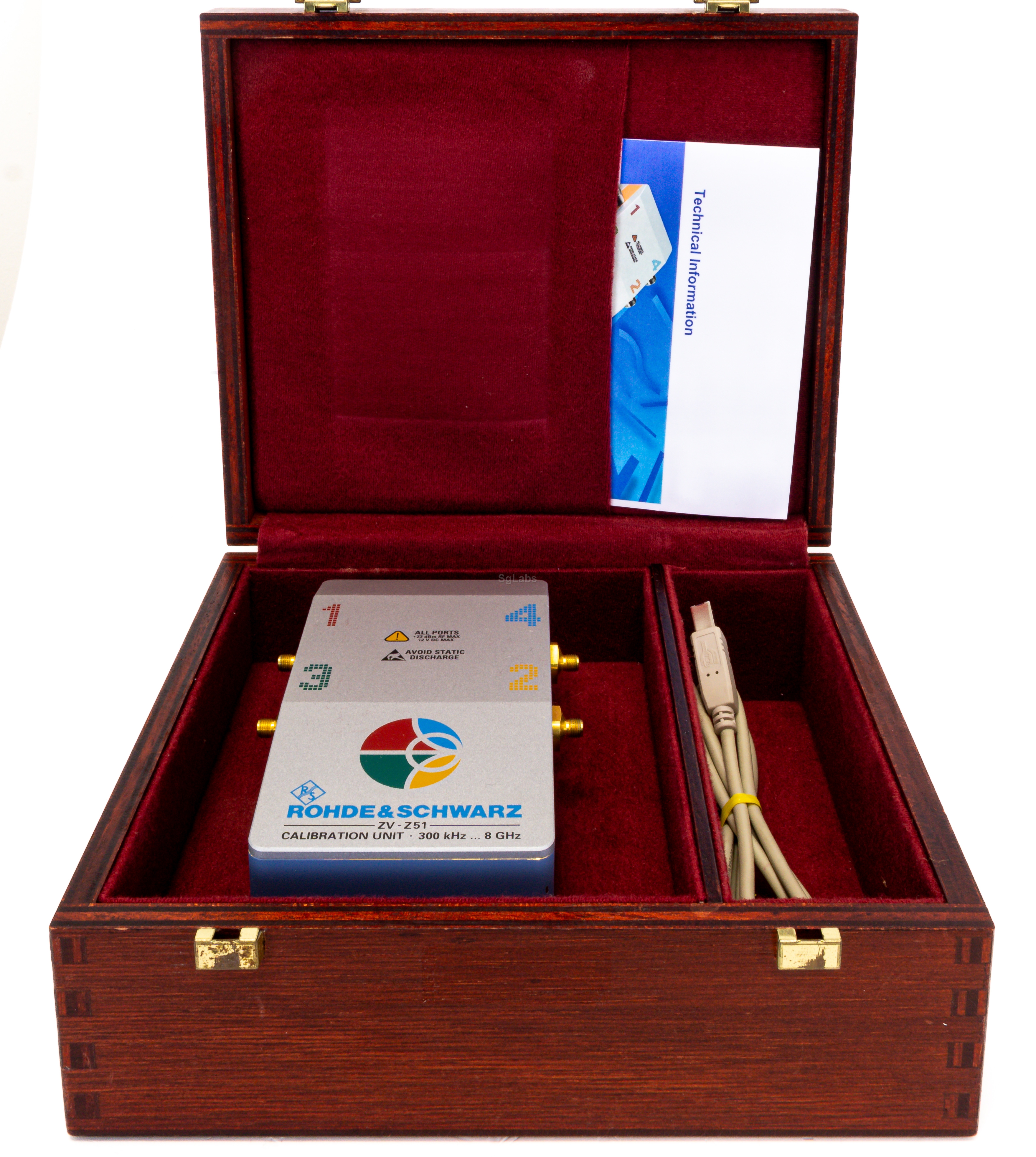

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Bandwidth: 300 kHz to 8 GHz
- Number of ports: 4

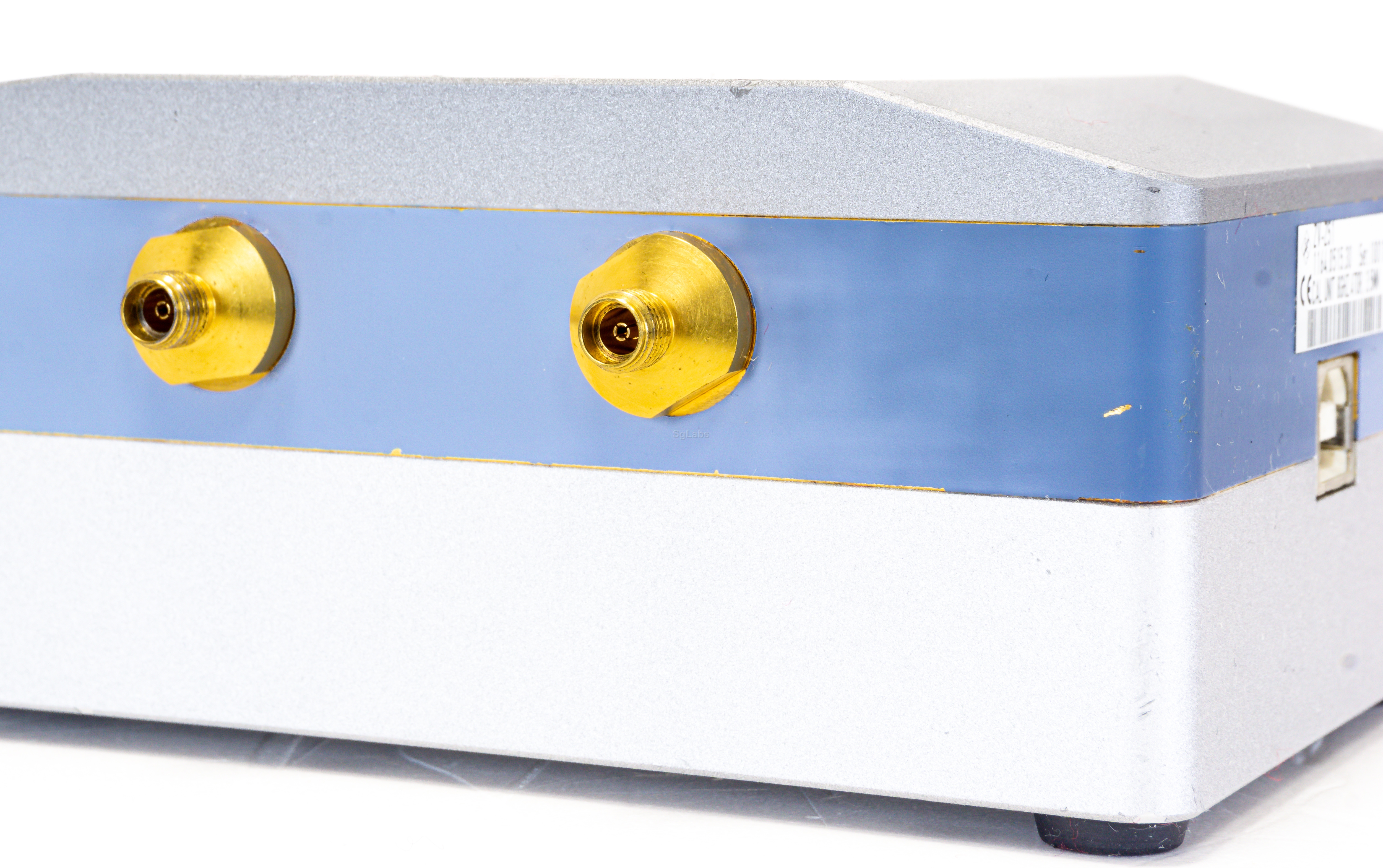

- Calibration port connector type: 3.5mm (female), 50 ohms
- Calibration time:
- 201 points, and 1 kHz: 27 s
- 401 points, and 1 kHz: 34 s
- 201 points, and 100 Hz: 67 s
- Nominal input level range: -45 dBm - +20 dBm
- Damage level: +23 dBm
- Damage DC voltage: 12 V
- Automatic detection of connected ports
- Extremely short warm-up time
- Usable with R&S ZVA, ZVT and ZVB series network analyzers
- Accurate, traceable calibration
- Reliable, traceable switching
Recharacterization of calibration unit by the user (e.g. to enable any combination of connector types on the analyzer and the calibration unit by using adapters and treating them as part of the calibration unit; requires a manual calibration kit for each connector type used on the calibration unit)
- Connector: 3.5 mm f
- Max. Frequency: 8 GHz
- Min. Frequency: 300 kHz
Price
€ 1.500,00
