Signal Hound, USB-SA124A

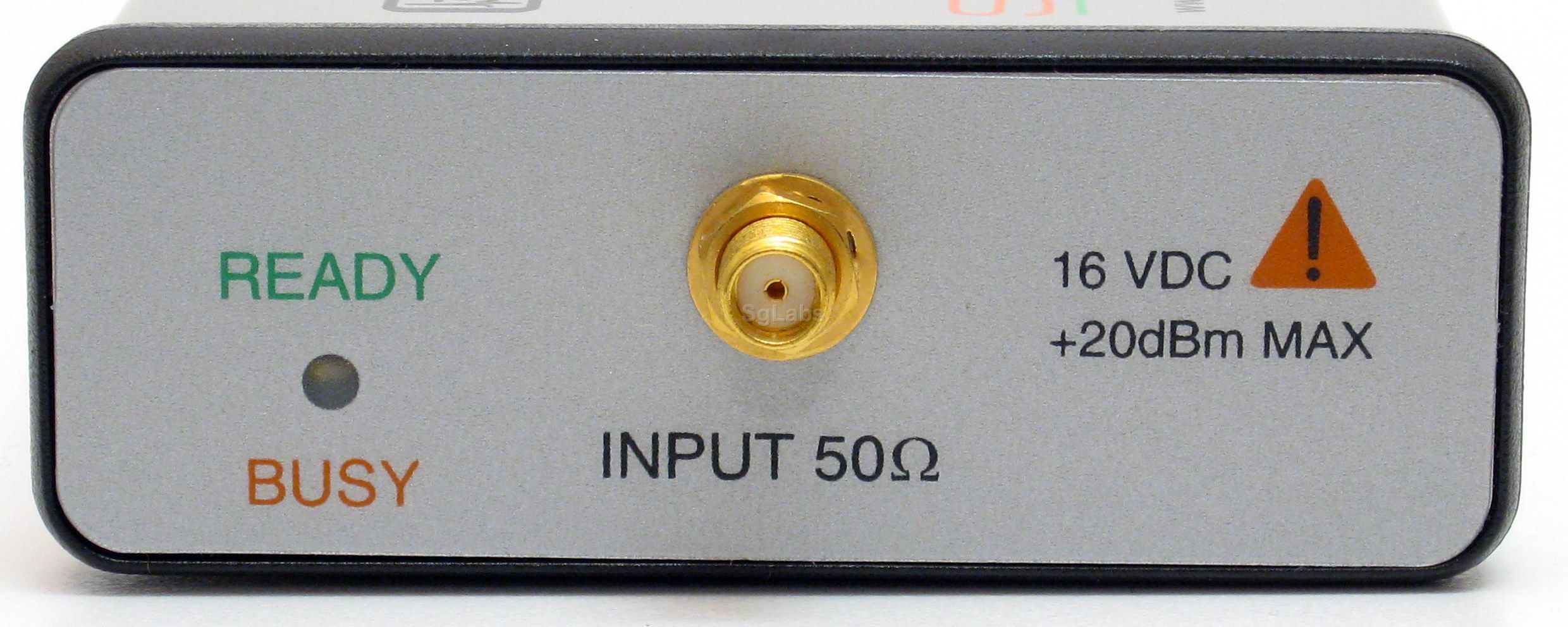

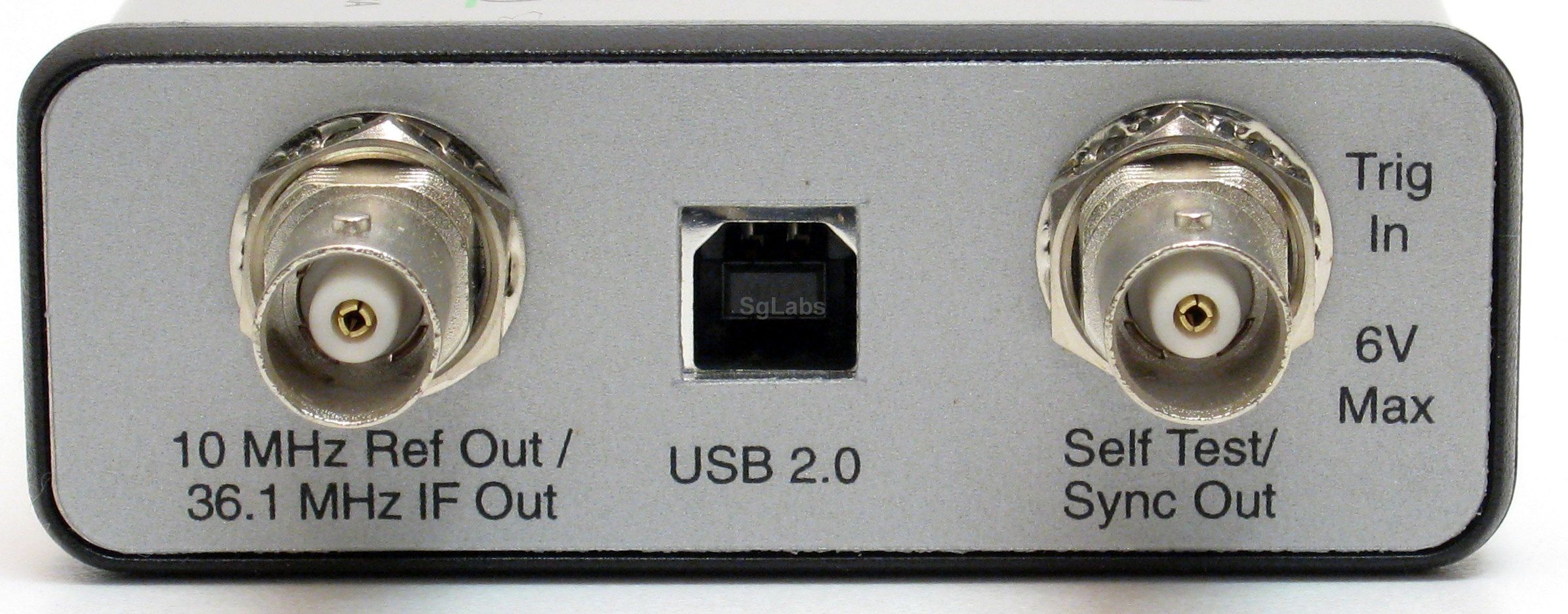

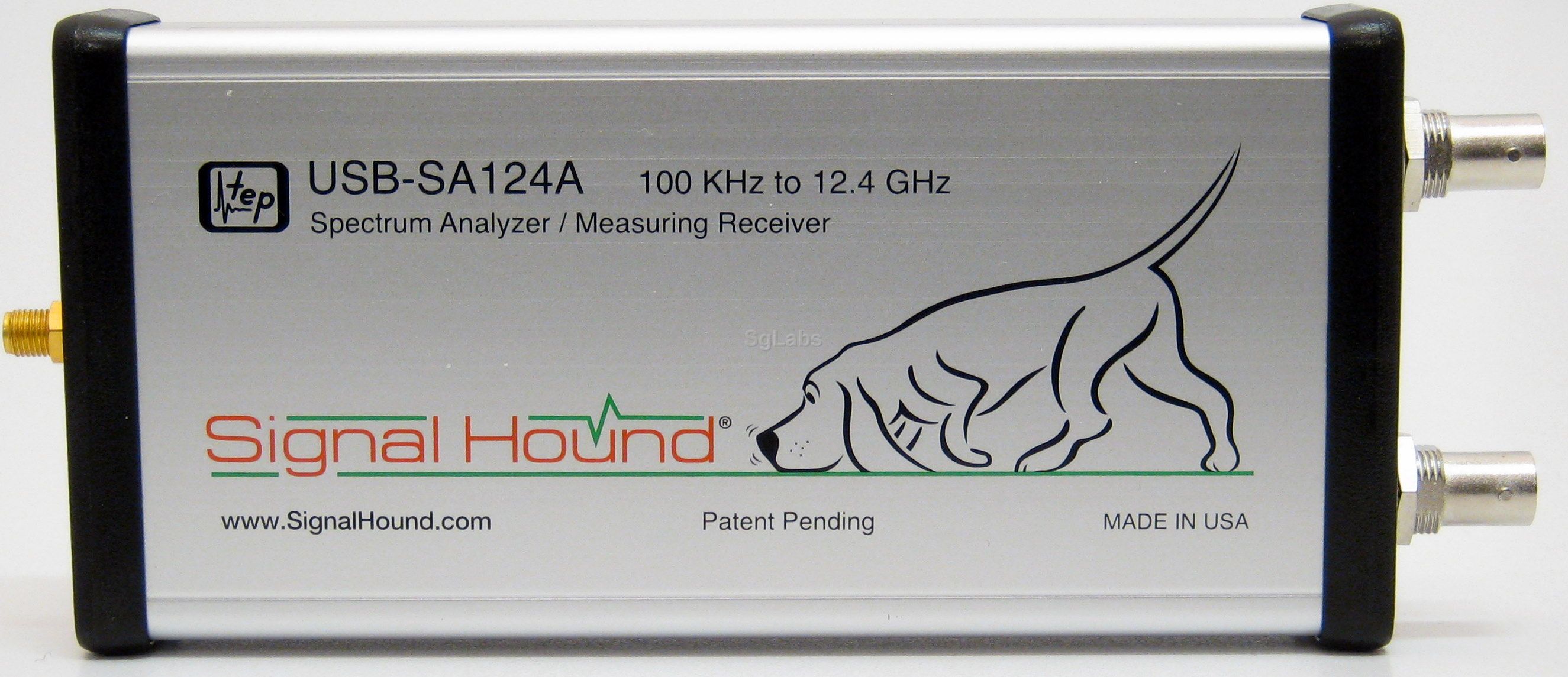

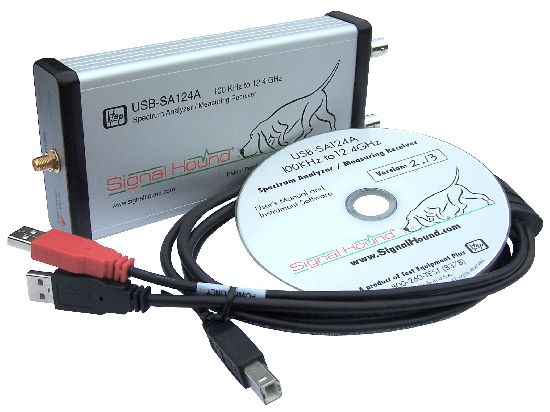

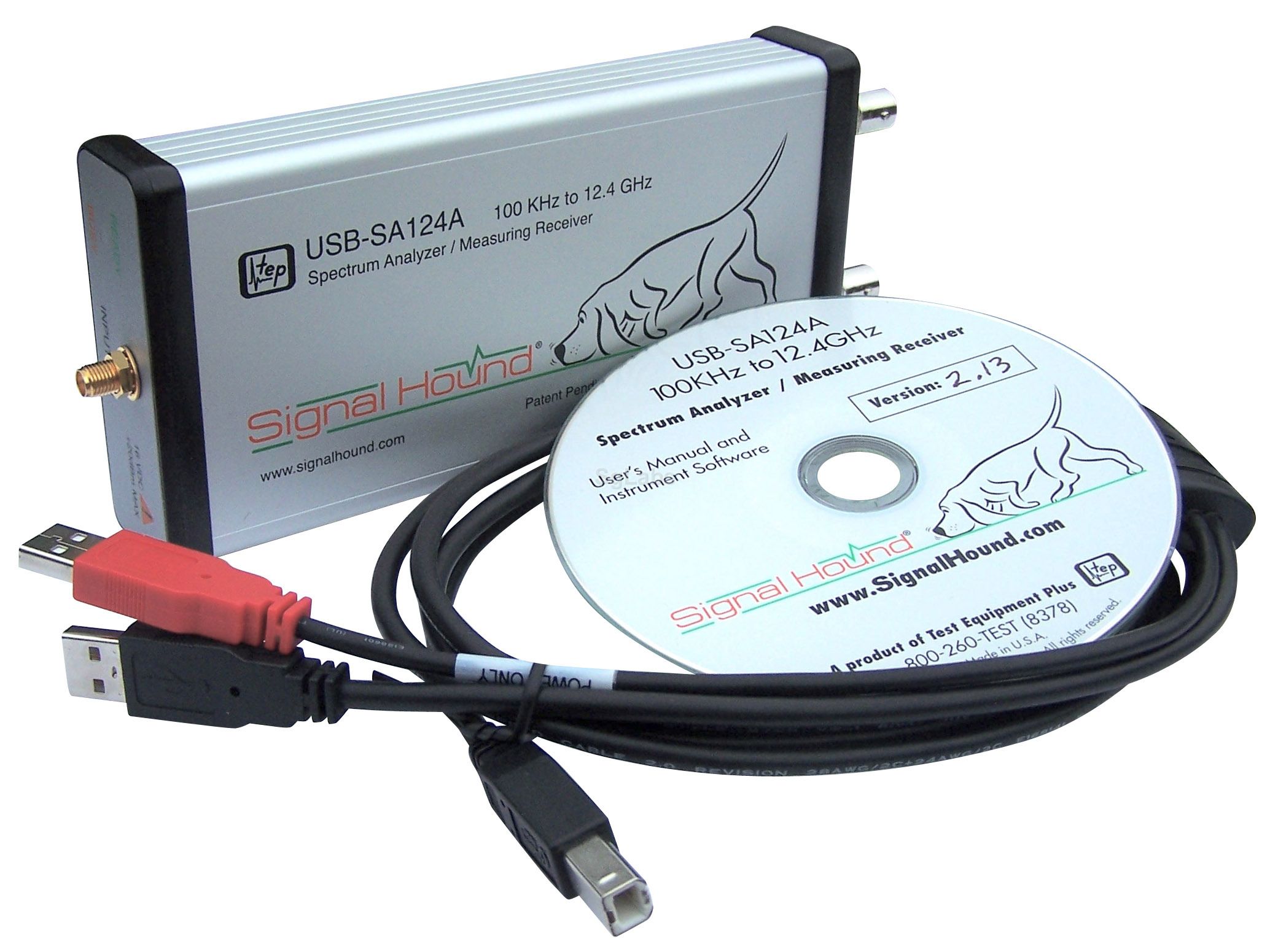

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Signal Hound USB-SA124A is a Software Defined Radio (SDR) optimized as a spectrum analyzer. It is compact, simple to use, and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists. Using recent innovations in RF technology, the Signal Hound has the sensitivity, accuracy and dynamic range you’d expect in a unit many times its cost.



Please note: The Signal Hound USB-SA124A is not intended for use with spread spectrum signals. If your modulated signal is wider than 20 MHz, amplitude accuracy is not guaranteed. Frequency-hopping, broadband, and pulsed signal measurements require special settings.



 Features



  • RF Frequency Range: 100 kHz to 12.4 GHz
  • Wide dynamic range: -151 dBm to +10 dBm
  • Resolution bandwidths (RBW) of 0.1 Hz to 250 KHz and 6 MHz
    • 6 MHz RBW available as an IF output centered at 36.1 MHz
  • Includes a High Dynamic Range Measuring Receiver
    • 0.25 dB relative accuracy
    • 0 dBm to -125 dBm, 100 kHz to 1 GHz
    • 0 dBm to -115 dBm, 1 GHz to 4.4 GHz
    • Adjustable digital audio filters
    • Accurate AM and FM measurements
  • No external power supply needed - draws power from a dual USB cable
  • Powerful Digital Signal Processing happens on the PC
  • Software and Hardware included for one low price
  • Additional Third-Party Software Packages are available
    • TSCM software is available, and is being marketed
      as "Kestrel TSCM Software" through www.pdtg.ca
  • Write your own software with our free Application Programming Interface (API)
    • I/Q Data up to a 240 KHz bandwidth
    • Frequency Sweeps up to 140 MHz per second
  • Compatible with Windows XP and Windows 7 operating systems
  • AM and FM Demodulation Measurements
  • USB 2.0 communications at 480 MBPS
  • Demodulates AM/FM/SSB/CW audio in real-time
  • Automation capability using our API
  • Measures 8 inches long
  • Weighs 12 ounces
  • Tracking option



  • Demodulator: AM-FM-SSB-CW real time
  • Max. Frequency: 12.4 GHz
  • Min. Frequency: 100 kHz
  • Max. Level: 10 dBm
  • Min. Level: -152 dBm
  • Min. Resolution: 1 Hz
  • Tracking generator: option
