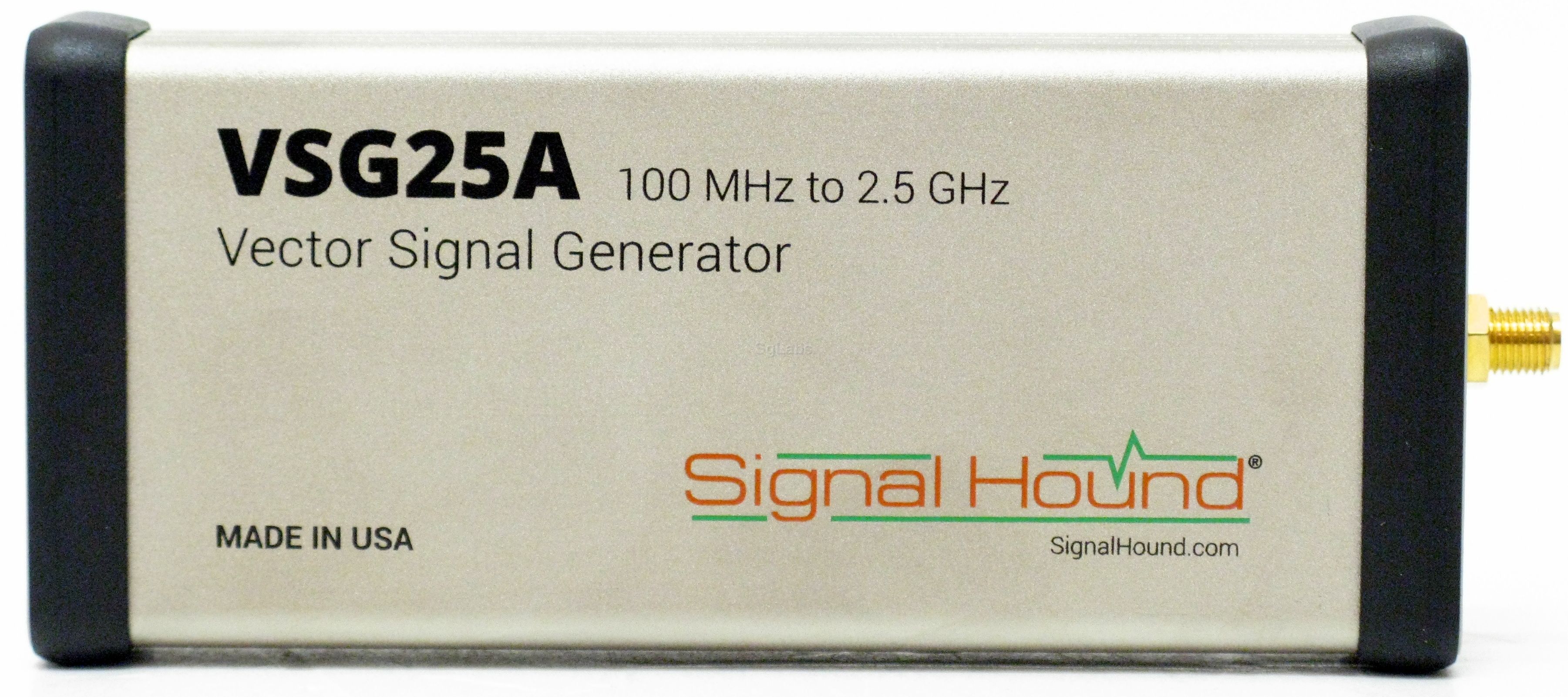

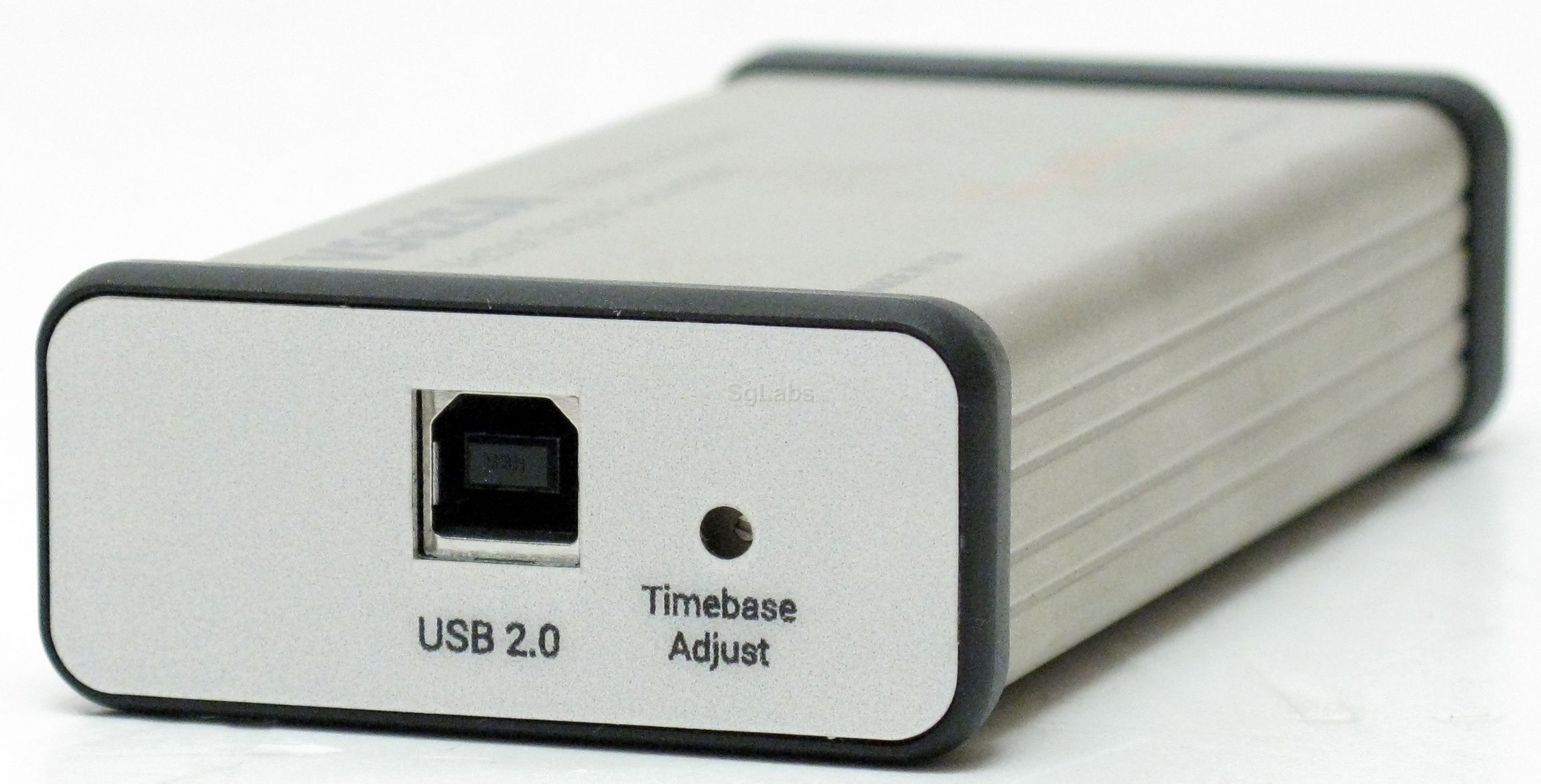

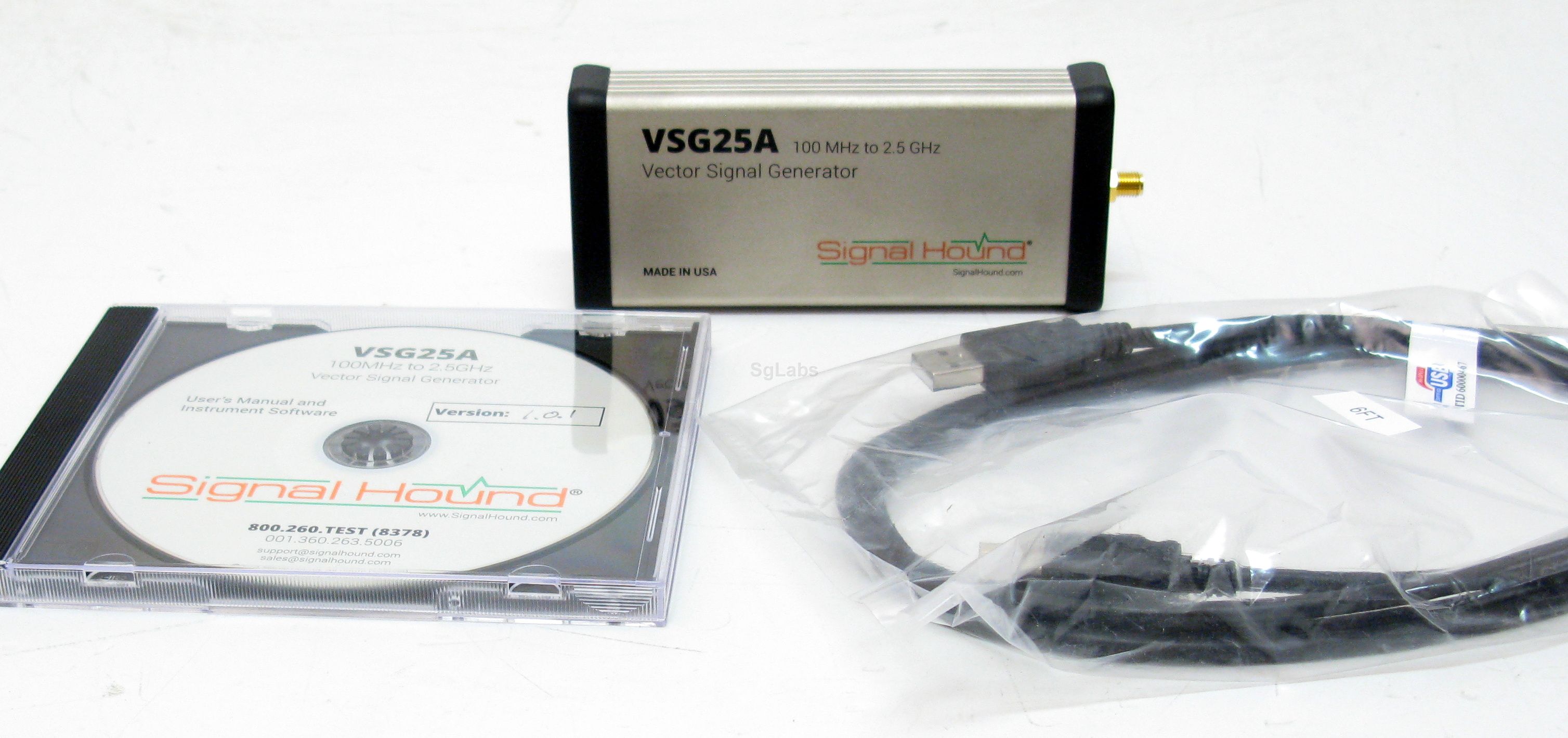

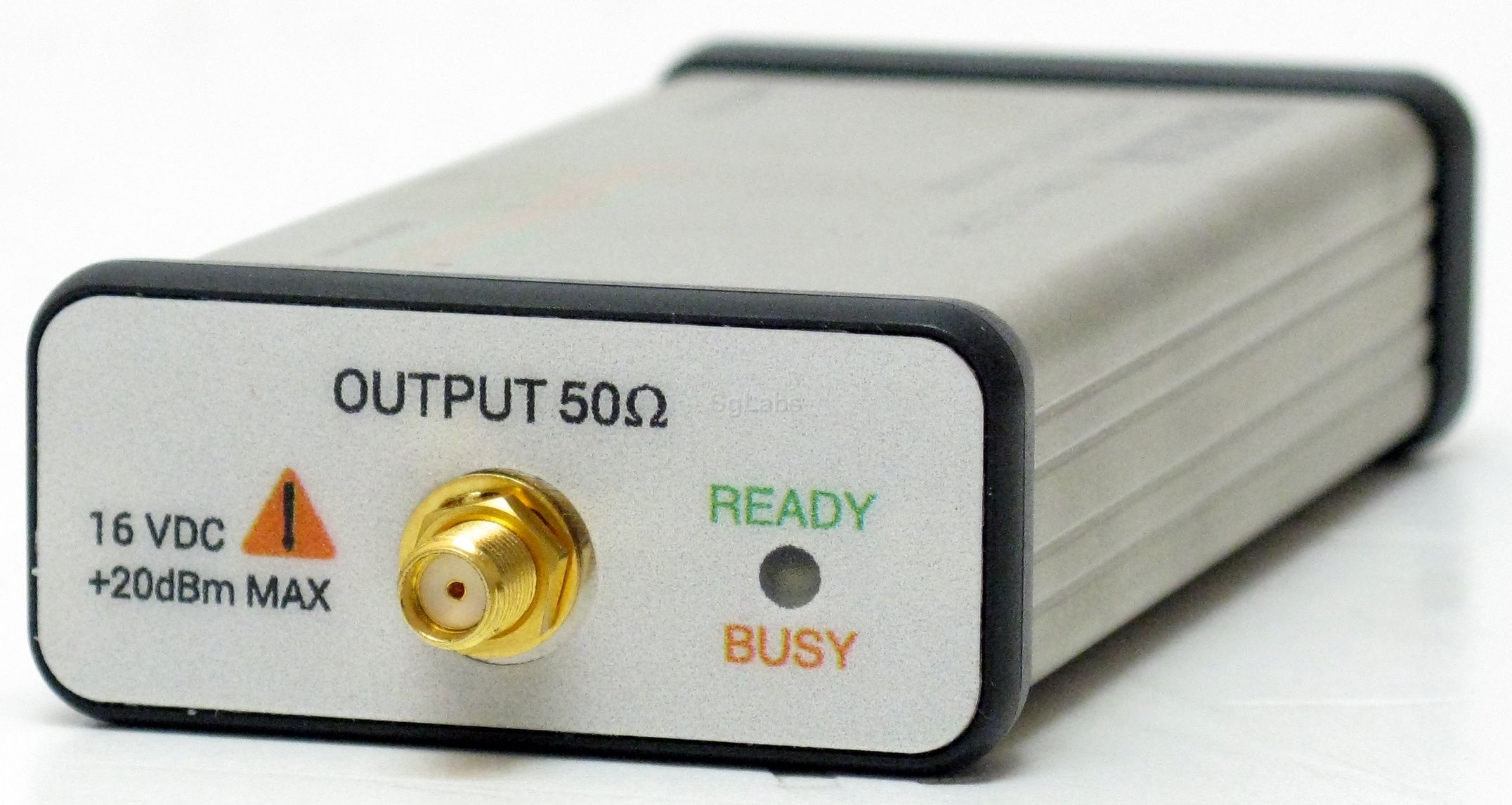

Signal Hound, VSG25A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The VSG25A is a 100 MHz to 2.5 GHz vector signal generator, featuring a 12-bit I/Q baseband arbitrary waveform generator which can be clocked at virtually any frequency from 54 kHz to 180 MHz, and includes a 4096×16 bit pattern buffer for built-in or custom modulation.

The VSG25A vector signal generator does have some limitations. The pattern buffer is small and cannot be upgraded. There is no reconstruction filter on the I/Q baseband, resulting in out-of-band spurious signals, and there is a single 2.7 GHz low pass filter on the RF output, so 3rd harmonics below 3.6 GHz may need to be filtered externally. If these are not show-stoppers for you, the VSG25A is an unbeatable value.



Read This! The VSG25A is named Microwave Journal’s MVP for the month of May, 2015! Read the full article (1.8 MB PDF).

Features
The included software automatically generates:

  • CW: 100 MHz to 2.5 GHz, -40 dBm to +10 dBm
    • Unspecified operation down to 80 MHz, or -70 dBm to +13 dBm
  • AM / FM: 30 Hz to 40 MHz modulation rates, sine, triangle, square, ramp
  • Pulse: 6 ns to 25 ms width, 12 ns to 1 second period
  • Multi-tone: Up to 1023 tones with optional center notch
    • Use random phase + notch for Noise Power Ratio testing
    • Use parabolic phase for best signal / noise
  • PSK: BPSK, DBPSK, QPSK, OQPSK, DQPSK, π/4 DQPSK, 8-PSK, D8PSK, 16-PSK
    • 4k to 45M symbols per second
    • Optional raised cosine, root raised cosine filtering
    • Up to 512 symbols, streamed continuously in a loop
    • Binary symbol editor features 1-click insertion of PN7 / PN9 sequences
  • QAM: QAM-16, QAM-64, QAM-256 (same features as PSK)
  • ASK / FSK: 4k to 45M symbols per second
    • Optional Gaussian filtering
    • Up to 512 symbols, streamed continuously in a loop
  • Sweep
  • Arbitrary Custom Modulation
    • Load a CSV file with I and Q values, specify center frequency, amplitude, pattern length (up to 2048), pattern period (up to 65535), and clock rate.
  • Weight: 0.64 Kg
  • Dimensions: 28.7 x 15.2 x 10.1 cm
  • Max frequency: 2500 MHz
  • Minimum Frequency: 100 MHz
  • Modulation: AM-FM-Pulse-PSK-FSK
  • Max. Output level: 10 dBm
  • Min. output level: -40 dBm
  • Resolution: 1 Hz
Price
 € 700,00
