Sorensen Ametek DCS20-50 Power supply

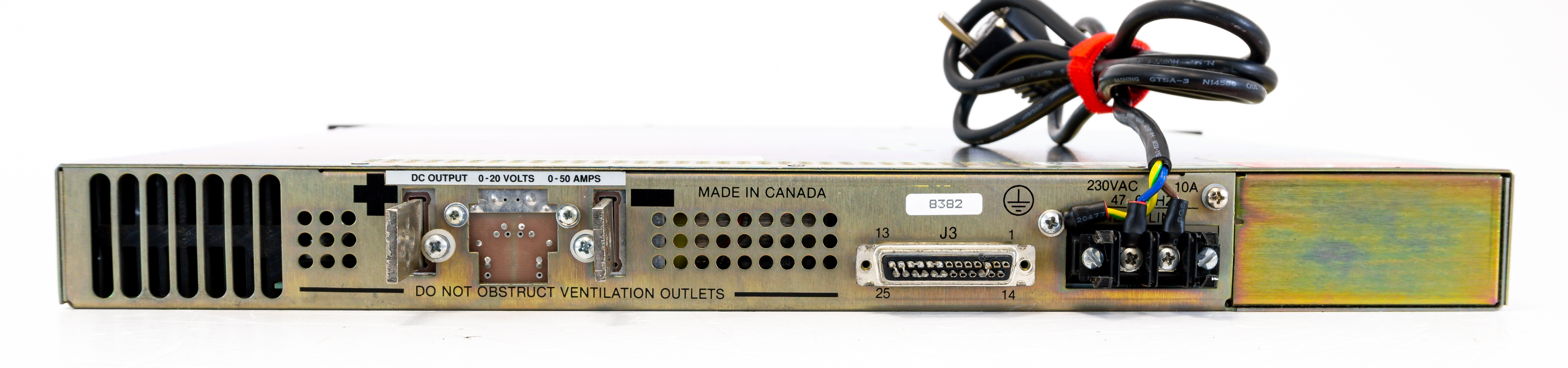

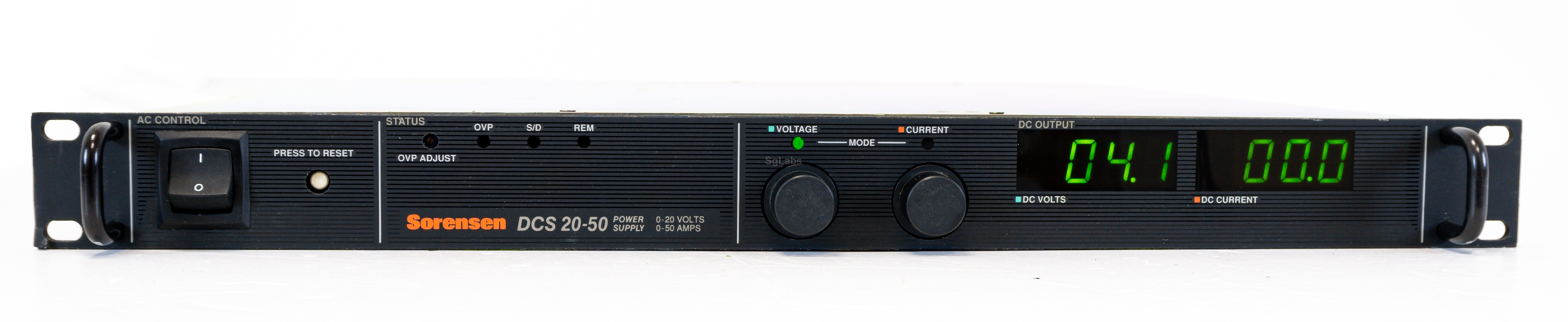

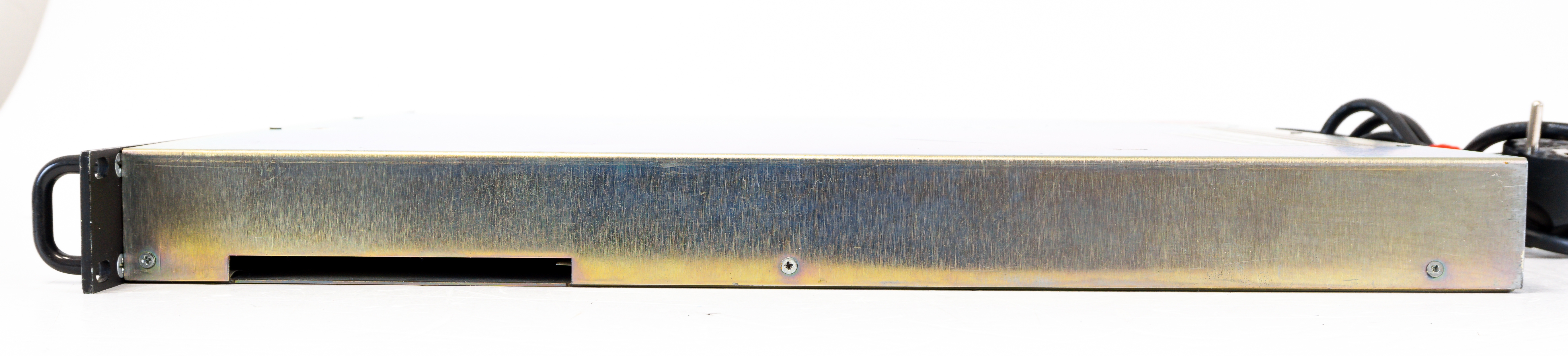

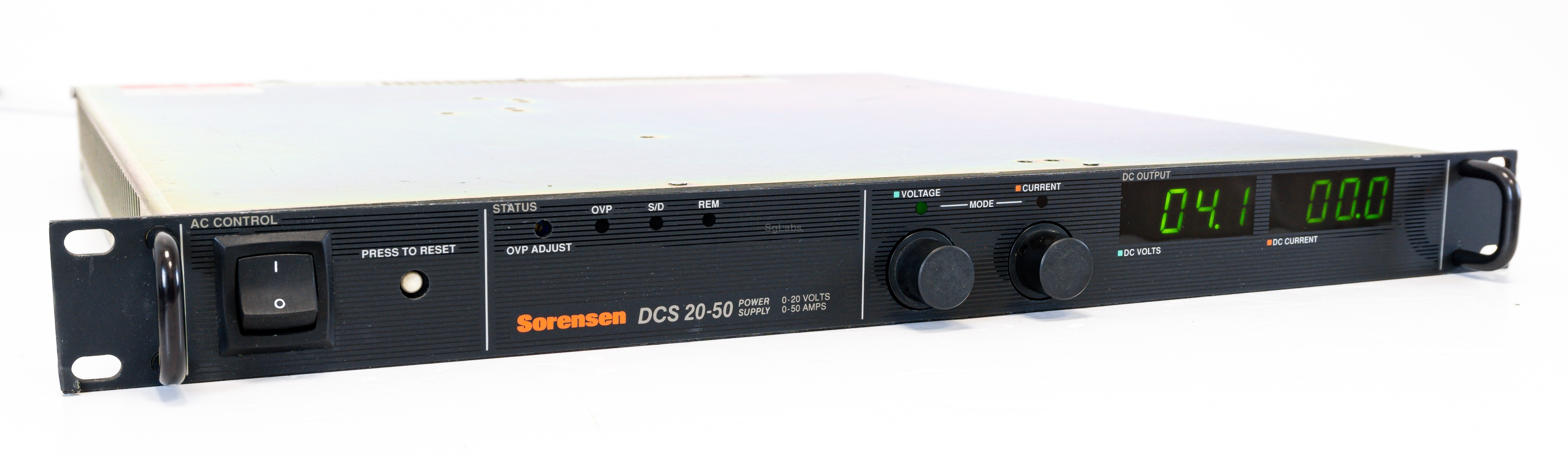

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Sorensen DCS Series (hereafter DCS Series) is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing  test and burn-in of automotive components, avionics electronics, telecommunications and  consumer products to beam steering, process control and laboratory R&D use. The DCS Series is comprised of 1kW, 1.2kW and 3kW programmable power supplies utilizing switchmode technology to achieve high power density in a low profile chassis. The design platform provides a highly reliable power supply for years of constant use. The unique design is available in a variety of maximum voltages from 8V to 600V and maximum currents from 1.7A to 350A with low ripple and noise.
This user-friendly platform can be controlled from the front panel with 10-turn potentiometers to adjust voltage, current and OVP settings. LEDs indicate over temperature, remote programming, shutdown and overvoltage protection Remote control options allow full computer
control through IEEE-488 (option M9C), LXI Standard Compliant* Ethernet LAN (option M130) or RS-232 (options M9C, M130)
Features
  • Voltage range 0 - 20 V
  • Current Range 0 - 50 A
  • Max power 1 kW
  • Display LED
  • Constant Current Mode (CC)
  • Max current: 50A
  • Display: LCD
  • Interface: Analogic
  • Max. Voltage: 20V
  • Min. Voltage: 0 V
Price
 € 550,00
