TDS520B Digital Oscilloscope 2 channel 500 Mhz

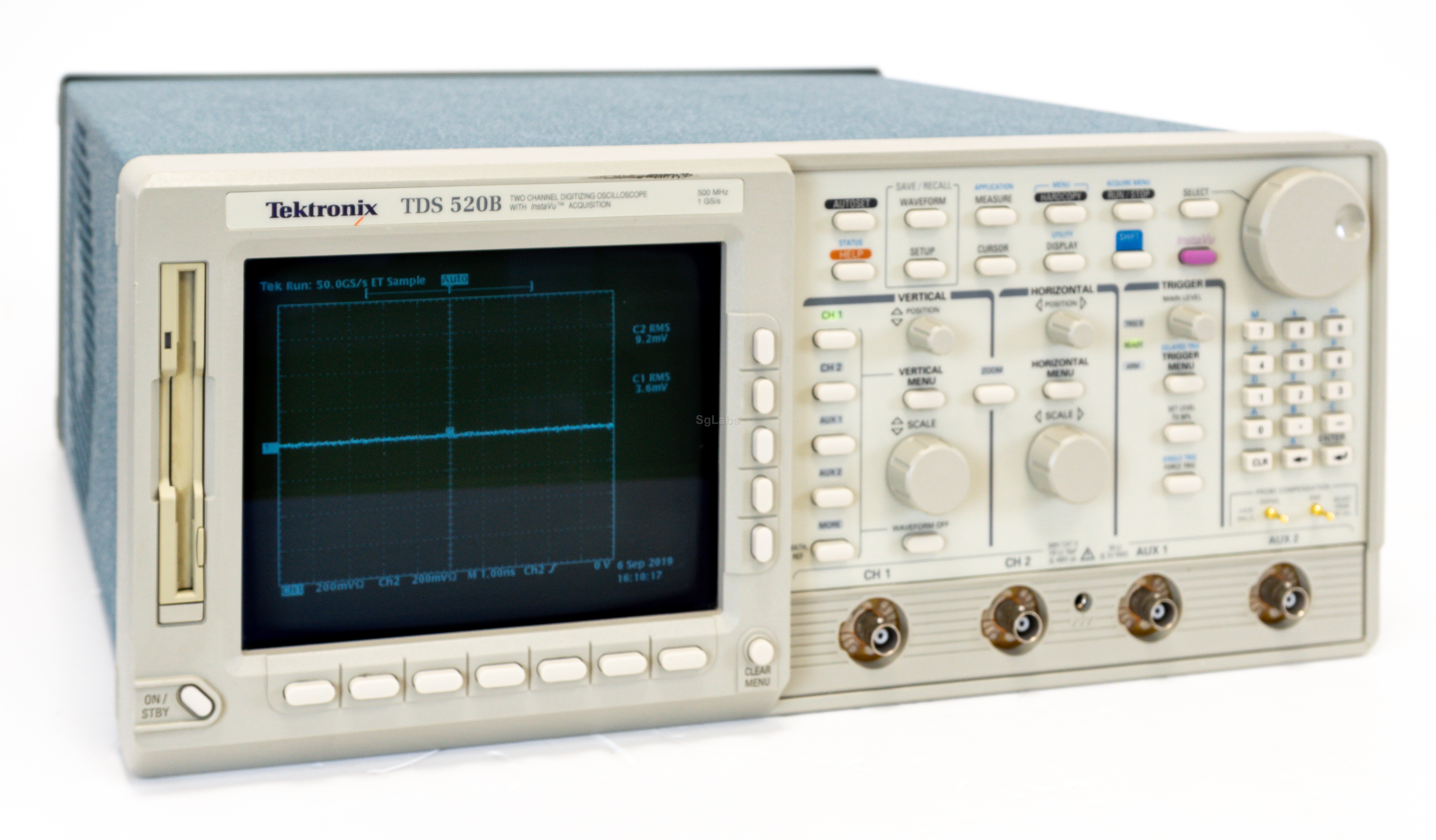

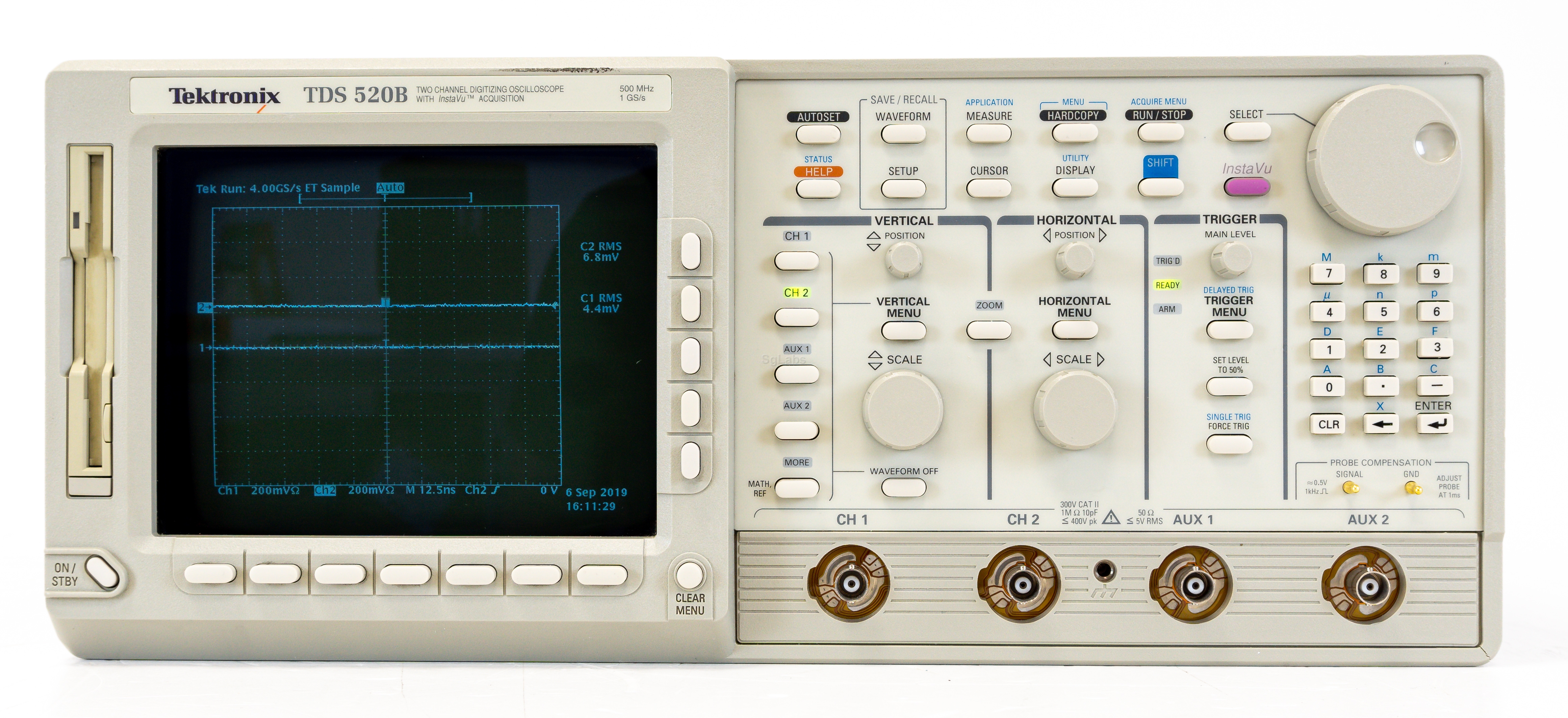

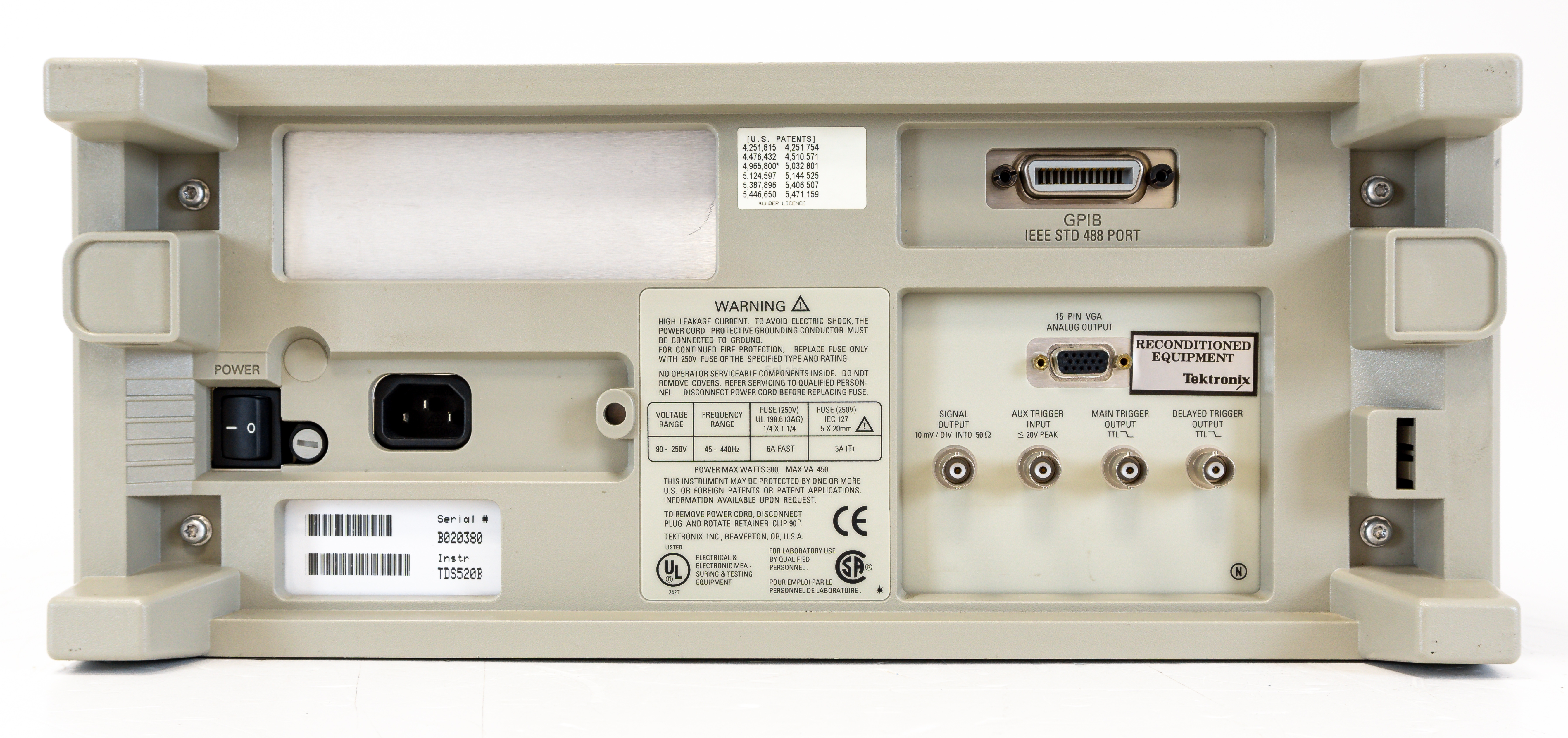

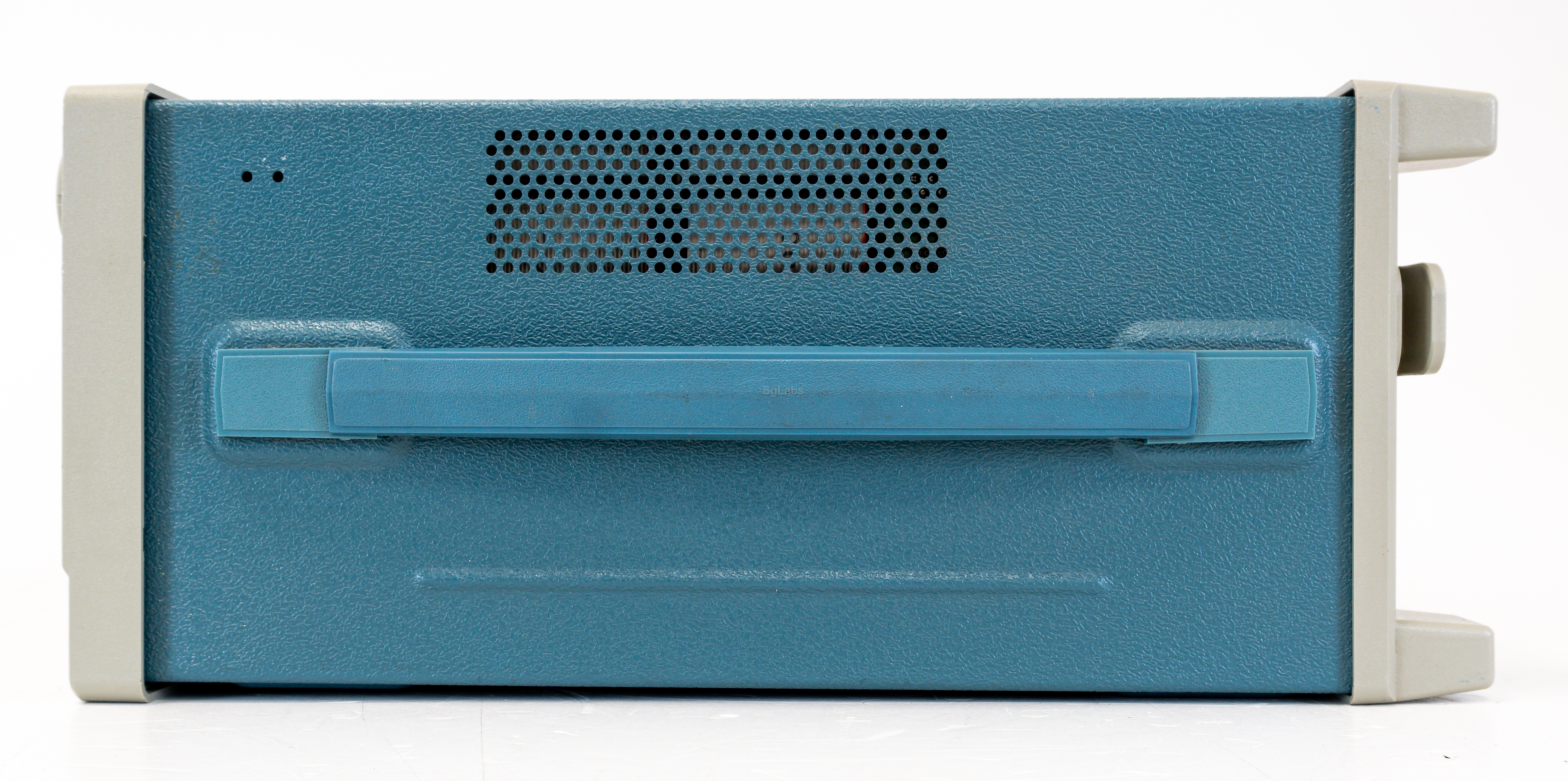

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
TDS520B Digital Oscilloscope 2 channel 500 Mhz
Features
  • InstaVu™ Acquisition (100,000 wfms/sec capture rate)
  • 500-MHz Bandwidth
  • Sample rates to 2 GS/s
  • Two and Four Input Channels
  • Pulse Width, 1-ns Glitch, Runt, Pattern, and State Triggering
  • 1 mV/div - 10 V/div Sensitivity
  • Infinite- and Variable-Persistence Displays
  • Record Lengths to 50,000 Points (Extendable to 250K on TDS520B; 500K on TDS540B)
  • 8-Bit Vertical Resolution and up to 12 Bits with Hi-Res Acquisition Mode
  • 3.5-inch DOS Floppy Disk Drive (Optional)
  • Vertical Accuracy to 1%
  • Tek TriStar™ (DSP) Processor
  • Slew Rate, Setup, and Hold Violation Triggers, and Time-Out Triggering
  • Waveform Pass/Fail Testing
  • Dual Window Zoom
  • Channel Deskew
  • Direct Readout in "Amperes" and "Watts" (with P5200 and TCP202 Probes)
  • 25 Automatic Measurements
  • Full GPIB Programmability
  • Desktop-Publishing Outputs
  • HDTV Video Trigger Option
  • Segmentable Acquisition Memory
  • VGA Output
  • Channels: 2
  • BandWidth: 500 MHz
  • Sampling: 2 GS/s
