Tektronix, TDS3014

You are here: Oscilloscope » Digital

Tektronix, TDS3014

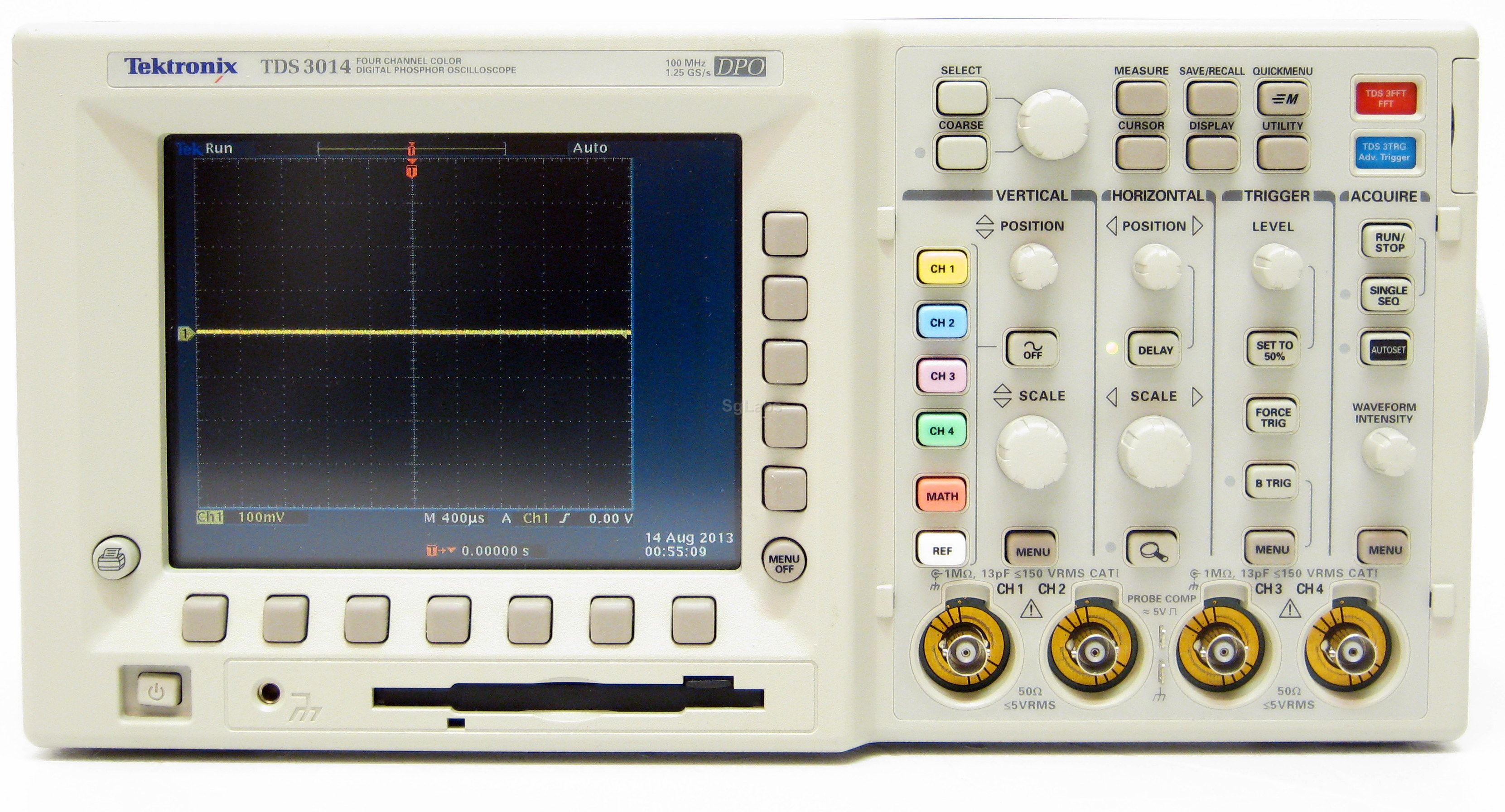

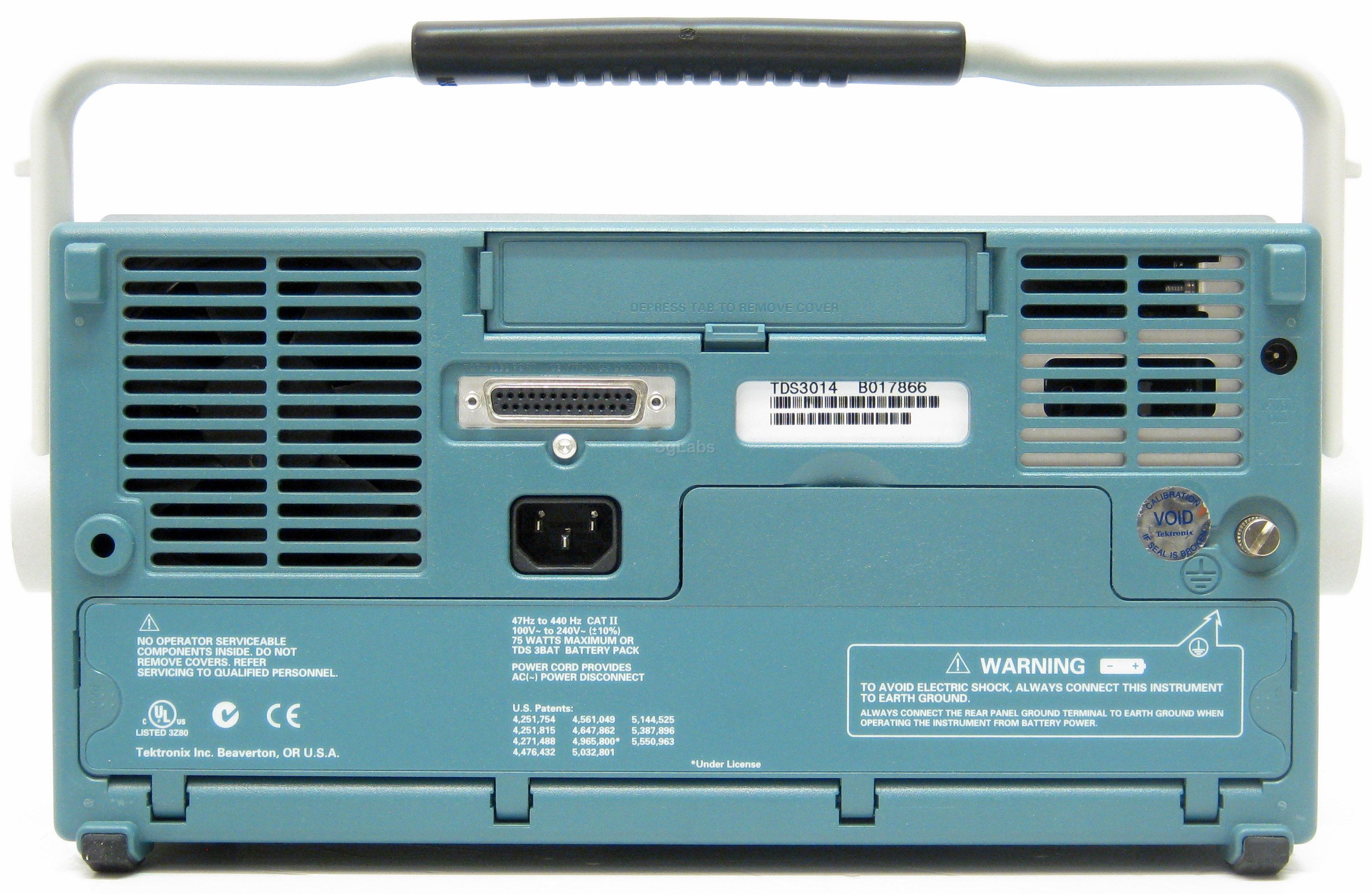

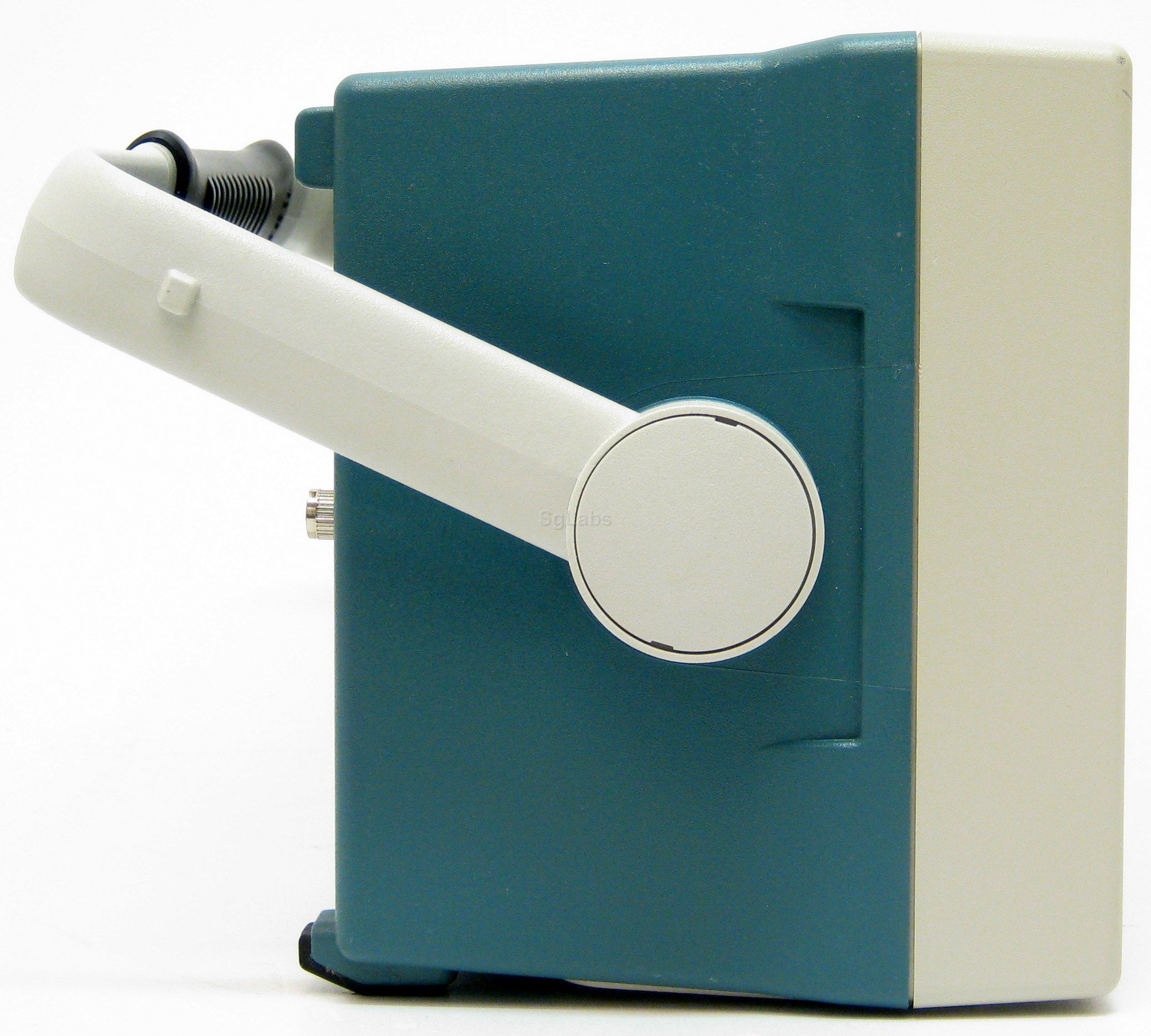

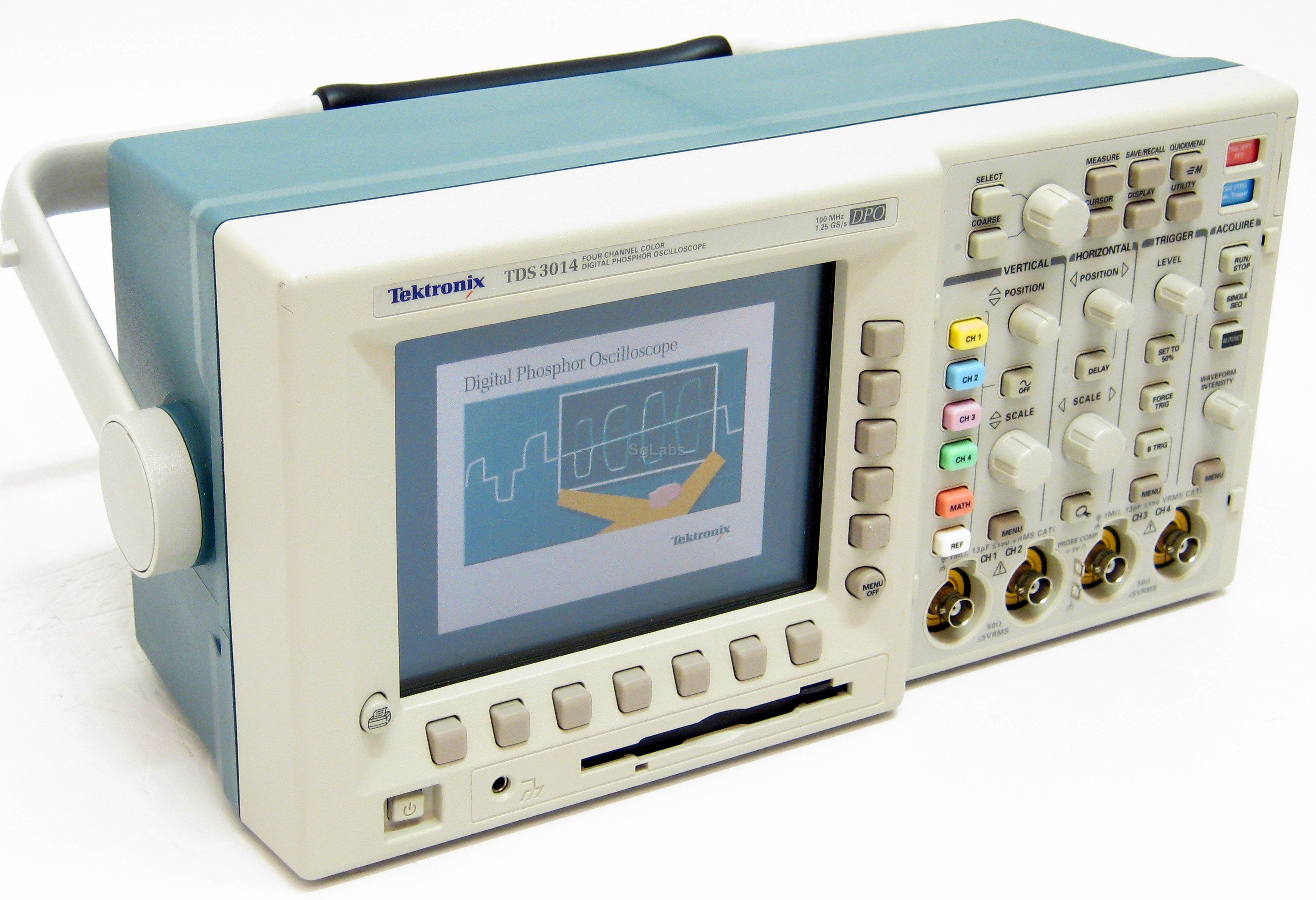

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The TDS3000 oscilloscopes are the lowest priced, most portable Digital Phosphor Oscilloscopes (DPOs). Now every design engineer and technician can take advantage of the tremendous benefits of DPOs. DPOs deliver a new level of insight that makes dealing with complex signals simple. DPOs display, store and analyze in real-time three dimensions of signal information: amplitude, time and distribution of amplitude over time.
Benefits of DPO

DPOs have an intensity graded color display that provides information about the frequency of occurrence of signal amplitudes and widths. This helps the user locate and characterize waveform anomalies that can be elusive on traditional Digital Storage Oscilloscopes. The fast update rate of DPOs also makes it easier to capture and display infrequent waveforms or waveform variations.
Quick to Learn and Quick to Use

The TDS3000 Series graphical user interface offers a new operating mode called QuickMenu. This quick access user interface makes the main oscilloscope controls accessible with a push of a single button. Included with every scope is an On-line Tour disk that runs in the oscilloscope. This disk gives an overview of the product's operation and capabilities.
Flexible Features for Every Application

The portable form factor allows the instrument to go wherever it is needed. The Communication and Application Modules enable the instrument to be configured for specific applications or upgraded without returning it to the manufacturer. The TEKPROBETM Level II interface provides power to a range of application specific accessories.
Features
  • 100 MHz Bandwidths
  • Sample Rates up to 1.25 GS/s
  • 4 Channels
  • Full VGA Color LCD
  • Built-in Floppy Disk Drive For Easy Storage and Documentation
  • 21 Automatic Measurements
  • Centronics Port Standard on all Models for Quick, Convenient Hardcopies
  • 9-Bit Vertical Resolution
  • Multi-language User Interface
  • QuickMenu User Interface Mode for Quick, Easy Operation
  • Advanced Triggers such as Glitch, Width and Logic Standard on 4 Channel Models
  • Telecommunications Mask Testing (TMT)
  • Fast Fourier Transform (FFT) for Frequency and Harmonic Analysis Standard
  • Extended Video Application Module
  • Support for Active Probes, Differential Probes and Current Probes that Provide Automatic Scaling and Units
  • Channels: 4
  • Display: LCD color
  • BandWidth: 100 MHz
