Troneer, RA-1728A

You are here: RF Component » Attenuator

ZOOM

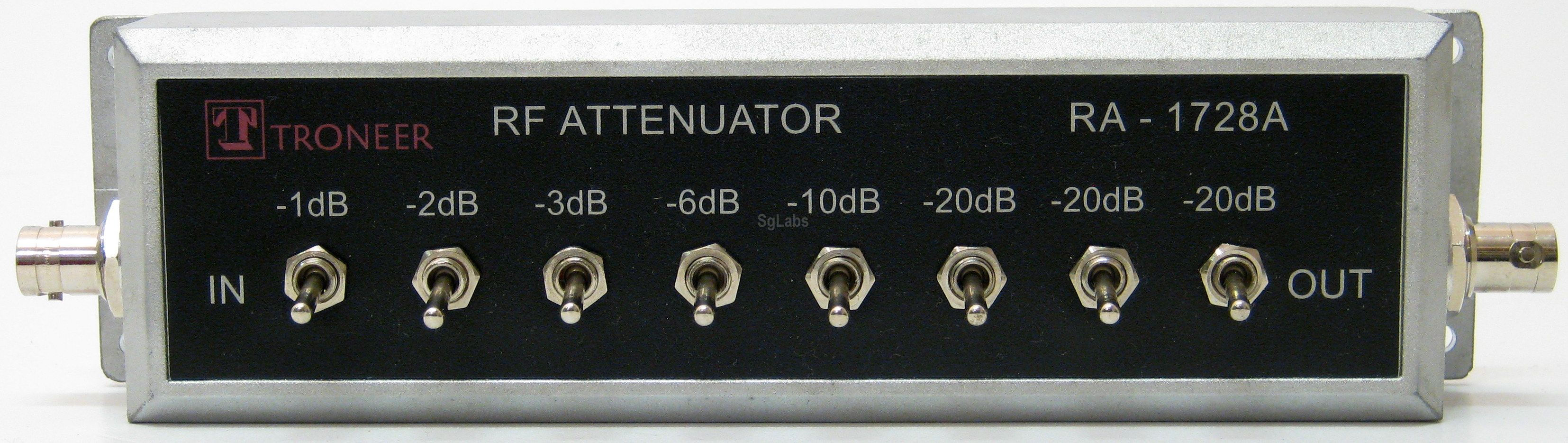

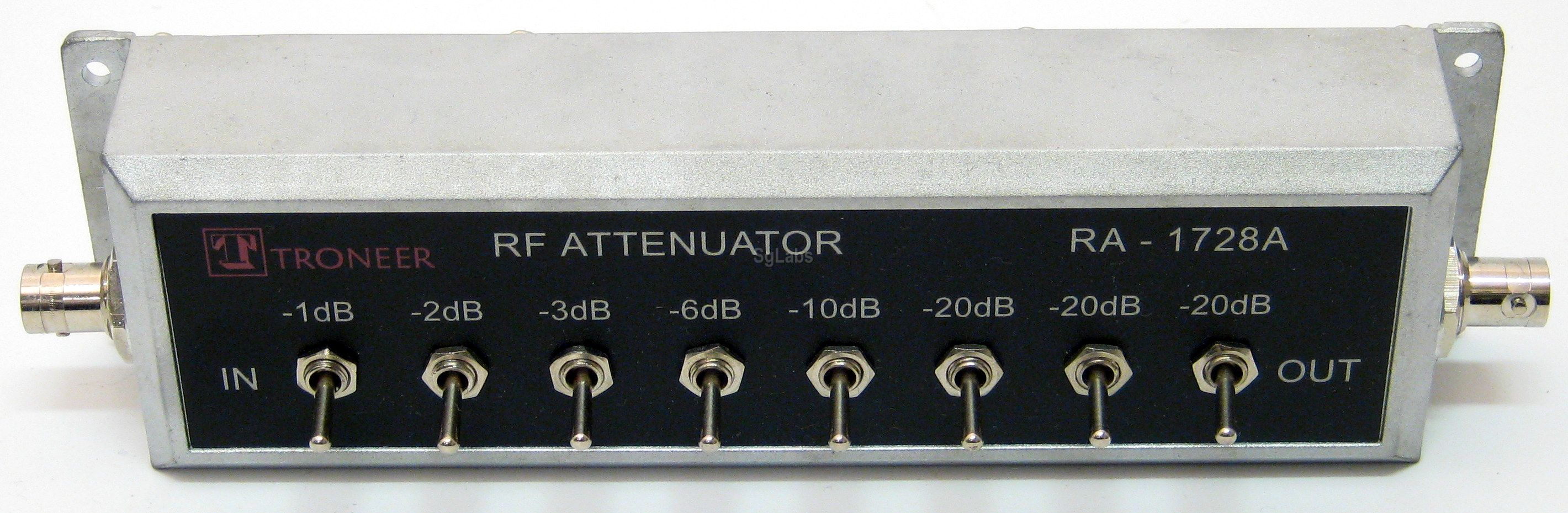

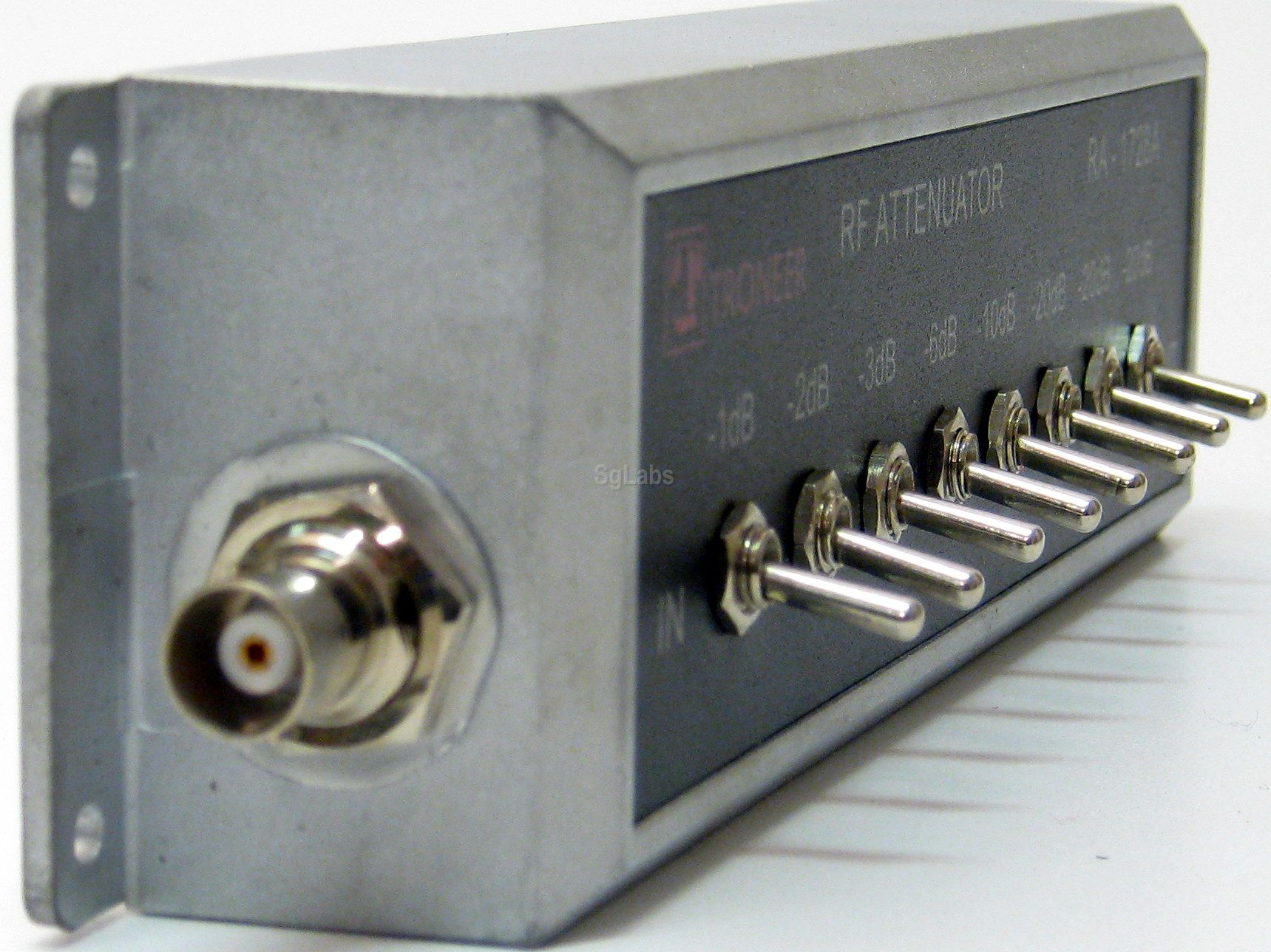

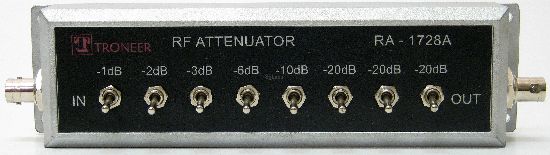

Troneer, RA-1728A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
  • Input/Output Impedance : 50 Ohm
  • Frequency Response: DC-250MHz
  • All steps: 8 steps, 82 dB
  • Step Range(dB): 1,2,3,6,10,20,20,20
  • Over all accuracy: +/- 0.3dB
  • Insertion loss:
  • Max. VSWR: 1.2
  • Max. Input: 0.25W
  • Attenuation: 82 dB (1,2,3,6,10,20,20,20)
  • Connector: BNC
  • Max. Frequency: 250 MHz
  • Min. Frequency: DC
  • Max. power: 0.25 Watt
  • VSWR / RL: 1.2
