TTi, TGA1242

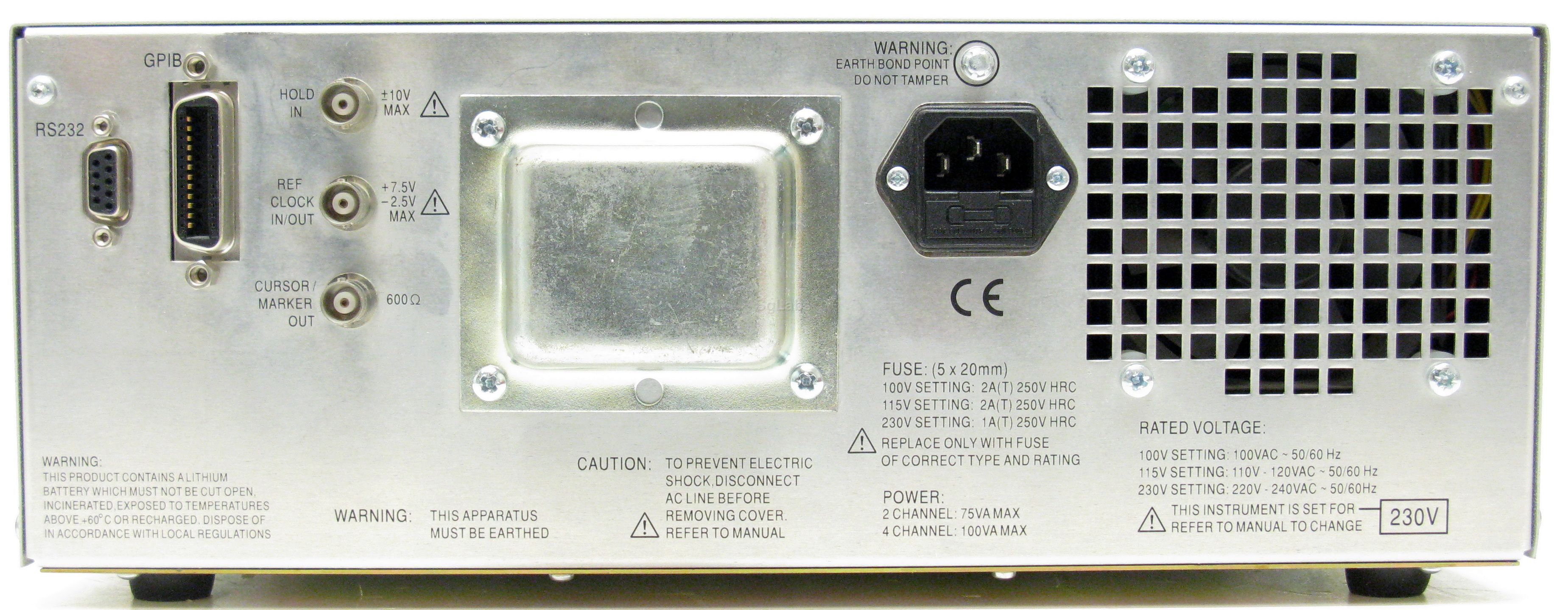

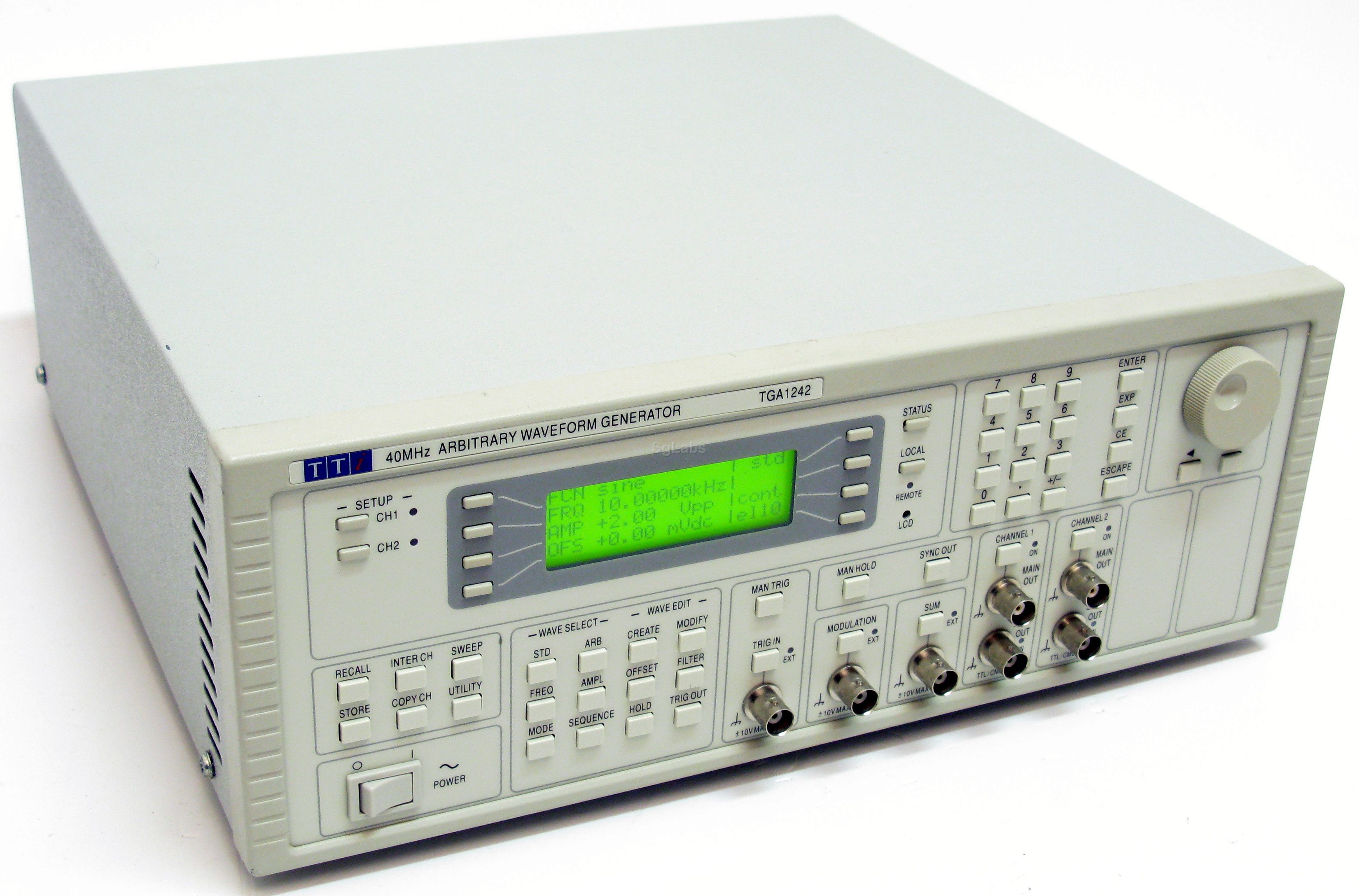

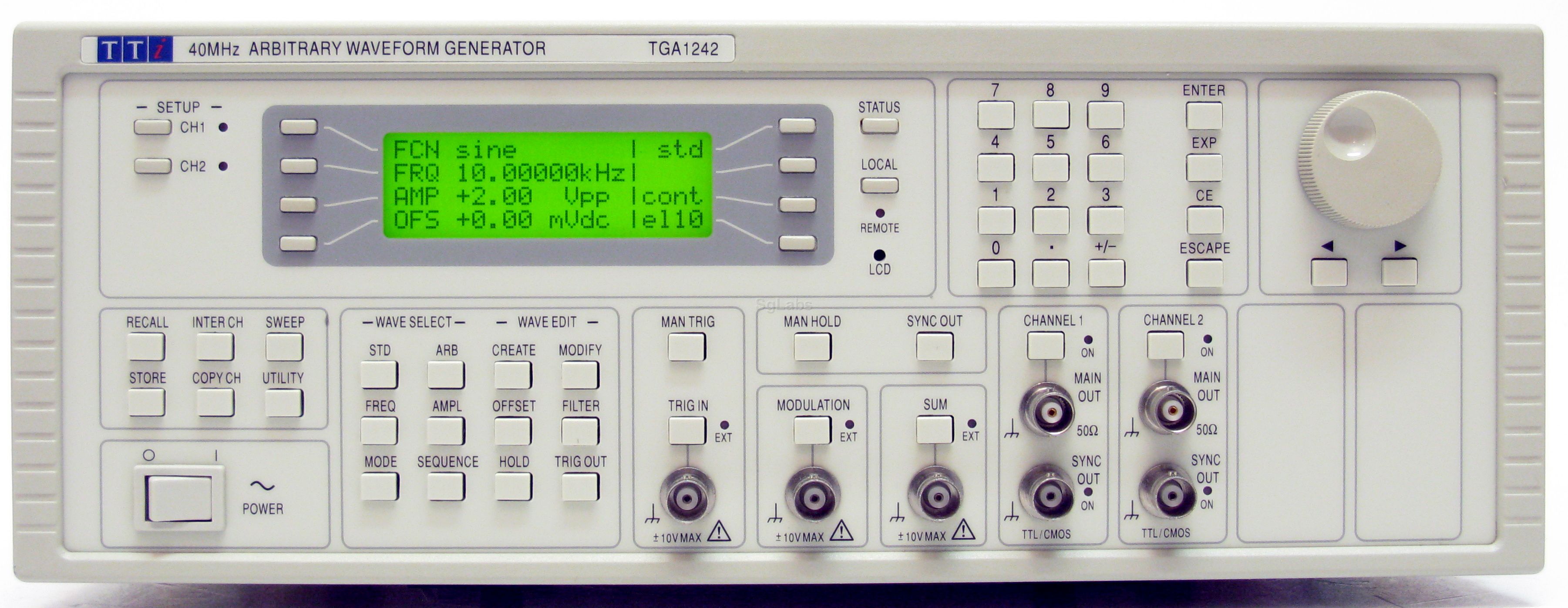

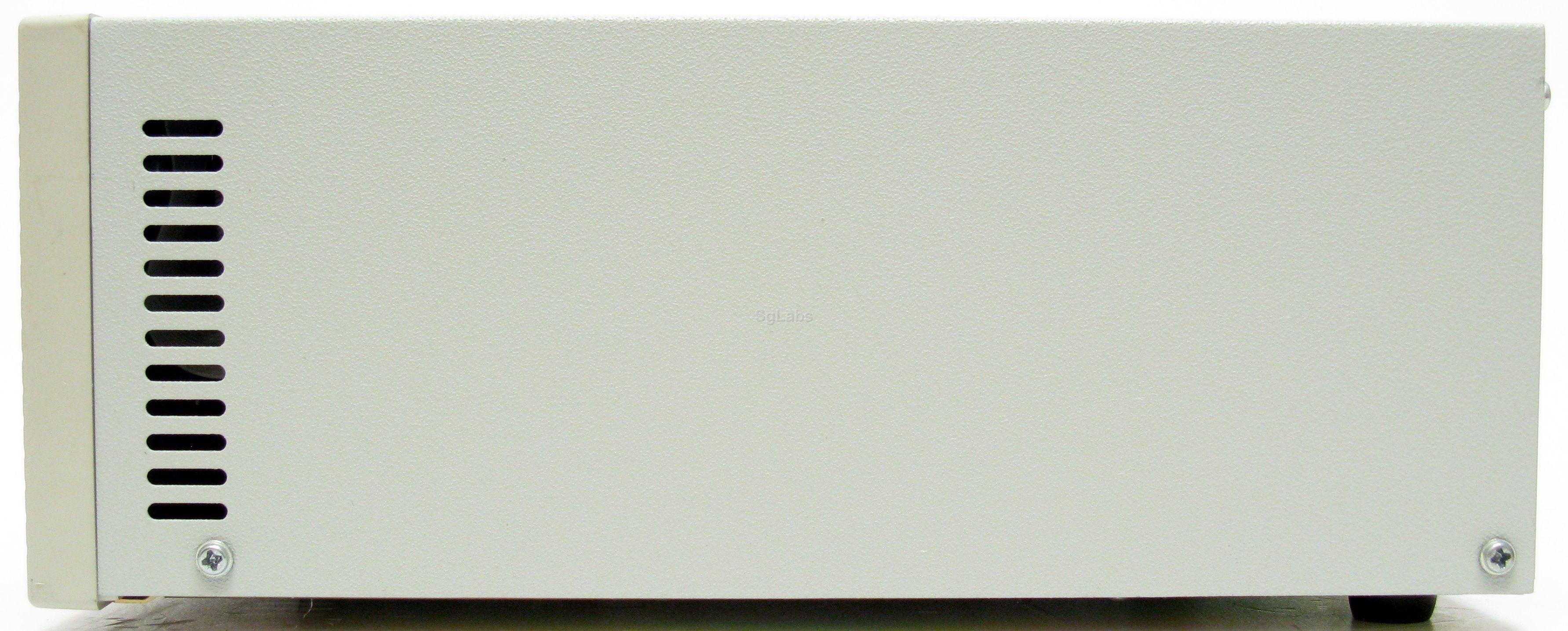

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The TGA1200 series combine a true variable clock arbitrary generator with a high performance DDSfunction generator and pulse  generator in a single instrument. The TGA1242 - 40MS/s is two channel waveform generator in 3U case.
On multi-channel units each channel can be operated fully independently, or multiple channels can be linked using simple or complex relationships.
The TGA1200 series are highly sophisticated 12-bit arbitrary generators capable of recreating virtually any waveform.
Each channel can operate as a full DDS function generator. High quality sine, cosine, haversine, havercosine and square waves are
available between 1mHz and 16MHz (TGA124x) or 40MHz (TGA1210x). Triangle, ramp and sine(x)/x waveforms are available from 0.1mHz up to 100kHz.
Each channel can generate not just pulses but complex pulse trains.
Features
  • Frequency Range:
    • 0·1mHz - 16 MHz (sine,square);
    • 0.1mHz - 100kHz (triangle, ramps, sinx/x)
  • Output Impedence: 50 Ohm
  • Sweep continuos, triggered, linear o logarithmic
  • Amplitude: 5mV - 20Vpp (open circuit)
  • Modulations: AM and SCM (Suppressed Carrier Modulation)
  • GPIB and RS232
  • Max. Frequency: 16 MHz
  • Min. Frequency: 0.1 mHz
  • Max. Level: 20Vpp
  • Min. Level: 5mV
  • sweep: yes
