Wiltron Anritsu, 560-7S50-2

You are here: Network Analyzer » Sensor

Wiltron Anritsu, 560-7S50-2

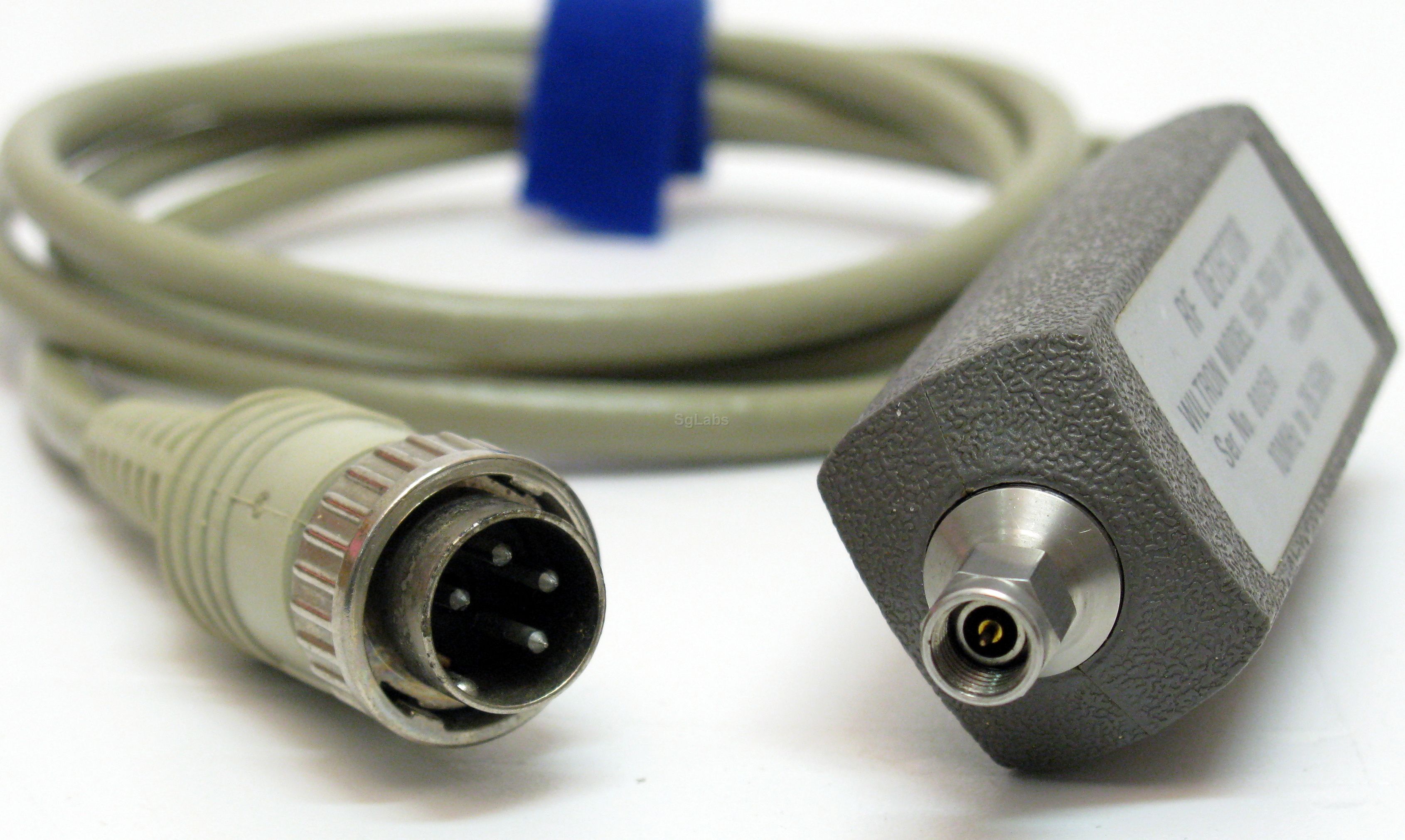

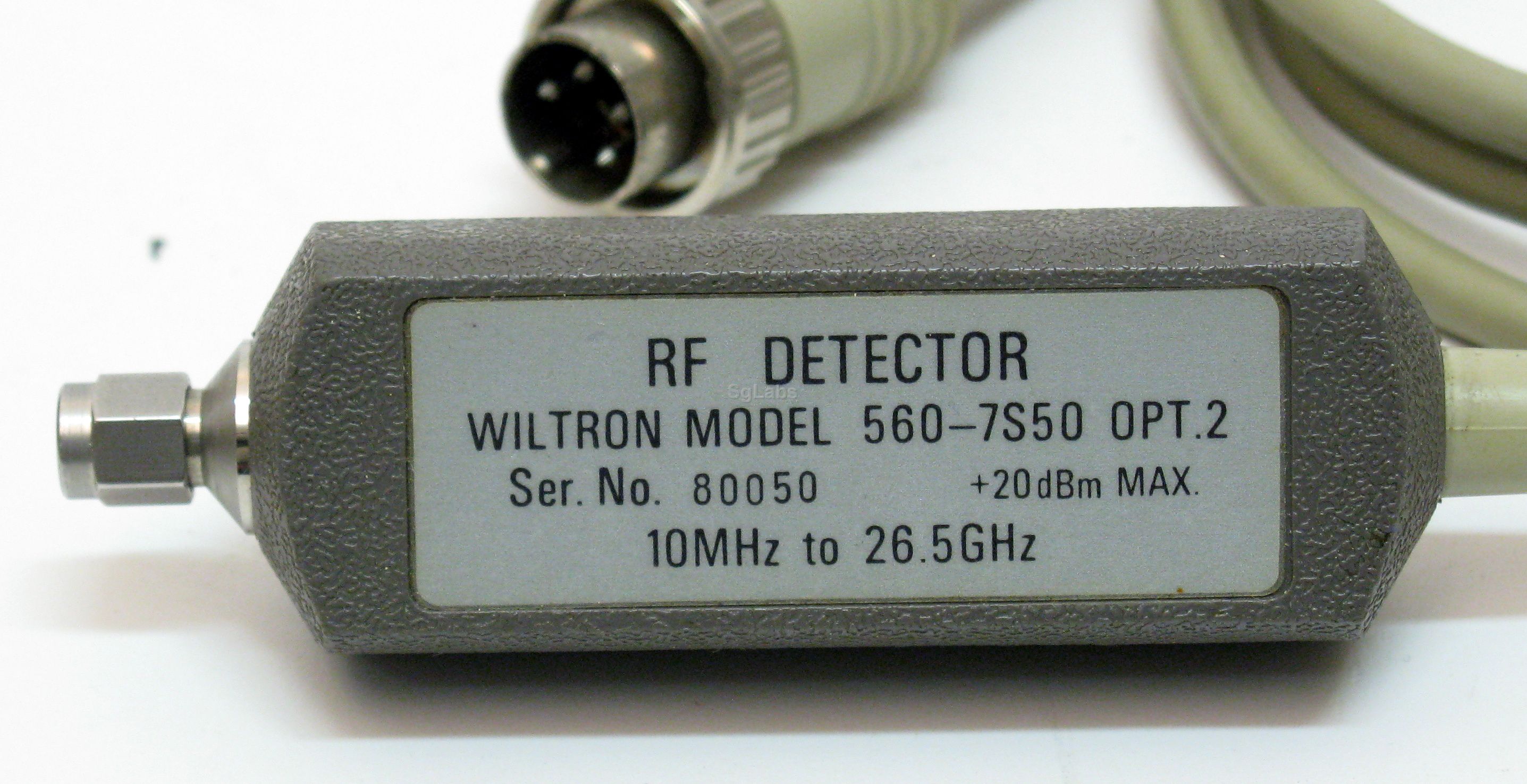

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Anritsu (formerly Wiltron) 560-7 and 5400-71 Series RF Detectors are used with the Model 56100A Scalar Network Analyzer and with Series 54100A Scalar Measurement System for making coaxial transmission loss or gain and power measurements. They are also used with the Site Master® and Cable Mate® Series Personal SWR/RL and Fault Location Testers for making power measurements.
Features
  • Zero-biased Schottky diodes
  • -55 dBm to +16 dBm range
  • Frequency Range: 0.01 to 26.5 GHz
  • Impedance: 50 Ohms
  • Return Loss: 15 dB,
  • Input Connector: WSMA(m)
  • Frequency Response: ±0.5 dB,
  • Max. Frequency: 10 MHz
  • Min. Frequency: 26.5 GHz
Price
 € 250,00
