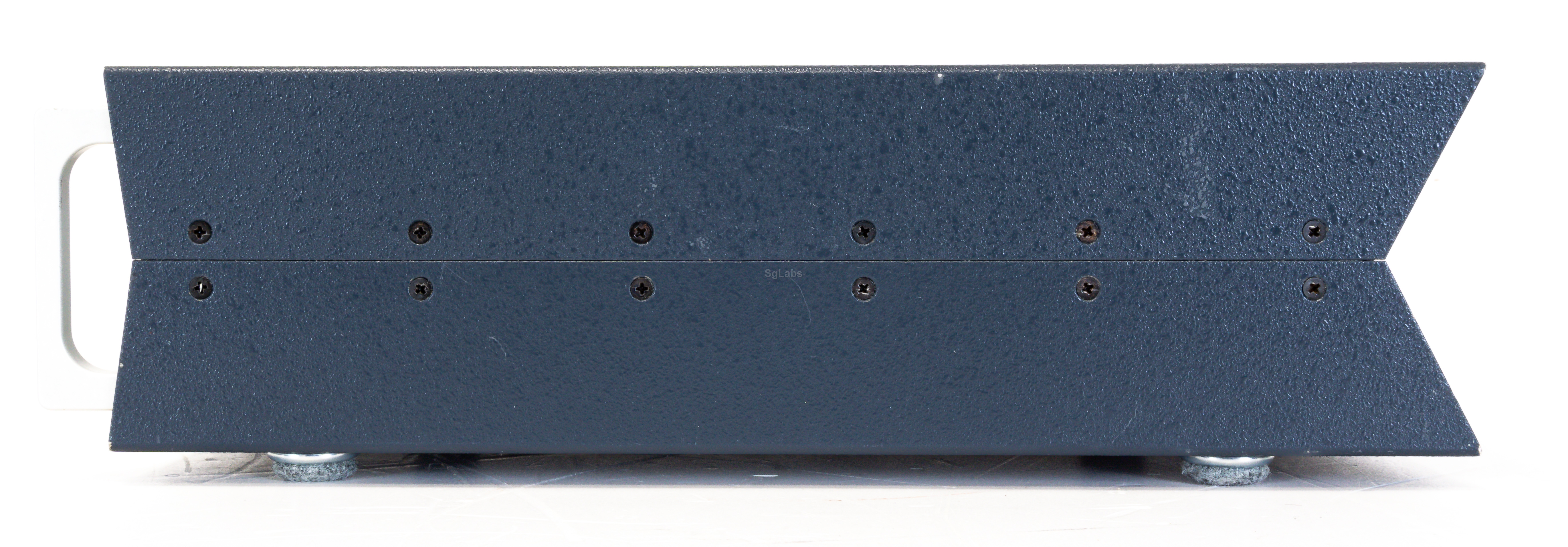

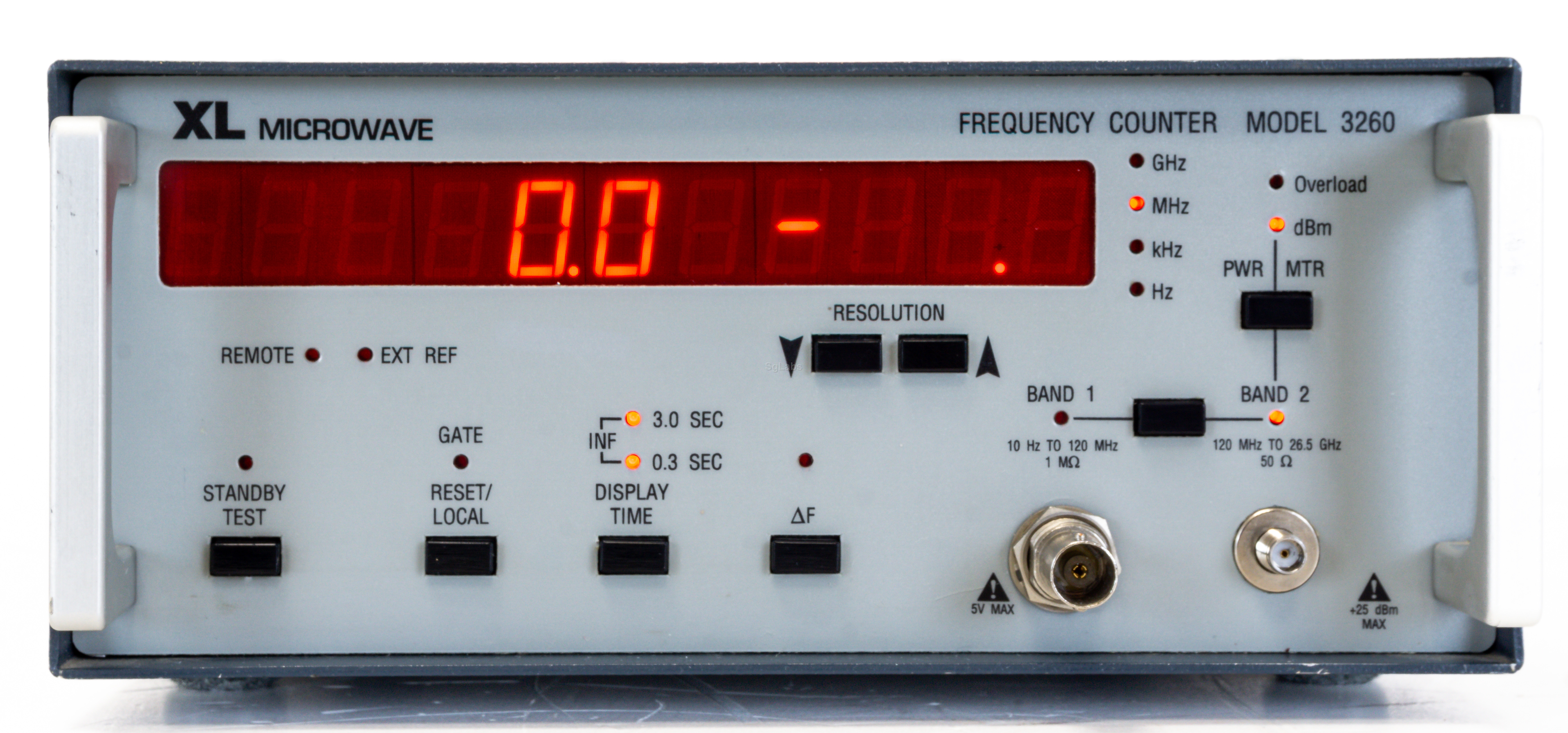

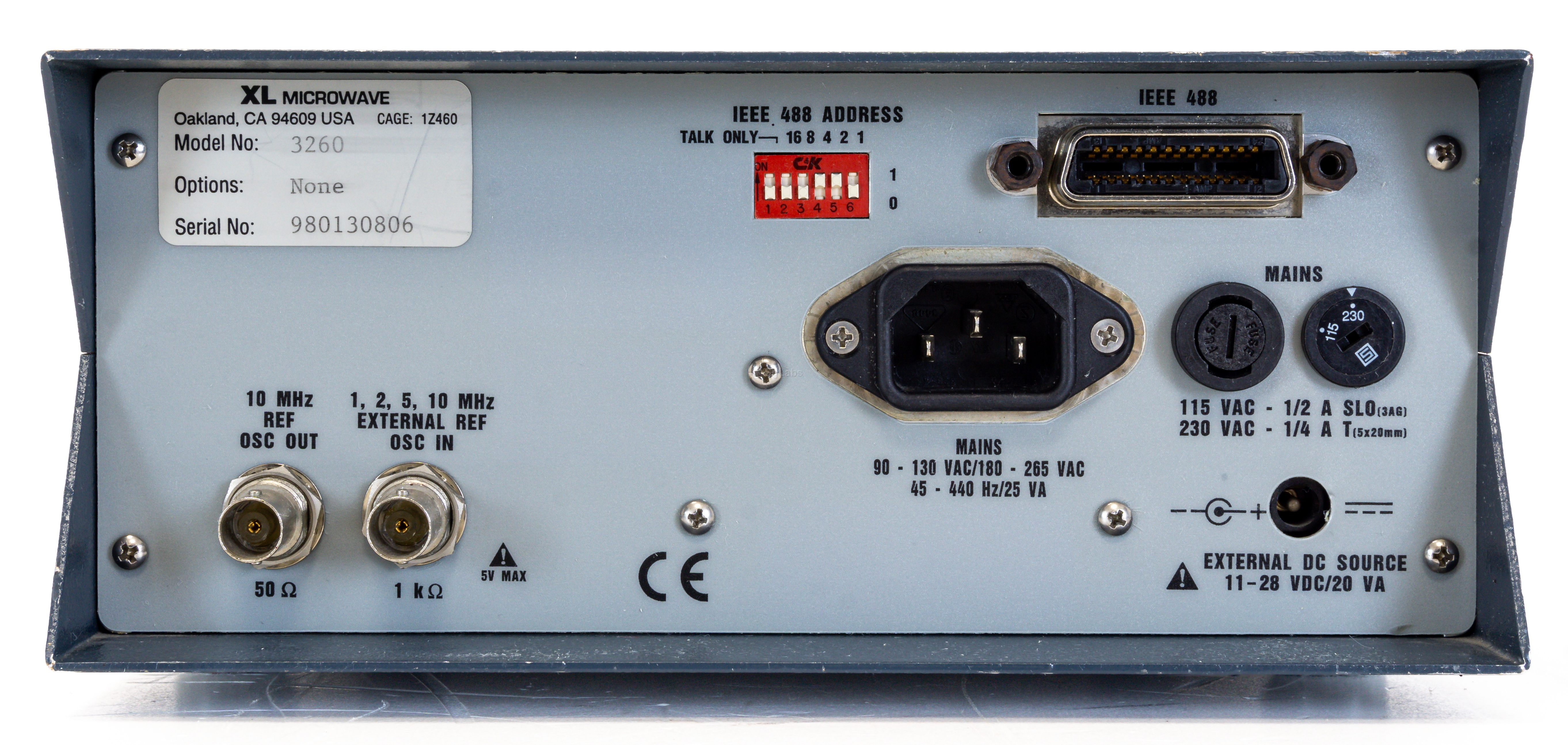

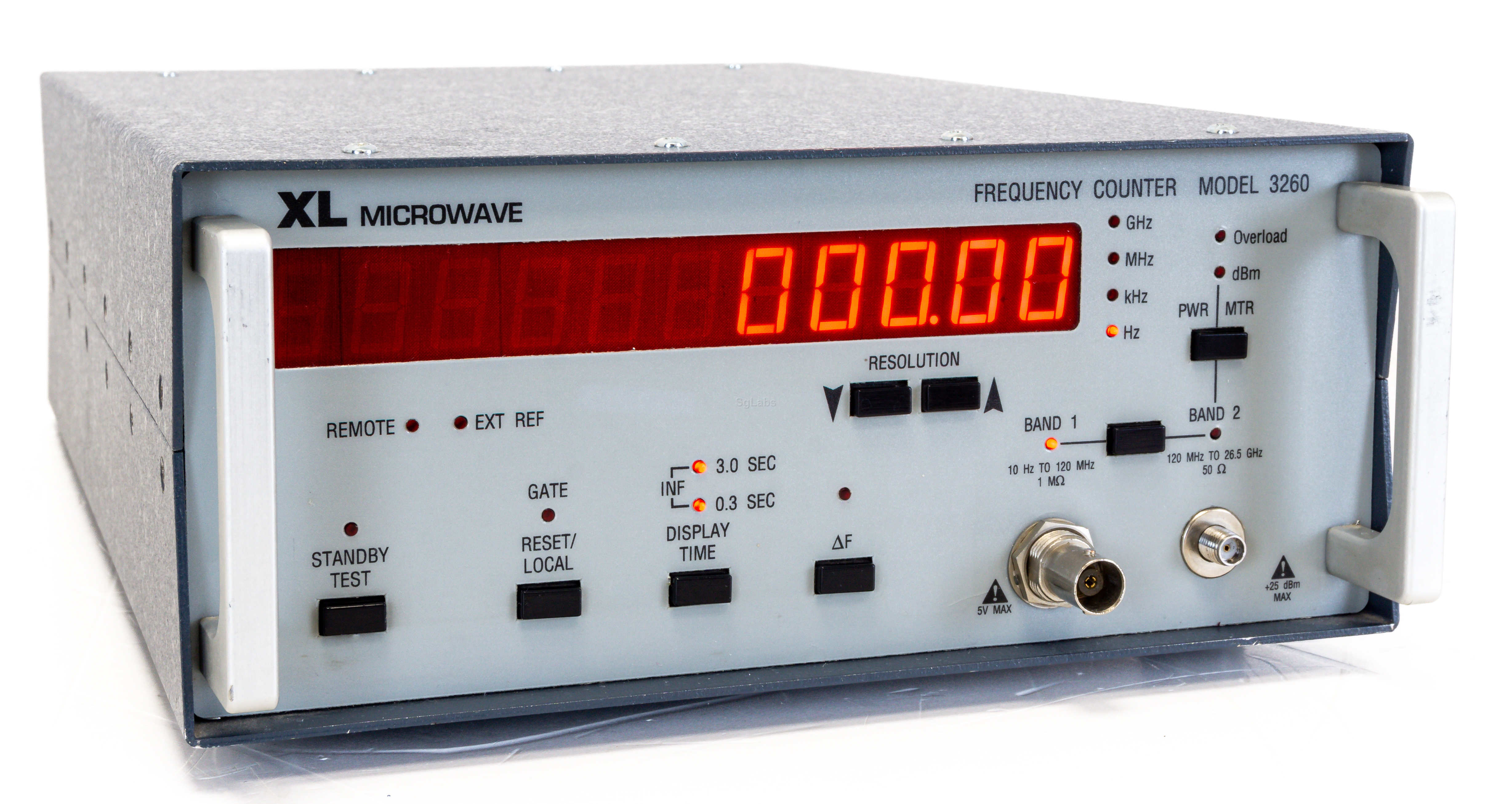

XL Microwave 3260 Microwave Frequency Counter 26.5 GHz
You are here: Frequency Counter » > 18 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
XL Microwave manufactures a number of CW (continuous wave) Microwave and Millimeter Wave Frequency counters (to 60 GHz, model dependent), with built-in Power Meter. These rugged light-weight instruments combine high-performance, reliability, durability, and small size. Frequency measurement extends from 10 Hz to the end of the model bandwidth and provides 0.01 Hz resolution of signals below 40 MHz. Simultaneous frequency and power measurements span 120 MHz (or 200 MHz) to the end of the model bandwidth using a single coax input…no wave-guides, external mixers, or power sensors required!
Features
- High sensitivity
- Fast acquisition time (
- Single input for simultaneous Frequency and Power measurement
- GPIB
- 0.5 inch high-intensity LED display (visible in all lighting conditions)
- Max. Frequency: 26.5 GHz
- Min. Frequency: 10 Hz
- Channels: 2
- Digit: 11
Price
€ 750,00
