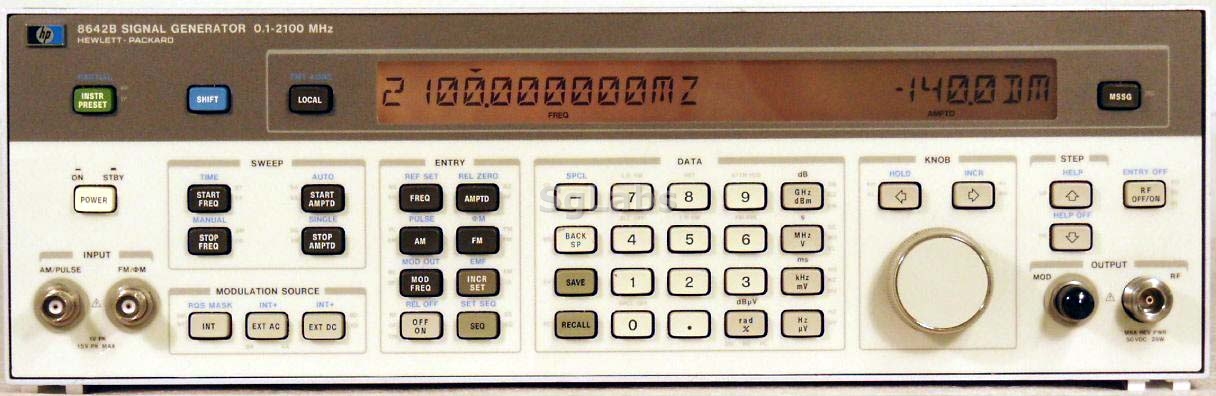

HP Agilent Keysight, 8642B

Sei in: GENERATORI RF » Digitale

HP Agilent Keysight, 8642B
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The Keysight 8642B synthesized signal generator is a high-performance, programmable signal generator for demanding out-of-channel RF receiver measurements and other stringent RF applications. It covers the frequency range from 100 kHz to 2115 MHz. This signal generator provides low SSB phase noise and spurious, high output level and level accuracy, and a full range of modulation types. The low-distortion internal modulation oscillator can be used to modulate the Keysight 8642B up to 100 kHz rates. This internal oscillator can also be used as an independent audio source with variable rates and levels.
Caratteristiche
  • < -134 dBc/Hz SSB phase noise at 20 kHz offsets at 1 GHz.
  • -100 dBc nonharmonic spurious allows spurious rejection tests to be fully automated with confidence
  • ±1 dB absolute output level accuracy down to -127 dBm
  • Up to +20 dBm output level reduces the need for external amplifiers
  • AM, FM, phase and pulse modulation
  • Up to 100 kHz modulation rates with low-distortion internal oscillator
  • Frequenza massima: 2115 MHz
  • Frequenza minima: 100 KHz
  • Modulazioni: AM-MF-PM
  • Potenza uscita massima: da 16 dBm a 20 dBm a seconda della frequenza
  • Potenza uscita minima: -140 dBm
