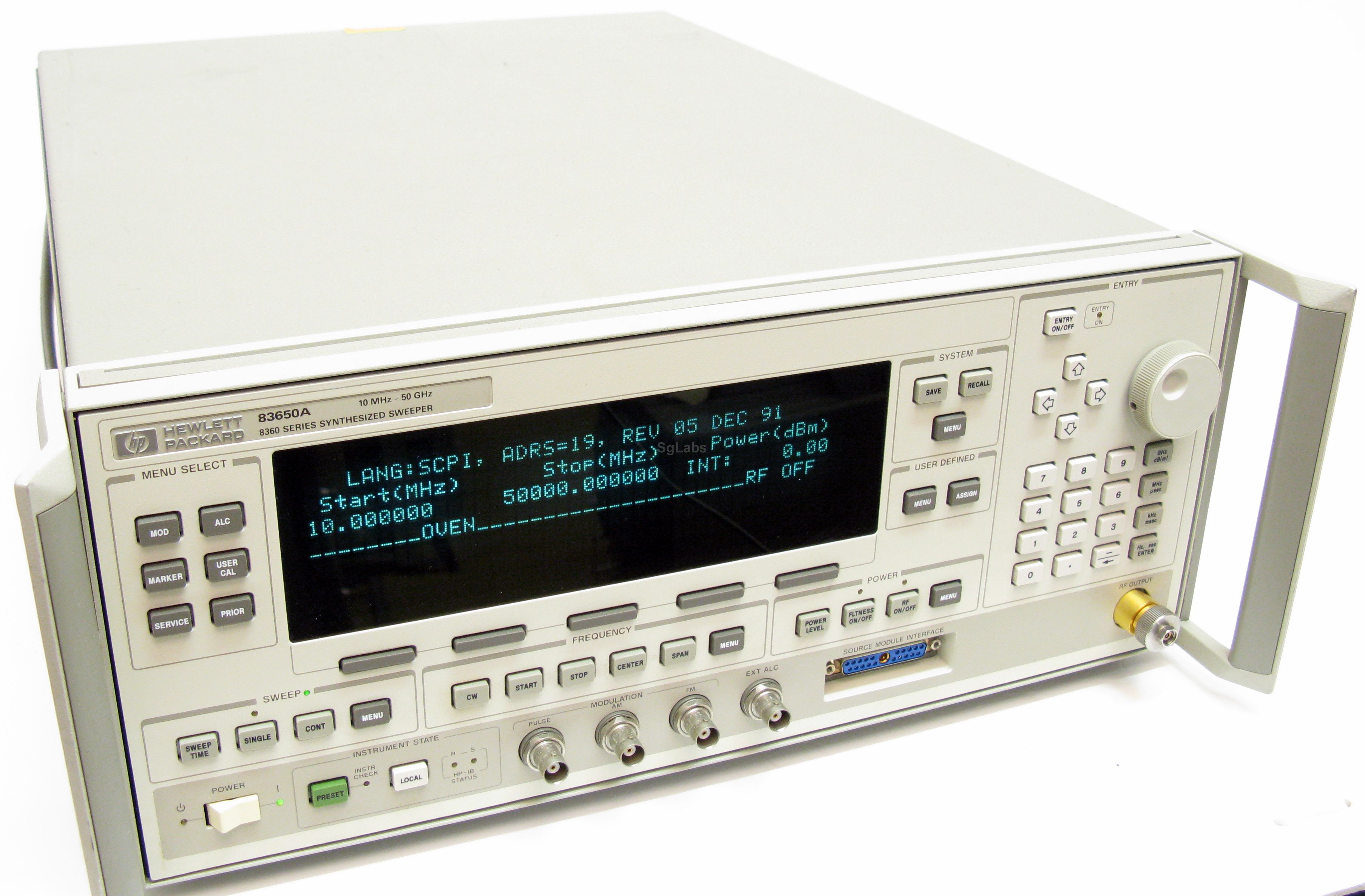

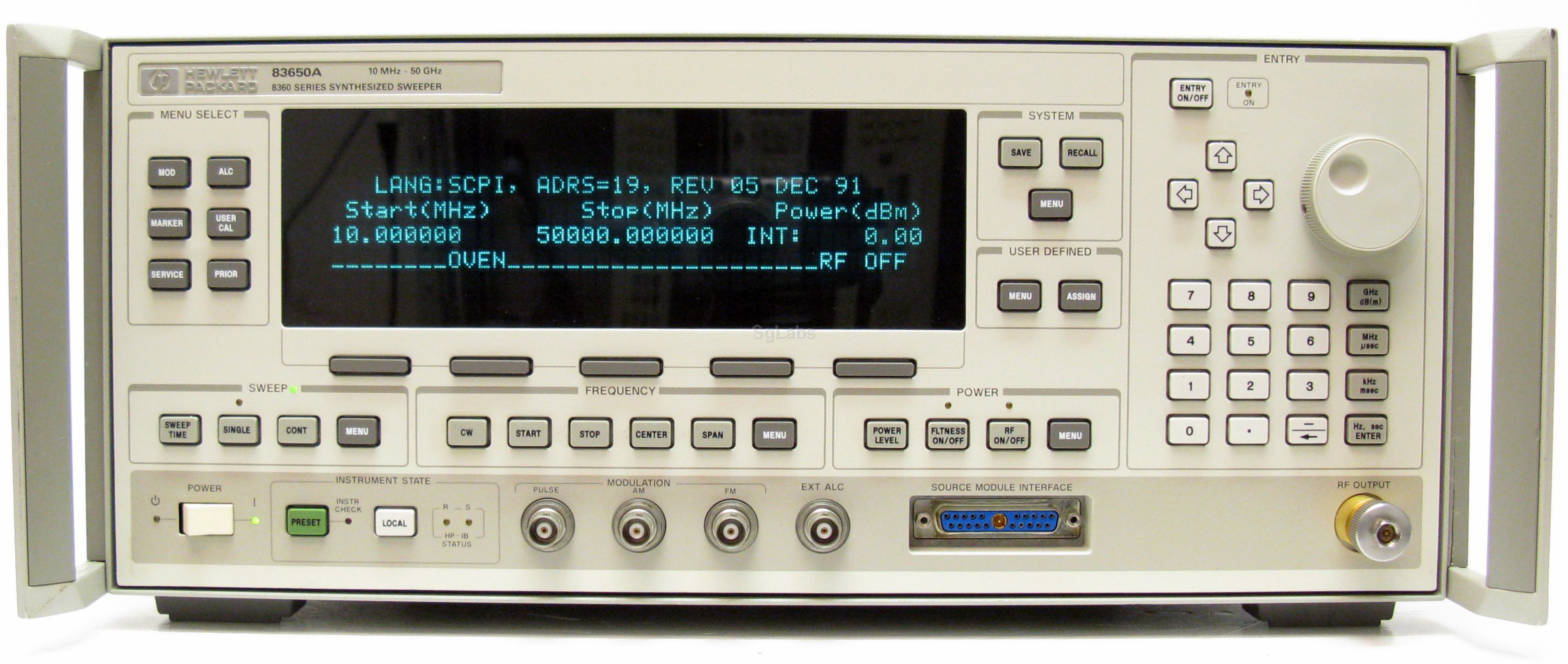

HP Agilent Keysight, 83650A
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The HP8360 series synthesized sweepers are the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1Hz frequency resolution(Option008) are generated by indirect synthesis, enabling the HP 8360 to achieve low single sideband phase noise performance. The HP8360 delivers excellent harmonic performance with harmonics at least 50dB below the carrier from 2.2 to 20GHz, and at least 35dB below the carrier above 20GHz.
Caratteristiche
  • Scan modulation to simulate antenna scan patterns
  • Accurate fixed and swept frequency offset for two-tone measurement
  • User flatness correction for leveling at remote points in the test system
  • General purpose source for use in component test, receiver test and for frequency conversion
  • Sweep Modes: Step, List, Ramp
  • Maximum Power: +10 dBm
  • Maximum Power: +5 dBm >26.5 GHz
  • Maximum Power: +2.5 dBm >40 GHz
  • Power Sweep Range: -20 dBm to maximum power
  • Phase Noise (50 GHz at 10 KHz): -68 dBc
  • Max FM Deviation (locked): +/- 8 MHz
  • Frequenza massima: 50 GHz
  • Frequenza minima: 10 MHz
  • Potenza massima: 10 dBm < 26 GHz, 2.5 dBm > 40 GHz
  • Potenza uscita minima: -20 dBm, opt 001 -120 dBm
  • Risoluzione: 1 kHz, 1Hz con opt 008
