HP Agilent Keysight, 10811E

Sei in: PARTI DI RICAMBIO » HP Agilent

HP Agilent Keysight, 10811E
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
Oscillatore Locale 10 MHz 30V Alta Stabilità
parte di ricambio 10811-60126

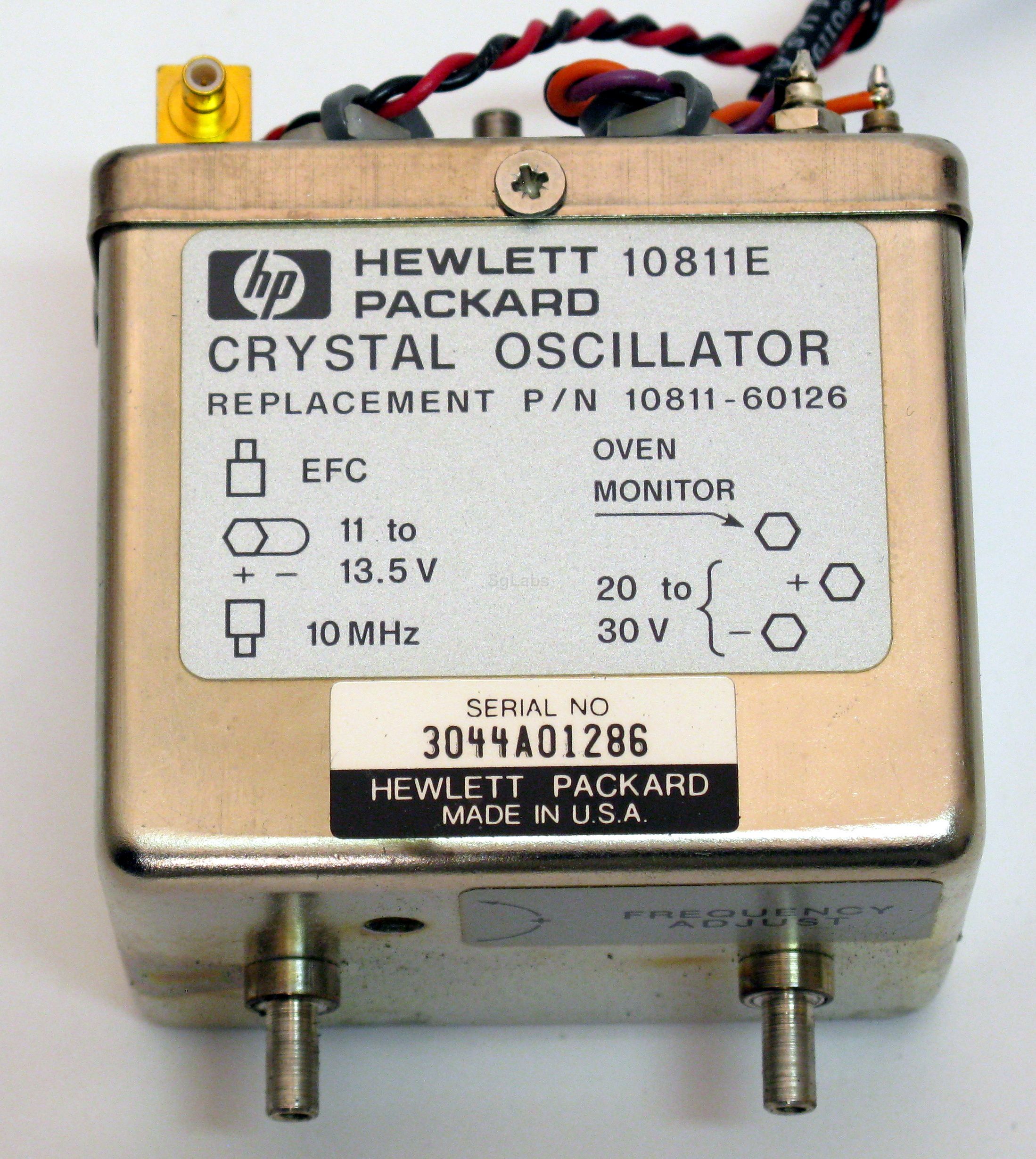

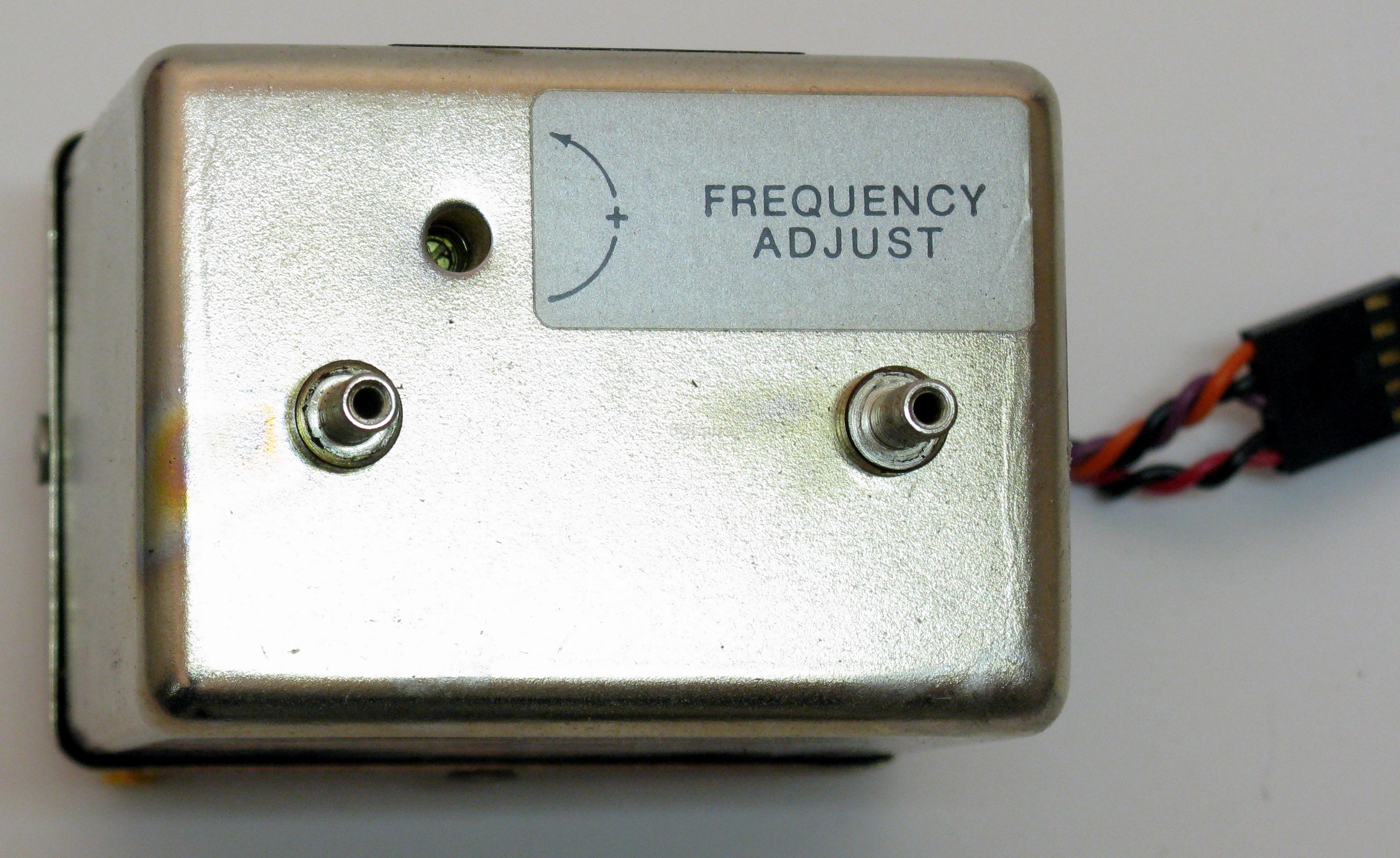

The Keysight 10811E crystal oscillator is an oven-controlled, high-performance component oscillator. It offers unmatched quality, low cost, and excellent reliability. The low aging rate and fast warm-up time reduce maintenance costs and downtime, while low power consumption ensures longer battery backup time. The oscillator's low phase noise ensures lower overall system phase noise for your communication, navigation, and instrumentation applications.

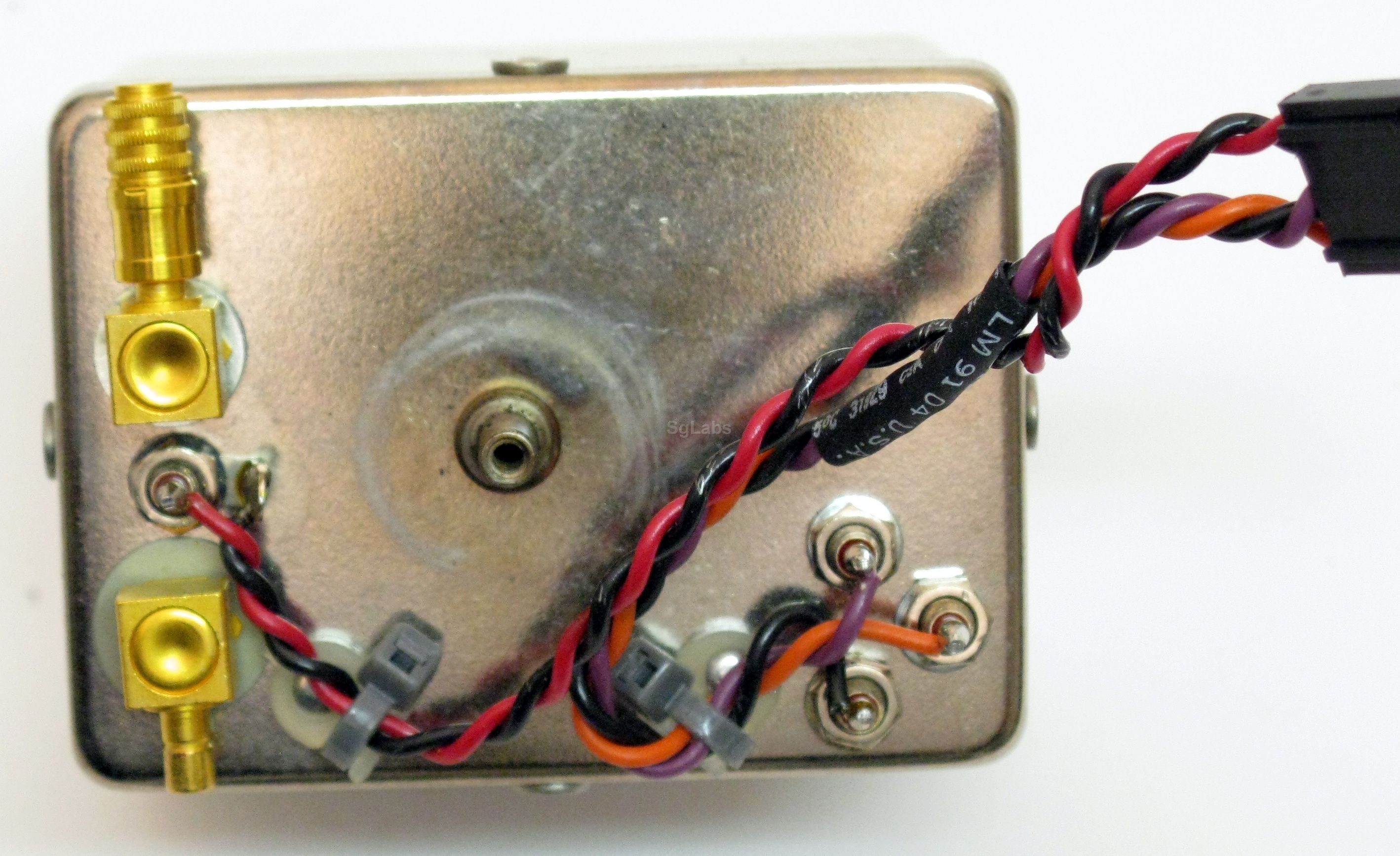

The 10811E uses filter feedthrough terminals for the power connections and oven monitor, as well as SMB snap-on RF connectors for the 10 MHz output and EFC input. The 10811E also has one stud on the bottom cover and two on the top, which allows it to be isolated from shock or vibration.


Caratteristiche

Products using part 10811-60126
  • 85106D
  • 85108L
  • 85301A-E95
  • 85301A-S57
  • 85301B
  • 85301C
  • 8671B
  • 8673B
  • 8673D
  • 8673H
  • 86792A
  • E7340A
  • E7345A
  • E7346A
  • E7350A
  • E7355A
  • E7356A
  • 83623A
  • Dove utilizzato: 83623A
  • Strumento di provenieza: 83623A
